MaxOut tech RF-RDWS-319-NN Installation Instructions

RF-RDWS-319-NN Installation Instructions
Description
The Recessed Door/Window Sensor is a
supervised, wireless sensor that detects the
opening and closing of doors or windows. The
sensor and magnet are recessed mounted
into the frame.
When activated, the sensor transmits an open
(trip) or close (restore) signal to the panel.
These are the signals the unit provides:
supervisory and low battery (as needed). The
sensor is powered by (1) replaceable 3-VDC,
lithium battery.
Mounting the Sensor
Verify mounting location before drilling
•
any holes, the area must be able to
accept an 11/16" hole to a depth of 2
1/4" for the sensor and 5/8" for the
magnet
• The holes must be drilled directly
across from each other to ensure the
magnet and sensor operate properly
Using an 11/16" drill bit drill the hole
•
for the magnet first, after drilling the
magnet hole mark the location directly
across for the sensor hole.
• The magnet and sensor are slightly
larger than the drilled hole to ensure a
snug fit, a small amount of routing the
hole may be required
Push both magnet and sensor into
•
mounting holes
Programming
The following steps describe the general
guidelines for programming the sensor into
panel memory. Refer to the specific panel's
documentation for complete programming
details.
1. Set the panel to the program mode.
I-RF-RDWS-319-NN Rev.1 Aug. 2018

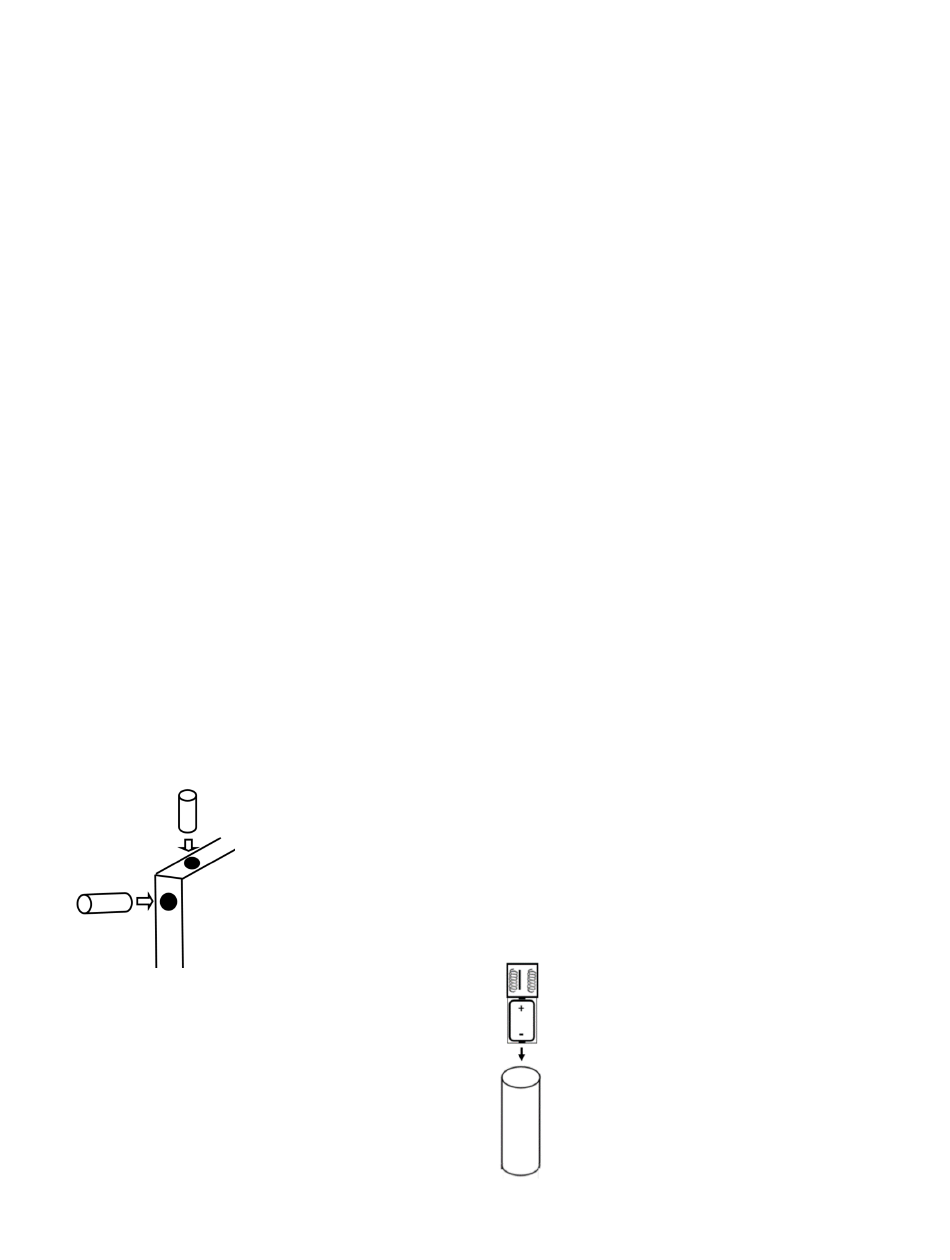

Mount in top or
side of door
2. Proceed to the SENSORS menu.
3. Select the appropriate sensor group and
sensor number assignments.
4. When prompted by the panel to trip the
sensor for learning:
• Remove the cap from the sensor by
using a screwdriver and twisting the
cap
Pull the battery tab out to power the
•
sensor
After the battery tab is pulled the
•
sensor will transmit "tampers" for the
first fives activations, the sensor
should be enrolled during one of these
first five trips. If the device is tripped
too many times before enrollment the
battery must be removed and re-
installed to activate the tamper trips
again.
5. Exit program mode.
Testing the Sensor
1. Set the panel to the sensor test mode.
2. Monitor the system after tripping the
sensor. Refer to the specific panel
documentation for interpretation of the results
to ensure desired signal strength is achieved.
Note: If a low battery alarm occurs, replace
the battery within 7 days.
CAUTION: Battery may explode if mistreated.
Do not recharge, disassemble or dispose of in
fire.
Battery Replacement
Remove the sensor cap and
•
carefully pull out the circuit board.
Push out the old battery towards
•
the antennas and replace with a
new battery.
• Carefully slide board back into
housing, note the slot for
alignment.
Replace the cap and activate the
•
device at least five times.
