RF-SHK-319-NN Wireless TOTAL Window Sensor
Description
The RF-SHK-319 is a wireless window
sensor designed for dual protection; open
and close and to detect vibrations made by
an intruder attempting to break a window.
The shock sensor contains a piezo
detection device that detects vibrations
when mounted on a window frame. The
detection circuit can be adjusted for
sensitivity during installation to ensure
maximum coverage. The device also has a
built-in reed switch to monitor the open and
close of the door or window.
When activated, the sensor transmits a
signal to the control panel. These are the
signals the unit provides: supervisory,
tamper and low battery (as needed). The
sensor is powered by (2) replaceable 3-
VDC, lithium coin-cell batteries.
Installation Guidelines
• Mounting the sensor on metal can affect
the transmitting range performance.
Therefore, test the sensor from the desired
location using the installer sensor test,
before permanently mounting it.
• Mount the sensor within 100 ft. of the
panel.

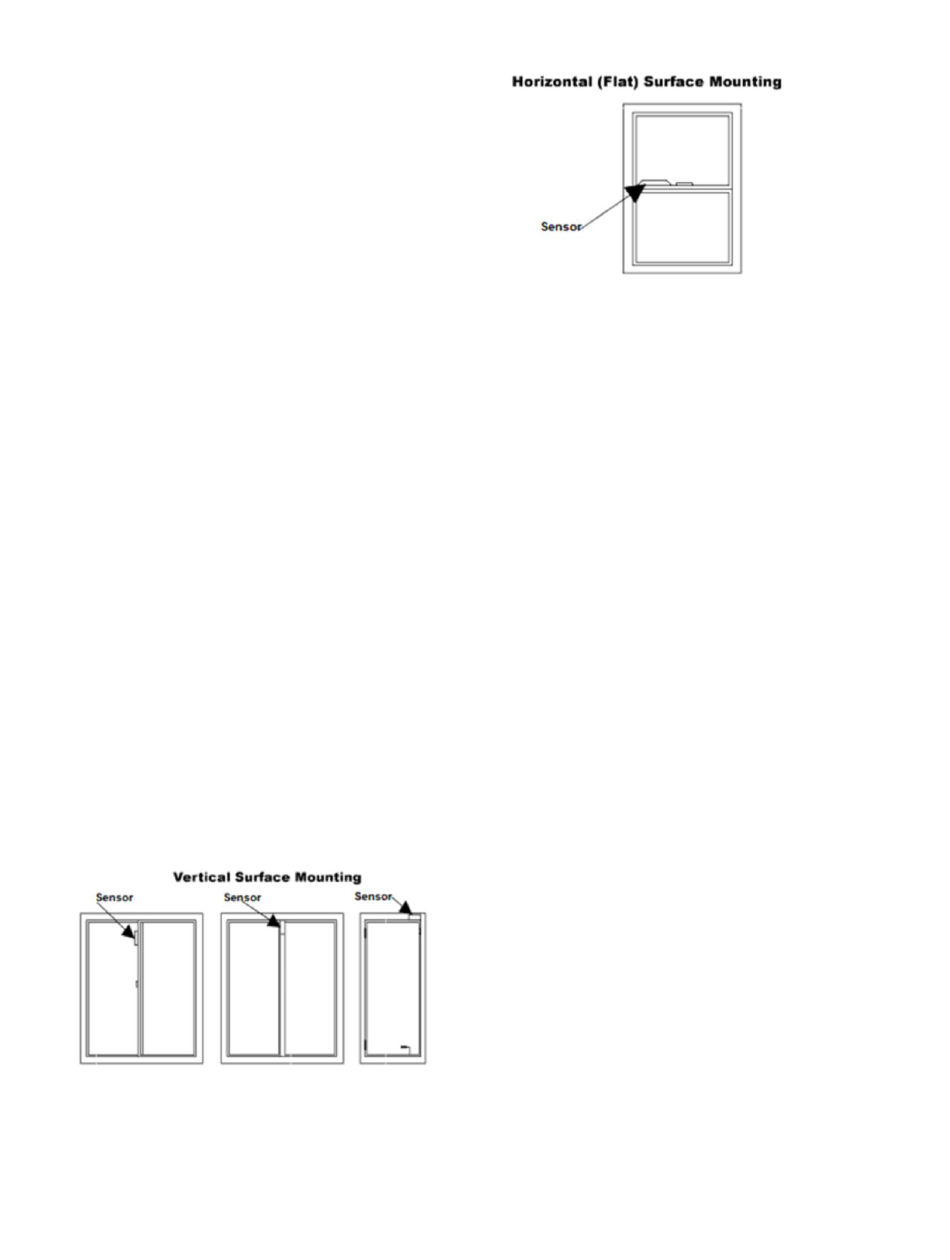

• Mount the sensor on the frame of the door
or window.
I-RF-SHK-319 Rev.3 Oct. 2020 For updated Installation Manual Revision go to MaxoutTech.com and select Documentation page
• The sensors can be mounted to either
wood or metallic surfaces.
• After mounting the sensor, test the sensor
using the procedure in the section "Testing
the Sensor".
Mounting the Sensor
Mount the sensor using the supplied
mounting screws for permanent mounting
installations or using the supplied double-
sided tape is optional.
Note: The gap between the sensor and
magnet should not exceed a maximum of
3/8".
Mounting Screws
1. Remove the sensor base from the
sensor.
2. Place the sensor base in desired location
and mount the base with the supplied
screws. Attach the sensor to the base.
3. Mount the magnet into the desired
location using the supplied screw and lock
washer, making sure the alignment mark
lines up with the sensor mark.
Double-Sided Tape
1. Before applying double-sided tape,
ensure that the desired location is a smooth,
clean and dry surface.
Note: When applying the double-sided tape,
evenly apply pressure to ensure a good
surface contact.
