enphase PRELIMINARY IQ Meter Collar Quick Install Manual

QU I C K I N STA LL G U I DE

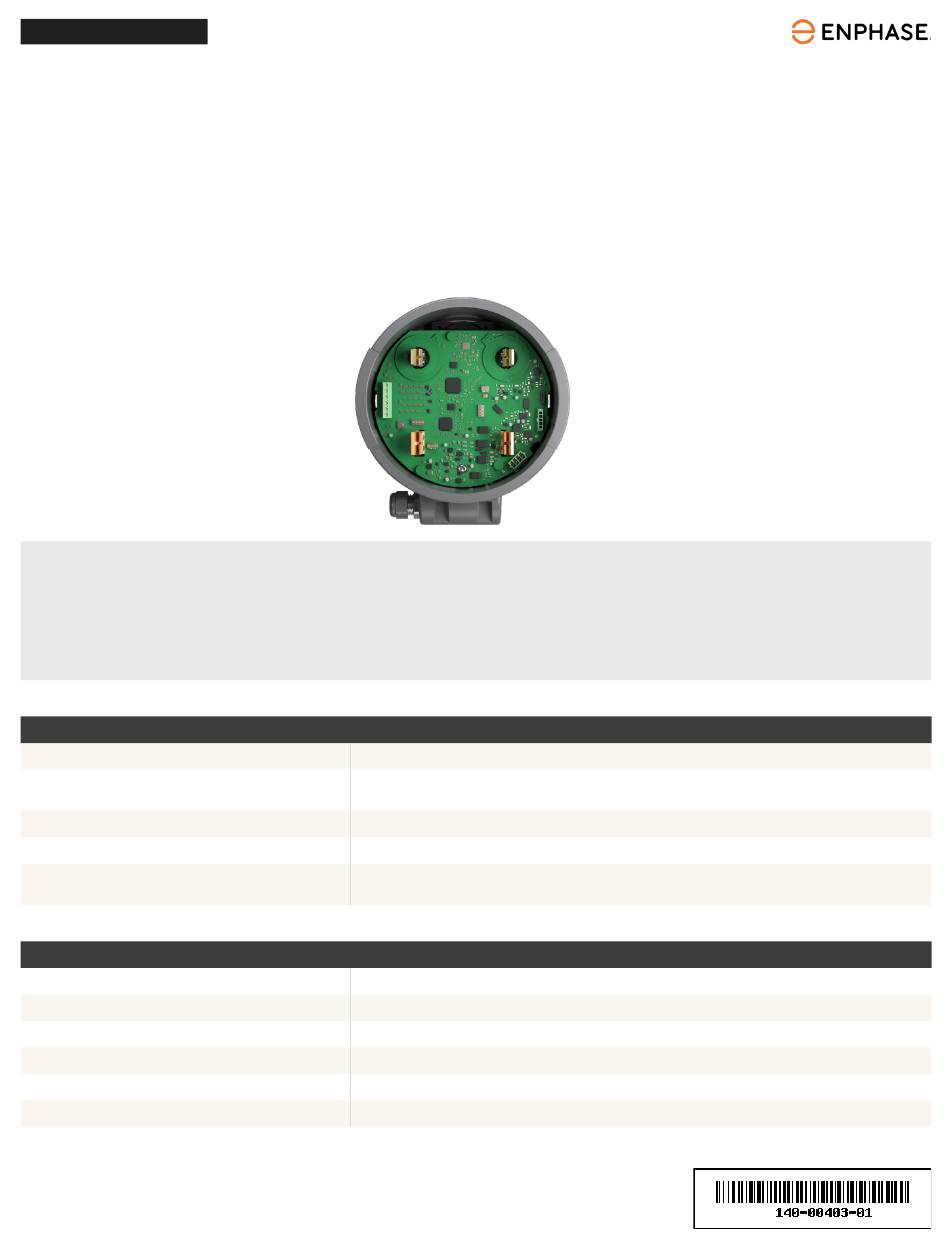

Installing the IQ Meter Collar
IQ Meter Collar is a meter socket adapter with an integrated microgrid interconnection device (MID) and metering. It is installed on an ANSI C12 Form 2S meter
socket. IQ Meter Collar is rated for use in 200 A meter sockets. It can be installed either at the building service entrance
between an ANSI C12 Form 2S utility meter and the meter socket (see configuration 1) or on the load side of the utility service (see configuration 2A for whole home
back and configuration 2B for partial home backup).
IQ Meter Collar can be used for grid-interactive (grid-tied) as well as multi-mode (grid-forming) installations. In grid-interactive installations, the IQ Meter Collar
is used as a consumption metering device, and additional Consumption CTs are not required. In grid-forming installations, the IQ Meter Collar provides both con-
sumption metering and grid isolation to enable microgrid formation.
The IQ Meter Collar is compatible with 3
also compatible with 4 generation Enphase Energy Systems comprising IQ Battery 10C and IQ Combiner 6/6C.
th
✓
NOTES:
• Do not install the IQ Meter Collar with IQ System Controllers 2, 3, or 3G.
• If you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, refer to a qualified electrician or installer.
• These installation instructions are not meant to be a complete explanation of a renewable energy system.
• All installations must comply with national and local electrical codes.
What's in the box
I T E M
IQ Meter Collar
Seal ring
Plastic bag
Quick install guide (QIG)
Accessories kit
Electrical specifications
S P E C I F I C AT I O N
Nominal AC voltage
Nominal frequency
Integrated net-consumption meter
Maximum continuous current rating
Maximum short circuit current withstand
Maximum overcurrent protection device
1 Short circuit current limited by an external, load side, overcurrent protection device.
1
rd generation Enphase Energy Systems comprising of IQ Battery 5P, IQ Combiner 5/5C, and IQ System Controller 3M. It is
D E S C R I P T I O N
Meter collar adapter with Microgrid Interconnect Device (MID)
Seal ring to secure the meter in place and prevent tampering or unauthorized removal of the
meter
Plastic bag for installers to hang the IQ Meter Collar next to the utility meter
Quick install guide
One control connector; one junction box sub-assembly; one cable gland, 1/2" NPT (national
pipe taper thread)
120/240 VAC/180°
60 Hz
0.5% accurate
200 A
22 kA
1
200 A
