Silhouette CAMEO PRO MK II User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Silhouette Cutting machine
User's Manual
MANUAL NO. CAMEO PRO MK-II-UM-151

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAMEO PRO MK II and is the answer not in the manual?

Questions and answers

Related Manuals for Silhouette CAMEO PRO MK II

Summary of Contents for Silhouette CAMEO PRO MK II

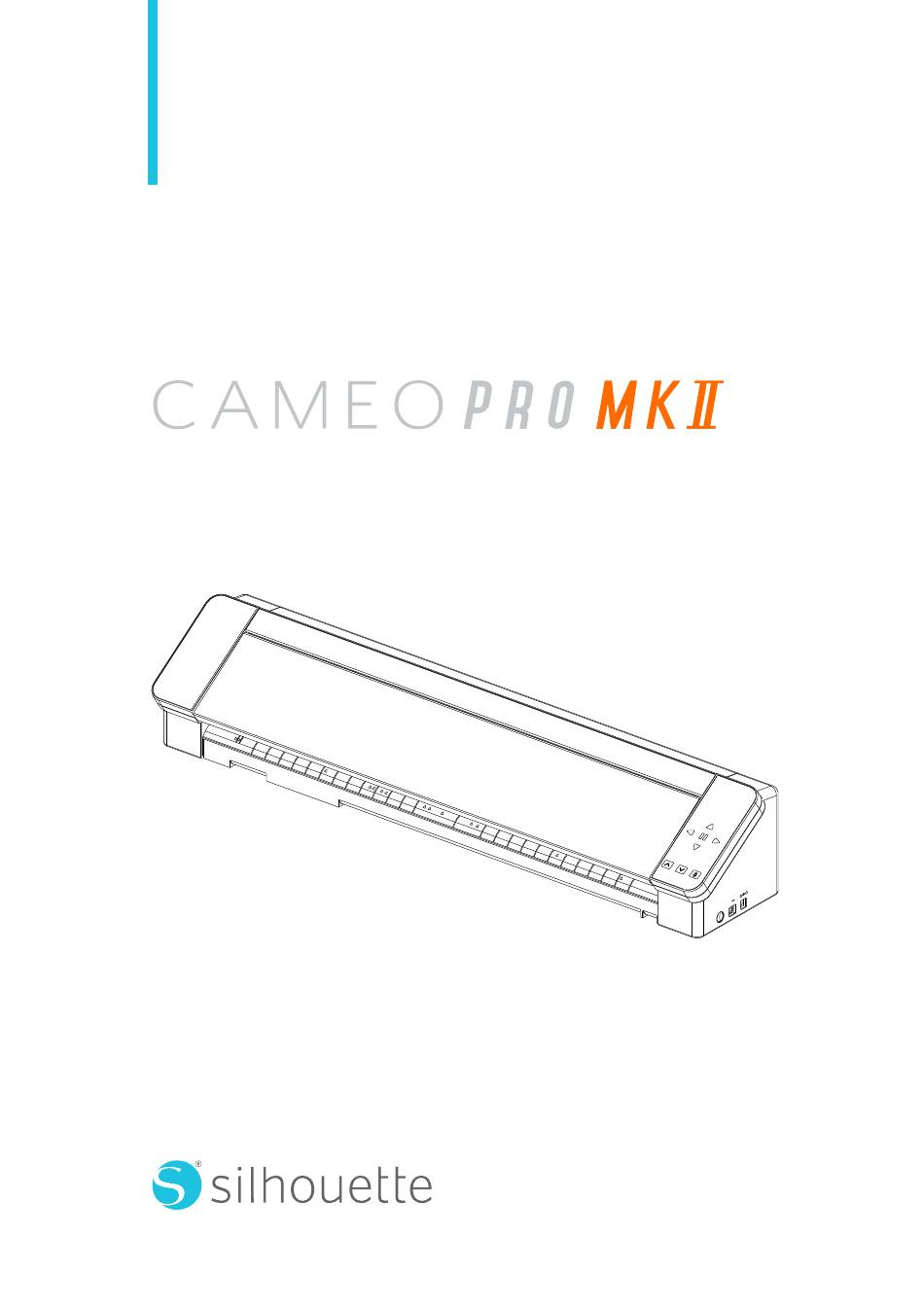

  • Page 1 Silhouette Cutting machine User's Manual MANUAL NO. CAMEO PRO MK-II-UM-151...

  • Page 2: About The Display Screen

    Thank you for choosing Silhouette CAMEO PRO MK-II. Silhouette CAMEO PRO MK-II is a cutting machine suitable for cutting the following sizes (width): 5 in., A4, Letter, 9 in., 8.5-in. mat, A3, 12 in., 12-in. mat, 15 in., and 15-in. Mat, 20 in., 24 in., and 24-in. mat..

  • Page 3: Table Of Contents

    Install the software (Silhouette Studio) ........
  • Page 4 For Mac ............... 25 Check the connection with Silhouette CAMEO PRO MK-II ......26 Connect with Bluetooth .
  • Page 5 Silhouette sketch adapter ........

  • Page 6: Before Using This Machine, Please Read This Manual

    Before using this machine, please read this manual. Before using this machine, please read this manual. Handling Precautions To use the product correctly, as well as to obtain better cutting results, be sure to read the following points thoroughly before use. Note To avoid bodily injury, handle blades with care.

  • Page 7: Available Functions

    Available functions Size of the media that can be loaded The following media sizes can be loaded for Silhouette CAMEO PRO MK-II. • 5 in., A4, Letter, 9 in., A3, 12 in., 15 in., 20 in., 24 in. • Cutting mat (8.5 in. width, 12 in. width, 15 in. width, 24 in. width) For media of non-standard size and without a release paper, paste them on the cutting mat before loading.
  • Page 8 Available functions Standard-sized media with a release paper can be loaded directly. Load media of non-standard size and those without a release paper using the cutting mat. Cutting mat: Not used Cutting mat: Used • Standard size (width): A4, Letter, A3, 12 in., 15 in., 20 in., 24 in.

  • Page 9: Cut Images

    Available functions Cut images The following cut images can be created from Silhouette CAMEO PRO MK-II. Half-cut Die cut (cut out) Cut the top media. Do not cut the release paper. Cut all media. Do not cut the mat. 1. Paper 1.

  • Page 10: Intelligent Path Technology

    Since paper shift is less likely to occur, users can stack and cut multiple sheets of paper or cut thin papers more beautifully than normally. * This can be used to select the Silhouette Studio check box. 1. More 2. Intelligent Path Technology For example, this function is effective for cutting multiple sheets for the following design.

  • Page 11: Additional Accessory

    Stable media feeding enables support for roll media of approximately 5 m, making it possible to effectively cut large posters and so on. Additionally, aligning roll media guides with the machine media guides prevents media from slanting. For details, refer to the "Silhouette Stand" supplies manual.

  • Page 12: Preparation

    The Silhouette CAMEO PRO MK-II come with accessories shown in the following list. Make sure all the accessories are included when unpacking. If any item is missing, promptly contact the distributor where you purchased it or Silhouette America Customer Center.

  • Page 13: Removing Packaging Materials From The Machine

    01 Preparation Removing packaging materials from the machine There are strips of tape and cushions to hold the moving parts of Silhouette CAMEO PRO MK-II in place during shipment and prevent any damage to the machine. Remove all of the packaging materials (strips of tape and cushions).
  • Page 14 01 Preparation Remove the strips of (blue) tape and cushions (4 pieces) that hold the Tool Carriage in place. After removing cushion (2), move the Tool Carriage slightly to the right, and remove the remaining cushions (3), (4) and (5). 2.

  • Page 15: Name And Functions Of Each Component

    01 Preparation Name and functions of each component Silhouette CAMEO PRO MK-II 1 Power Button : Switches the power on or off. Press the button for more than 2 seconds to turn it on. Emergency Stop Button : When the Power Button is pressed during the cutting operation, the operation stops immediately.
  • Page 16 01 Preparation 7 Pinch Roller : Roller to feed the media. 8 Pinch Roller Unit : Roller unit to feed the media. The pinch roller unit on the right side determines the position based on the media size, lowers the lever, and secures it. 9 Guiding Line : Guiding line to align the left side of the media or cutting mat.

  • Page 17: Operations

    01 Preparation Operations 1 Position Key : Used to move the Tool Carriage and media position. Press and hold down the key to move the Tool Carriage faster. 2 Pause Button : Used to pause/resume cutting operation. If you want to cancel the paused cutting operation, press and hold the Pause Button. 3 Media Load Button : Used to load the media or cancel the media loading preparation state.
  • Page 18 01 Preparation 1. Roll Feeder (used to load roll paper) 2. Media support (used to load cutting paper and cutting mats)

  • Page 19: Create An Account

    Create your Silhouette account You can create your Silhouette account for free. A Silhouette account allows you to register the Silhouette machine, and you can use the same account on SilhouetteAmerica.com, SilhouetteDesignStore.com, and as a shared account for the Silhouette Studio library.
  • Page 20 Enter your name, email address, email address (retype), password, password (retype), language, currency, and timezone. If you do not want to receive newsletters (English) from Silhouette, unselect the check box of "Send me newsletters..." Select the check boxes of "I agree to the privacy policy", "I agree to the Terms & Conditions", and "I am over the age of 13".

  • Page 21: Register The Machine

    If your machine is registered, the following services are available. • You can download 100 designs included with the Silhouette Library for free. • A one-month trial subscription is available to download contents from the Silhouette Design Store free of charge.
  • Page 22 01 Preparation Click "Sign In". Enter the registered email address and password for your Silhouette account and then sign in.
  • Page 23 01 Preparation Enter the required information and click the "Continue" button. The serial number is marked on a sticker on the back of the machine as an 11-digit number starting with an alphabet. * Depending on the web browser, you may be required to click " " to confirm after selecting. Check the model to be registered and click "Register My Machine".
  • Page 24 (Silhouette Studio). After the machine registration, you will receive an email with details on the one-month free trial • subscription. For details, refer to "Use trial subscription in Silhouette Design Store". Exit the screen.

  • Page 25: Install The Software (Silhouette Studio)

    01 Preparation Install the software (Silhouette Studio) The explanation for the software can be found by accessing the Silhouette America.com website after "Create an account". After registering the Silhouette machine in use, download the software from the download page (https://www.silhouetteamerica.com/software) and use it.

  • Page 26: Check The Connection With Silhouette Cameo Pro Mk-Ii

    /www.silhouetteamerica.com/software Check the connection with Silhouette CAMEO PRO MK-II You can choose to connect Silhouette CAMEO PRO MK-II to the computer using a USB cable or wireless connection with Bluetooth. Connect it according to the usage environment. Connect with Bluetooth Silhouette CAMEO PRO MK-II has a built-in Bluetooth adapter that allows wireless connection with your computer.
  • Page 27 Open the "SEND" tab of Silhouette Studio, and click the "Silhouette Devices" icon. Select "CAMEO PRO MK-II" from the displayed device list, and the software will start syncing. The setup is completed when the Silhouette CAMEO PRO MK-II status is displayed as "Ready" or "Media Not Loaded" on the "SEND" panel.

  • Page 28: Connect With The Usb Cable

    Connect the power cables in the (1) to (3) order shown in the figure below. Note Do not connect the USB cable before the power cable is connected. Connect the computer and Silhouette CAMEO PRO MK-II with the USB cable and press the Power Button to start Silhouette CAMEO PRO MK-II. 1. Power Button...

  • Page 29: Obtain Contents

    To register for the Silhouette account, click the link on the confirmation email you receive when you register the Silhouette account. If you do not activate your account, you will not be able to register the machine or access the Silhouette Design Store.
  • Page 30 01 Preparation Enter the registered email address and password for your Silhouette account and then sign in. Once the setup is completed, 100 free contents will be displayed in the LIBRARY. These contents will be displayed in the "CAMEO" folder in "Free with Machine".

  • Page 31: Use Trial Subscription In Silhouette Design Store

    After machine registration, a link will be sent to the email address you entered during your account registration for you to download the free contents. Press "Click Here" in the email. The "Sign In" screen for logging in to Silhouette Design Store appears. Enter the registered email address and password to sign in.
  • Page 32 01 Preparation The machine registration screen appears. Click "Continue" to view the "Claim your free trial subscription" screen. 1. CONTINUE Click "Next" when the trial subscription application page is displayed.
  • Page 33 01 Preparation Click "I don't have a credit card or PayPal account" at the bottom of the screen and click "Next". 1. I don't have a credit card or PayPal account Note If you start the trial subscription after registering your credit card, the basic subscription will automatically start after the trial ends, and your credit card will be charged monthly.
  • Page 34 01 Preparation When the trial subscription has been applied, the "SUCCESS!" screen appears. Additional information You will receive an email with the title "Your FREE Design Store Trial Subscription".

  • Page 35: Confirm Activation

    01 Preparation Confirm activation Click the "My Account" icon on the top right of the Silhouette Design Store screen. 1. My Account icon Click "Subscriptions" in the left tab of the "My Account" page. Check your subscription history and payment status in the My Subscription page.

  • Page 36: Confirm Credit

    You can check subscription transaction records in the Store credit and refund page. Launch software For Windows • Start Silhouette Studio by double-clicking the icon on the desktop or from the Start menu. For Mac • Open the Applications folder and start Silhouette Studio.

  • Page 37: Name And Functions Of Each Component

    Name and functions of each component (A) Menu bar • File : For creating new files, opening existing files, saving files, exiting Silhouette Studio, and so on. • Edit : For cutting, copying, pasting, and Preferences. The configuration of language and unit settings, initialization of Silhouette Studio, and other tasks can be done in Preferences.
  • Page 38 For details on each function of the design page, refer to "Help" and "User's Manual..." on the toolbar. STORE tab Access the Silhouette Design Store from the "STORE" tab when connected to the Internet to browse and purchase contents such as designs and fonts. LIBRARY tab You can access the designs saved in the library and the contents downloaded from the Silhouette Design Store from the "LIBRARY"...

  • Page 39: About The Store Tab (Silhouette Design Store)

    01 Preparation About the STORE tab (Silhouette Design Store) The Silhouette Design Store is a store that sells over 200,000 high-quality design items that can be used with cutting machines. In addition to designs for regular cuts, the store also offers a large variety of designs created by artists from all over the world, such as 3D data to facilitate the creation of three-dimensional pieces, fonts, designs for printing and cutting, and fill patterns.

  • Page 40: Configuring The Cutting Conditions

    Select the media to use from the pull-down list of cutting conditions. 1. Cutting conditions Once you select media from the list, the optimal cutting conditions for the media are automatically applied. When using materials other than Silhouette media, click "Add New Material Type" and manually set the cutting conditions.
  • Page 41 01 Preparation 1. SEND tab 2. Cutting conditions 3. Action 4. Tool Specify an action such as "Cut" or "Sketch" from the Action pull-down list. Specify the tool to use in the Tool pull-down list. If you want to manually set the cutting conditions, set the blade depth, speed, force, and passes. First, set the speed to slow and the force to low, and if it is not enough, gradually increase the setting.

  • Page 42: Guideline For Blade Depth And Media Materials

    01 Preparation Guideline for blade depth and media materials Blade depth Material types Thin materials, thin paper / films, and smooth iron-print materials 2 to 3 Medium thick paper (such as Kent paper), thick film, and flock iron-print materials 4 to 6 Thick paper such as scrap-booking materials 7 to 10 Thick paper such as cardboard...

  • Page 43: Auto Cross-Cutting

    01 Preparation Additional information In addition, this function is effective when cutting the following data. When cutting complicated designs • • When cutting sharp angles When the adhesive comes off easily, such as sealing materials • Auto cross-cutting If you use the auto cross-cutting function, the specified line on the media is automatically cut after cutting the design, and the design is separated from the media on the cutting machine.
  • Page 44 01 Preparation Select the "Auto Cross-Cutting" check box. Sets the cutting position for auto cross-cutting. 1. Cut position for auto cross-cutting Press the "SEND" button to start cutting. 1. SEND button...

  • Page 45: Repeat Job Function

    Press the flashing Media Load Button for approximately 3 seconds. Note • Repeat Job cannot be executed if the power was shut down after cutting or the connection was disconnected. The Repeat Job function is disabled when connected to Silhouette Auto Sheet Feeder (ASF). •...

  • Page 46: How To Use

    02 How to use How to use Perform test cut If cutting conditions, such as blade depth, force, and speed, are not appropriate, the blade tip may break, or the machine may be damaged. Furthermore, the expected cutting results may not be obtained, and the media may be wasted.

  • Page 47: Cutting With An Autoblade

    02 How to use Cutting with an AutoBlade There are two ways to feed paper when loading media. • If feeding paper automatically: When the media is loaded, paper is fed automatically. • If feeding paper manually: Paper is fed manually after loading the media. Changing the Pinch Roller Unit position Raise the Pinch Roller Unit lever, slide the Pinch Roller Unit according to the width of the loaded media, and lower the level to secure the Pinch Roller Unit.

  • Page 48: If Using Roll Paper

    02 How to use Move the Auxiliary Roller left and right, and set it at the position where the media may likely warp. 1. Auxiliary Roller If using roll paper Roll paper is used by setting a regular width size media on the included Roll Feeder. Roll feeder assembly Components and example of assemblage (media support parts are not used) Set the components on their installation positions at the bottom of the machine.

  • Page 49: Loading Roll Paper

    02 How to use Next, set part E so that it is enclosed between parts A and D. 1. You can make adjustments based on the roll paper size You can move the roller by matching the diameter of the roll paper you intend to use. The roller position can be adjusted to 3 positions.

  • Page 50: If Using Cutting Paper And A Cutting Mat

    02 How to use Align the left edge of the media with the Guiding Line on the inner side, butt the leading end of the media against the roller at the bottom of the rail, and load it straight. 1. Roll paper 2.
  • Page 51 02 How to use Next, set part E so that it is enclosed between parts A and D. Make adjustments by moving the center media support part C and roll feeder part B to match the size of the cutting paper to be used. 1.

  • Page 52: Loading Cutting Paper And Cutting Mat (8.5 In., 12 In., 15 In.)

    02 How to use Loading cutting paper and cutting mat (8.5 in., 12 in., 15 in.) Align the left edge of the media with the Guiding Line on the inner side, butt the leading end of the media against the roller at the bottom of the rail, and load it straight. 1.

  • Page 53: Load The Included 24 Inch-Cutting Mat

    02 How to use Load the included 24 inch-cutting mat Align the left edge of the cutting mat with the Guiding Line on the outer side, butt the leading end of the cutting mat against the roller at the bottom of the rail, and load it straight. 1.

  • Page 54: Load Media

    Be sure to use the cutting mat when cutting media that are out of standard sizes. Otherwise, it may damage the machine and the blade. Press and hold the Power Button for at least two seconds to start Silhouette CAMEO PRO MK-II. 1. Power Button Press the Media Load Button once before loading the media.
  • Page 55 02 How to use Align the left edge of the media with the Guiding Line on the front panel. 1. Guiding Line (other than the 24 inch-cutting mat) 2. Guiding Line (24 inch-cutting mat) Additional information " " symbols are engraved on the front panel for each media size. Align the "...
  • Page 56 02 How to use Butt the leading end of the media against the Pinch Rollers at the bottom of the rail and load it straight. When loading the media, pull it to the left and right with both hands to set them taut. 1.
  • Page 57 02 How to use When the media is loaded, the roller starts turning after about 3 seconds, and paper starts to be fed. 1. Media Load Button flashes when feeding paper Note • In "If loading automatically", the paper is fed automatically when loading the media. Keep your hands, hair, etc., away from movable parts (such as the rollers and carriage).

  • Page 58: If Loading Manually

    Depending on the media type and condition, if the media tend to warp or incline when using "If loading manually", load the media using "If loading automatically" instead. Press and hold the Power Button for at least two seconds to start Silhouette CAMEO PRO MK-II. 1. Power Button...
  • Page 59 02 How to use Align the left edge of the media with the Guiding Line on the front panel. 1. Guiding Line (other than the 24 inch-cutting mat) 2. Guiding Line (24 inch-cutting mat) Additional information " " symbols are engraved on the front panel for each media size. Align the "...
  • Page 60 02 How to use Butt the leading end of the media against the Pinch Rollers at the bottom of the rail and load it straight. Note When loading the media, pull it to the left and right with both hands to set them taut. 1.

  • Page 61: Setting The Autoblade

    To avoid bodily injury, handle cutter blades with care. You can use tools by setting them on the Tool Holder of Silhouette CAMEO PRO MK-II. The tools that can be set are tools marked with the number "1" on them and tool adapters.
  • Page 62 02 How to use Slowly pull the lock lever of the Tool Holder toward you to unlock it. 1. Unlock 2. Lock Lever Align the rib of the tool (AutoBlade) with the notch of the Tool Holder and insert it firmly. 1.

  • Page 63: Silhouette Sketch Adapter

    Insert the tool all the way and then lock it. If it is not inserted all the way, the media may not be cut properly. After setting the tool, Silhouette CAMEO PRO MK-II recognizes the tool and automatically displays the tool in the "SEND" tab of Silhouette Studio.

  • Page 64: Workflow From Simple Designing To Cutting

    The included Silhouette sketch adapter can only be loaded on Tool Holder 1 (left side). Workflow from simple designing to cutting This section describes the steps for using Silhouette Studio to create cutting data from simple figures and texts and to cut the media.

  • Page 65: Cutting Created Data

    Cut the created data using Silhouette CAMEO PRO MK-II. Load the media onto Silhouette CAMEO PRO MK-II. Click the "SEND" tab on the top right of the Silhouette Studio screen. The "Cut Setting Panel" is displayed. From the pull-down list of cutting conditions, select the cutting conditions, action, and tool according to the media to use.

  • Page 66: About Crosscutter Use

    02 How to use About Crosscutter use The Silhouette CAMEO PRO MK-II has a built-in Crosscutter Unit. The Crosscutter Unit is used to trim roll type and long media. 1. Crosscutter Unit Additional information When cross-cutting, adjust the media cut position beforehand.

  • Page 67: Basic Workflow Of Printing And Cutting

    Basic workflow of printing and cutting This section describes steps for using Silhouette Studio up to printing and cutting. There are the following three ways to create cut lines (contour lines). Using the Drawing Tool to create cut lines Use "Drawing Tool"...
  • Page 68 02 How to use Cut the printed media. Click the "SEND" tab on the top right of the Silhouette Studio screen. 1. Drawing Tool 2. SEND tab Note <How to add registration marks (alignment marks)> Do not place your design in the shaded area. It may cause registration mark scanning errors.

  • Page 69: Using The Auto Trace Function

    02 How to use The cut lines are displayed. Press the "SEND" button. It starts detecting the registration marks and then cutting once all marks are detected. 1. SEND button Using the auto trace function Select the "Auto trace" check box of the PNG file on the "Import" tab on the Preferences menu to create cut lines automatically when loading images.

  • Page 70: Loading And Tracing An Image File

    02 How to use Press the "SEND" button and start cutting after the cut lines are displayed. Additional information The auto trace function may not be available depending on the way the image is created. In such a case, trace the image using the steps described in "Loading and tracing an image file". Loading and tracing an image file Create cut lines using the image that you want to cut.
  • Page 71 02 How to use Under "Trace Preview", select "Solid Fill" or "Outline". Adjust the threshold value. To create cut lines around the whole image, select "Trace". To create cut lines only on the outer edge, select "Trace Outer Edge". <When Trace is selected> <When Trace Outer Edge is selected>...

  • Page 72: Troubleshooting

    03 Troubleshooting Troubleshooting This chapter describes what to do if problems occur with Silhouette CAMEO PRO MK-II. Please visit our website for information regarding issues and solutions other than those below. https://www.silhouetteamerica.com Reference In these cases Check page Does not enter...

  • Page 73: Unable To Load The Media Properly

    03 Troubleshooting Unable to load the media properly If the media cannot be loaded properly, check the following causes and solutions. The media does not enter properly, and they bend and warp If you are using rolled media, does the leading end tend to curl itself? •...

  • Page 74: Unable To Feed The Media Properly

    03 Troubleshooting Unable to feed the media properly If the media cannot be fed into the machine properly (for example, they slip out of the roller during cutting), check the following causes and solutions. The media move obliquely in the machine during cutting Are the media or the left side of the cutting mat aligned with the Guiding Line? •...

  • Page 75: The Media Slip Out Of The Pinch Roller

    03 Troubleshooting Are the leading end of the media cut at a right angle? • Place a ruler against the media, and cut the leading end straight and at a right angle using a cutter knife or similar tool. 1. Cut at a right angle or straight 2.

  • Page 76: Unable To Cut Properly

    03 Troubleshooting Unable to cut properly If the media, such as paper or film, peel off during cutting, or if you are unable to cut them properly, check the following causes and solutions. The film peels o during cutting Are the tools set correctly? •...
  • Page 77 03 Troubleshooting 1. Lock 2. Lock Lever Is the blade tip cap of the AutoBlade loose? • If the blade tip cap of the AutoBlade is loose, use the hand-held blade adjuster to retighten it. Note To avoid bodily injury, handle blades with care. 1.
  • Page 78 Is the cutter blade sticking out too much, or is the force too high? Is the speed (cutting speed) too fast? • Set the blade depth, force, and speed to smaller values in Silhouette Studio and perform a test cut.

  • Page 79: The Start And End Of The Cutting Operation Are Misaligned

    • Are you selecting a pen even though you are using an AutoBlade, or vice versa? Is the cutter blade sticking out too much, or is the force too high? • In Silhouette Studio, set the blade depth and force to a smaller value and perform a test cut.

  • Page 80: When Media Are Stuck

    The cut paper may also peel off and get stuck in the blade. Are the media you are using too thick? • Change the media to those with good thickness supported by Silhouette CAMEO PRO MK-II. Size of the media that can be cut: Film : Thickness of 0.1 mm or less (excluding high-intensity reflective film)

  • Page 81: The Media Are Cut Too Much

    The media are cut too much Is the cutter blade sticking out too much, or is the force too high? • In Silhouette Studio, set the blade depth and force to a smaller value and perform a test cut. 1. Blade Depth setting 2.

  • Page 82: Firmware Update

    The firmware is a control program that is built into the hardware. Firmware update requires Silhouette Studio. If a message for firmware update is displayed in the "SEND" panel of Silhouette Studio, follow the steps below to update it. Note Do not turn off...

  • Page 83: Information

    find any unclear or erroneous information or wish to make other comments or suggestions. (4) Notwithstanding the stipulations in the preceding paragraph, Silhouette Japan Corporation assumes no liability for damages resulting from the use of the information contained herein or the use of the product.
  • Page 84 Specifications are subject to change without notice. Silhouette CAMEO PRO MK-II User's Manual MANUAL NO. CAMEO PRO MK-II-UM-151 August 30, 2024 1st edition-01 www.silhouetteamerica.com ©2024 Silhouette America, Inc. 618 N 2000 W Lindon, UT 84042...
