Summary of Contents for Bosch Rexroth CS620

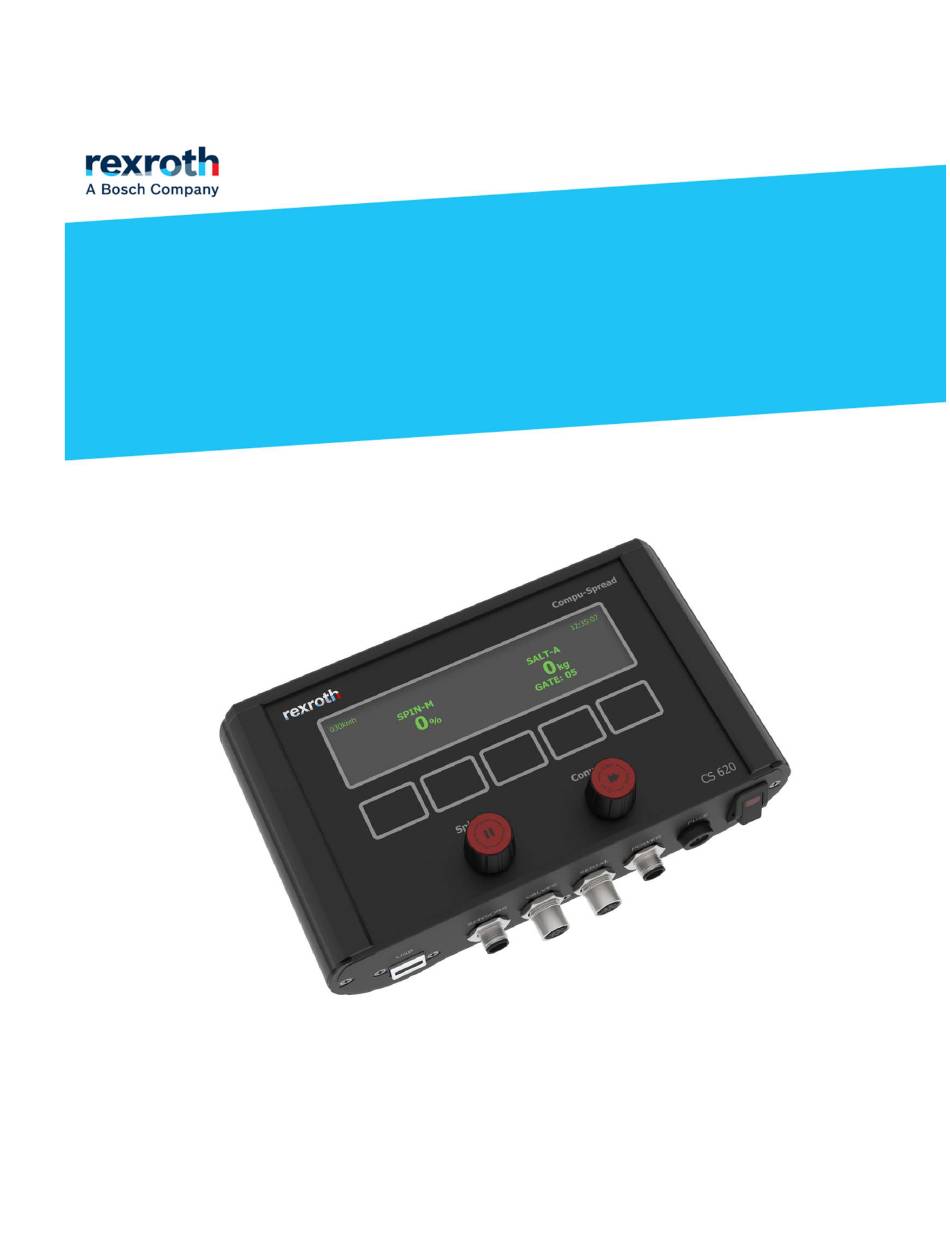

- Page 1 CS620 Spreader Controller User Manual...
-
Page 2: Table Of Contents
LOGGING REPORT ..........................16 Bosch Rexroth Canada Corp. reserves the right to revise this information at any time and for any reason and reserves the right to make changes at any time, without notice or obligation, to any of the information contained in this piece of literature. -
Page 3: Layout
LAYOUT CS 620 is a two function programmable controller, available in Manual, Closed or Open Loop mode, for the controlled application of granular solids in snow and ice control. Two Encoders with push buttons Power Switch Fuse Power Cable Power Switch USB Port Sensor Cable Valves Cable... -
Page 4: Main Menus
MAIN MENUS When the truck is stopped or no ground speed signal is coming in, the screen below will be shown: Solid material System clock Speed 0KMh 11:35:07 Conveyor mode SPIN‒M SALT‒C Spinner GATE: 05 TOTAL SETUP MISC XXXXX REVS Keypad functions Gate position Solid rate... -
Page 5: System Configuration
SYSTEM CONFIGURATION If the password is correct or program key is present, the setup screen will show on: * REGN: REGION BLST: 00X ALM: 88 UNIT: METRIC SPIN: S&P DI: N/A LOCK: P000000 MODE: STD DF: 150 TIME: 00:00:00 USER: M+G MD&Y: 00-00-00 LIQU: N/A RS: SUM... - Page 6 Blast Timer and Mode BLST: The first two digits of “BLST” are timer in unit of second and the last one digit is the mode of blasting. F --- Blast disabled C --- Blast at close loop with rate set at material screen. S --- 100% output even at zero ground speed X --- 100% output except at zero ground speed The default setting for blast timer is 60 seconds.
-
Page 7: Ground Speed Calibration
GROUND SPEED CALIBRATION There are two ways to do the speed calibration. If the resolution is known, just manually input the pulses per KM or Mile. The other way is to set up the predetermined speed as the speed that truck will run more often. Follow the hints on the screen and allow the system to finish the speed calibration by itself. -
Page 8: Hydraulic Valve Configuration
HYDRAULIC VALVE CONFIGURATION The left side of screen is to set up the valves configuration. * CONVEYOR 1 SALT MODE: AUTO BLAST: 0270 M99% SENSOR: 0050 RATE1: 0032 NULL: 15.0 60.0 WT/REV: 1.00 GAIN: 60% CAL GATE: 05 AUTONULL AUTOCAL PPAGE NPAGE START... -
Page 9: Material Configuration
Sensor Determine the number of pulses per revolution of conveyor when close mode is selected. During nulling or autonulling, this line will show the conveyor speed. Null 1. Press ENTER to null manually and it starts with minimal value immediately 2. -
Page 10: Material Calibration
Material Name Press ENTER allow to choose different solid material. CONVEYOR * 1 SALT MODE: AUTO BLAST: 0270 M99% SENSOR: 0050 RATE1: 0032 NULL: 15.0 60.0 WT/REV: 1.00 GAIN: 60% CAL GATE: 05 AUTONULL AUTOCAL NPAGE START SKIP FINSH Use up/down arrow to view each material’s settings and press FINSH to select the material. If CHG is pressed, system will start to edit the material name which is consist of 4 characters. -
Page 11: Data Saving/Loading/Displaying
After press FINSH, it will go to the page to input the material weight (has one decimal point) to calculate the WT/REV and the result will be displayed on the screen. CONVEYOR 1 SALT MODE: AUTO Measure material SENSOR: 0050 Enter Number NULL: 15.0 60.0 Wgt: 0000... - Page 12 Press RESET will go to clear the TRIP TOTALS, while SEASON TOTALS can only be cleared in the setup screen. Save parameters to USB Press DATA, insert program key and follow the hints on screen. Once “USB FOUND” appears, press SPARA will save all parameters on the USB with file name including region and truck names.
-
Page 13: Sub Menus
8.5 Save logging data to USB When truck is stopped, Press TOTAL first, then press DATA, insert log key and follow the hints on screen. Except save/load parameters between USB and controller, Press LOG can also save all spreading log on the USB with file name including region and truck names. - Page 14 0KMh 11:35:07 SPIN‒M SALT‒C GATE: 05 SETUP FINSH Change the gate value as required and press FINSH button to exit. Material change MAT is there, Press it to enter the screen of material change. 0KMh 11:35:07 SPIN‒M SALT‒C GATE: 05 SOLID STOP Press SOLID to change solid material.
-
Page 15: Error Message
0KMh 11:35:07 SPIN‒M SALT‒C GATE: 05 HIGH ENTER Press ENTER again to exit. ERROR MESSAGE The errors checked by system are listed below. 0KMh 11:35:07 SPIN‒M SALT‒C GATE: 05 SMSPD AIRGT Audible signal comes on for 4 seconds when an error occurs, then goes off. Some error code show on the screen first and come back on 3 minutes later if it is not resolved, while others stays on the screen until cycle power or resolved. -
Page 16: Unload
UNLOAD Press UNLD to unload and the text “UNLOADING” shows on the screen. (Note: The vehicle must be stationary.) 0KMh 11:35:07 SPIN‒M SALT‒C 10 % UNLOADING GATE: 05 UNLD Turn the dials until the desired speed is achieved. Press QUIT to exit unload mode. Moving the vehicle will suspend the unload process. -
Page 17: Pause/Blast
PAUSE/BLAST The two encoders for spinner and conveyor are also labelled as pause and blast knob. Press down the Pause to pause and press again to resume spreading. Besides, the “Boot-up pause” will appear if pause is pressed before power off. Press the Blast to increase the spreading output, and press again or wait for blast timer out to resume regular rate. - Page 18 Data Zone 15.2 Select Report All the logging data will be displayed in the data zone. It is also possible to select the logging data involving multiple trucks under a region. When selecting data, if option All Data is selected and no specific truck is selected, then all the trucks in that region will be used.
- Page 19 •To select start and end of the date and hours •Specific allows to choose records within a selected timing frame...
- Page 20 15.3 View Report The logging reports will be displayed on the sheet called “Report” by clicking on ‘Display Truck’ after choosing the criteria at the above section. For example, here you can select region “Toroto” and truck “TUCK03”. • Click Display Truck will go to Report Sheet...
- Page 21 15.4 Delete Truck Truck data or region can be cleaned by clicking “delete Truck”. Warning message will pop out to confirm the operation.
