Troyer's Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit
B
T
D
J
M
P
R
H
Pole Box
A
(1) Bottom of pole has a pre drilled hole (for safety bolt) 6 feet up from the bottom, (see circle).
B
(1) Center of Pole (has a square cut end and opposite has splice)
T
(1) Top of pole (has the slot for pulley at top, (shown), and an aluminum splice at opposite end).
C
(1) 48" heavy duty ground stake (aluminum)
D
(2) Aluminum perch rods 72".
Hub Box
E
(12) (18) (24) horizontal stainless gourd arms.
F
(1) Hub 18 (shown) or 12 or 24 unit
G
(1) Aluminum ball cap
H
(2) Winch mounting brackets (pre assembled with bolts and nuts).
J
(1) cable guide (pre assembled bracket, pulley and bolts with nuts)
K
(1) 7 x 19 x 3/16" stainless cable 32' with attached eyebolt and nut.
Hardware Bag
L
(12) (18) or (24) stainless hitch pins (to secure gourds on to the gourd arms).
M
(1) 4 inch pulley with 3/8" x 3-¾" bolt and 3/8" lock nut.
N
(4) 10 - 24 x 3/8" SS set screws (used with ball top)
P
(1) Stop pin with 2 attached hitch pins.
R
(1) Safety bolt with stainless steel hitch pin.
S
(1) Brake Winch with its own instruction/hardware bag.
The assembly of this gourd rack is identical whether you have a 12, 18, or 24 unit. The only dif-
ferences are the length of the hub and the number of gourd arms and hitch pins that are included.
© 1999-2023
Troyer's Birds' Paradise LLC 20785 Morris Rd, Conneautville, PA 16406
A
K
S

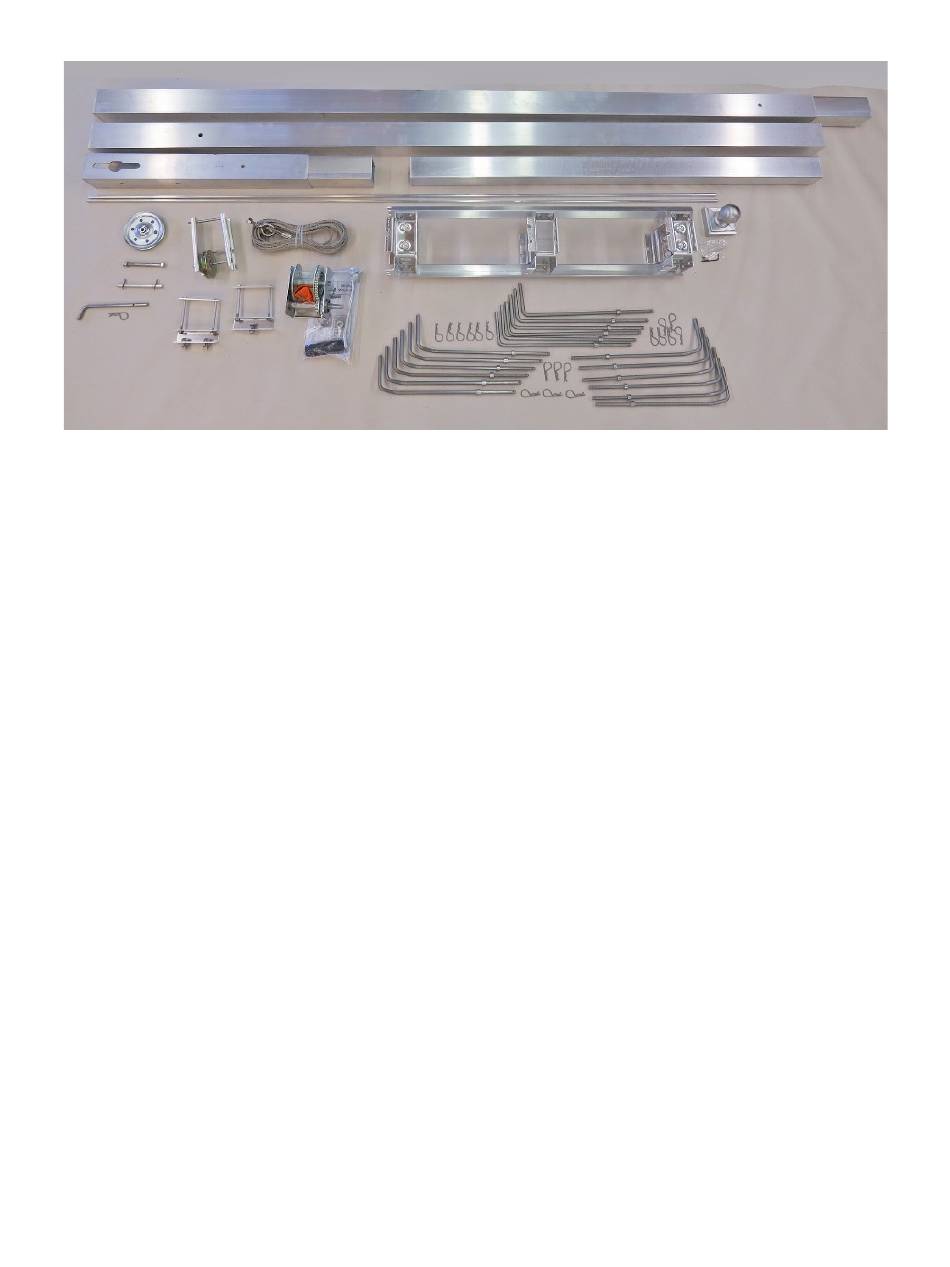

Parts List
C
F
E
L
814-587-2756
Updated: 01/23
G
N
Page 1
Advertisement
Related Manuals for Troyer's Birds' Paradise Ultimate-Deluxe K
Summary of Contents for Troyer's Birds' Paradise Ultimate-Deluxe K
- Page 1 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit Updated: 01/23 Parts List Pole Box (1) Bottom of pole has a pre drilled hole (for safety bolt) 6 feet up from the bottom, (see circle). (1) Center of Pole (has a square cut end and opposite has splice) (1) Top of pole (has the slot for pulley at top, (shown), and an aluminum splice at opposite end).
- Page 2 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit The installation of a ground stake is as vital as the foundation of your home. Both need to be done correctly in order to support the housing. Step 1) Installing the Ground Stake (C). Using a post hole digger, dig a hole with a minimum depth of 32-36”...
- Page 3 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit Step 9) Rotate the pole so that the pulley slot with notch is facing upward. Pick up your hub (F) and slide the hub over the pole. The hub needs to...
- Page 4 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit Step 11) Insert the stop pin found in your hard- ware bag (P). Remove 1 of the hitch pins from the pre assembled stop pin, insert into the hole below the pulley, and replace the hitch pin.
- Page 5 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit runs along the pole IN BETWEEN the installed glide the bracket to the inner hole on the winch. Insert buttons at both the top and bottom of hub. (See the bolt from the inside of the winch and attach photo step 14 on page 4).
- Page 6 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit Winch brackets are compatible with the Brake Winch or the optional upgrade, Worm Gear Winch. Step 21 Step 17 D of your mounted brake winch and slide this entire unit so that the brackets encase the pole. Replace...
- Page 7 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit Horizontal Step 22 Once the arms are on you can put your gourds onto the rods. Horizontal style arms are provided. If you are using other gourds such as a Super-...
- Page 8 Troyer’s Ultimate-Deluxe K Gourd Rack: 12, 18 or 24 Unit How to care for your rack. K 24H Due to the sheer size of this unit, you may wish to leave the pole up year round. can remove both the gourds and gourd arms for winter storage.
