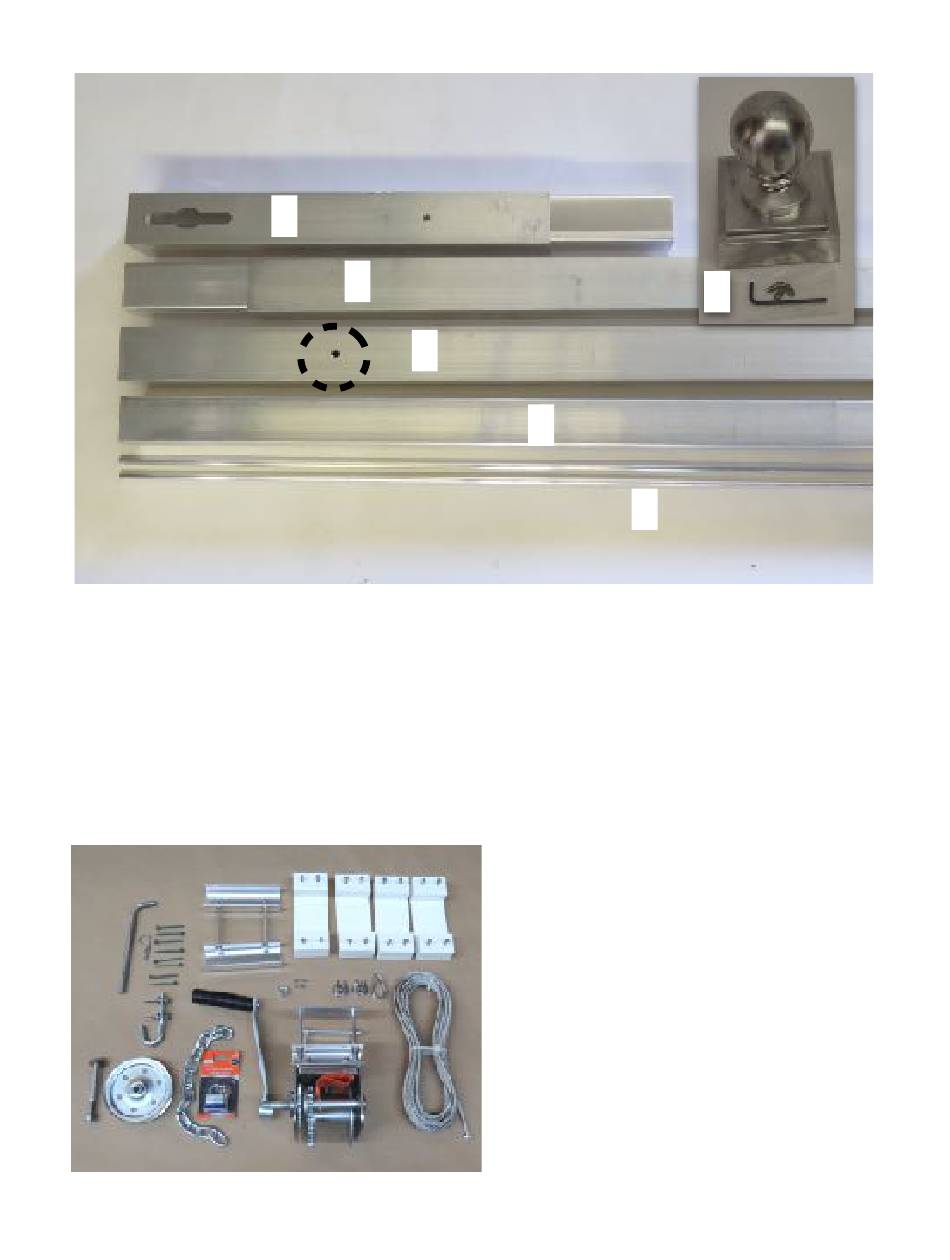

Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount
Pole
A
(1) Bottom of pole (has a drilled hole 6-feet up from the bottom, see circle)
B
(1) Center of pole (has the slot for the pulley at top, shown, and an aluminum splice at opposite
end)
T
(1) Top of Pole (One end square cut, opposite has splice
C
(1) 48" heavy duty aluminum ground stake with removable stop
D
(2) Aluminum top perch rods 72" long
E
(1) Ball top with 4, ¼-20 x ¾" stainless steel set screws and Allen wrench taped inside of ball
S
P
N
M
R
H
J
Q
©2023 Troyer's Birds' Paradise LLC. 20785 Morris Rd. Conneautville, PA 16406 814-587-2756
T
B
A
AL-Pole Parts List
I
K
L
G
C
Mounting Kit #ALMK-B
O
F
Cable
G
Winch (Brake Winch Shown)
H
Winch Handle
I
Winch Spring and Nut
J
4" Pulley with bolts, nut and washers
K
(2) Cable clamps
L
Cable thimble
M
Hitch Pin
F
N
Safety Bolt
O
(4) Slider blocks
P
House Bracket
Q
Lock with chain
R
Tarpaulin Hook with hardware
S
(8) Wood Screws
E
D
Page 1
Advertisement
Related Manuals for Troyer's Birds' Paradise T-14
Summary of Contents for Troyer's Birds' Paradise T-14
- Page 1 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount AL-Pole Parts List Pole (1) Bottom of pole (has a drilled hole 6-feet up from the bottom, see circle) (1) Center of pole (has the slot for the pulley at top, shown, and an aluminum splice at opposite...
- Page 2 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount The installation of a ground stake is as vital as the foundation of your home. Both need to be done correctly in order to support the housing. Step 1) Installing the Ground Stake (C). Using a post hole digger dig a hole with a minimum depth of 32-36”...
- Page 3 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount same. We will need your 4” pulley (J) with bolt washers and lock nut (all preassembled for you). Remove the lock nut and pull the bolt from pulley, make note of where the washers are.
- Page 4 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount Step 12) Begin by rotating your pole ¼ turn. You should see the bolt head or nut that was inserted thru the pulley facing upwards. It’s now time to install the house bracket (P).
- Page 5 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount just that orienting the winch itself so that is facing This will keep your safety pin from becoming dis- upwards on the pole, the winch handle will be on lodged during a later step.
- Page 6 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount Step 17) Run the cable with the cable stop on it little tension on the cable because it has been down the pole towards your installed winch. Ro- looped on to safety pin.
- Page 7 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount Notice the cable on the safety pin Step 20 Step 20) Now you will need two of your slider blocks (O) (found in the mounting kit). Note that each block has screws installed in them.
-
Page 8: Carriage Bolt
Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount pole and attach the other hook to the other side of the roof. See photo Step 22. Carriage Bolt Step 23) We will now attach the second 4-com- partment section to the opposite one we just did. - Page 9 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount while watching, insert the carriage bolt stems the cable. You will know you have enough slack through the drilled holes in the backside of the once you can place your cable between the 4- housing.
- Page 10 Assembly of Aluminum T-14 Pole with Mounting Kit and T-14 House Mount Step 27) Mount the last three-section house just of chain (Q). Remove the packing from the lock, like you did in step 24, and don’t forget to tighten and in order to open the lock you will need to re- the wing nuts.
