Troyer's K Series Gourd Rack: 18 or 24 unit
Pole Box
A
(1) Bottom of pole has a pre drilled hole (for safety bolt) 6 feet up from the bottom, (see circle).
B
(1) Top of pole (has the slot for pulley at top, (shown), and an aluminum splice at opposite end).
C
(1) 48" heavy duty ground stake (aluminum) with removable stop
D
(2) Aluminum perch rods 72".
Hub Box
E
(24) or (18) horizontal stainless gourd arms.
F
(1) Hub 24 (shown) or 18 unit
G
(1) Aluminum ball cap
H
(2) Winch mounting brackets (pre assembled with bolts and nuts).
J
(1) cable guide (pre assembled bracket, pulley and bolts with nuts)
K
(1) 7 x 19 x 3/16" stainless cable 32' with attached eyebolt and nut.
Hardware Bag
L
(24) or (18) stainless hitch pins (to secure gourds on to the gourd arms).
M
(1) 4 inch pulley with 3/8" x 3-¾" bolt and 3/8" lock nut.
N
(4) 10 - 24 x 3/8" SS set screws (used with ball top)
P
(1) Stop pin with 2 attached hitch pins.
R
(1) Safety bolt with stainless steel hitch pin.
S
(1) Brake Winch with its own instruction/hardware bag.
© 1999-2018
Troyer's Birds' Paradise
F
E
L
G

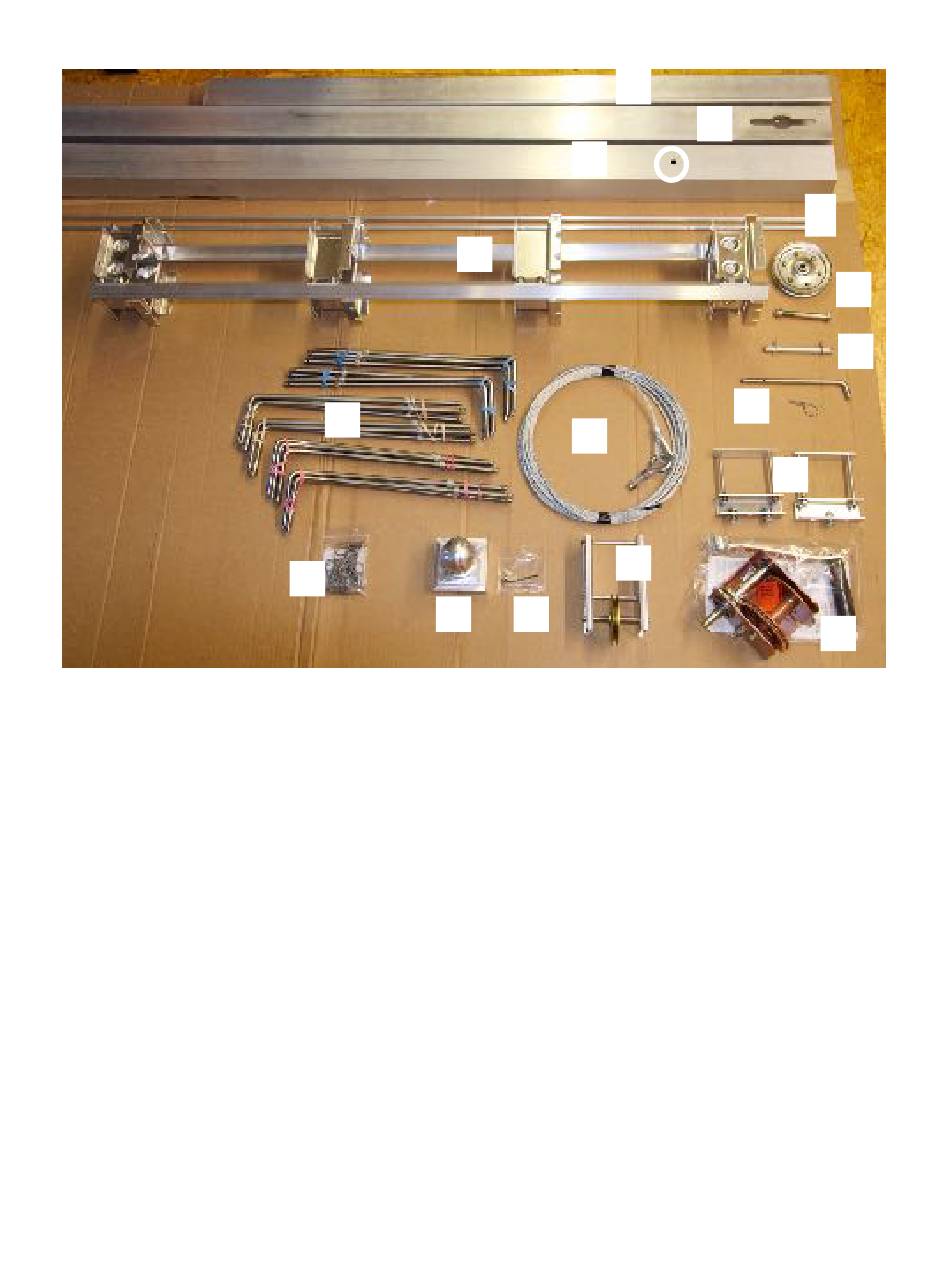

Parts List
20785 Morris Rd, Conneautville, PA 16406
C
A
K
J
N
814-587-2756
Updated: 07/18
B
D
M
P
R
H
S
Page 1
Advertisement
Table of Contents
Related Manuals for Troyer's Birds' Paradise K Series
Summary of Contents for Troyer's Birds' Paradise K Series
- Page 1 Troyer’s K Series Gourd Rack: 18 or 24 unit Updated: 07/18 Parts List Pole Box (1) Bottom of pole has a pre drilled hole (for safety bolt) 6 feet up from the bottom, (see circle). (1) Top of pole (has the slot for pulley at top, (shown), and an aluminum splice at opposite end).
- Page 2 Troyer’s K Series Gourd Rack: 18 or 24 unit The installation of a ground stake is as vital as Step 4) You will need at least 4 bags of Ready to the foundation of your home. Both need to be Use Concrete Mix, 80 pounds each.
- Page 3 Troyer’s K Series Gourd Rack: 18 or 24 unit Step 9 Step 8 Step 9 Step 8 Step 9) Assemble the pole. Take your bottom Step 10 section (A) and lay over an upturned 5 gallon bucket or similar object. Lay the top pole piece (B) next to it.
- Page 4 Troyer’s K Series Gourd Rack: 18 or 24 unit back on to the eyebolt, and tighten the lock nut all the way to the hub. You will also need to orient the eyebolt as seen in the photo step 13.
- Page 5 Troyer’s K Series Gourd Rack: 18 or 24 unit Step 17 Step 15 the nut. Tighten the nut. Get your other bracket, align the two outer holes of the winch bracket to the winch, insert bolts from the inside of the between the glide buttons and against the pole of winch, and tighten nuts using your 1/2”...
- Page 6 Troyer’s K Series Gourd Rack: 18 or 24 unit Step 20 DO NOT raise the hub until you have your gourd arms in place. Winch brackets are Step 21) Lower hub to the brake winch. With the designed to be used with aid of a helper stand the pole with hub and lift the our brake winch or our pole up and slide it over the ground stake.
- Page 7 Troyer’s K Series Gourd Rack: 18 or 24 unit Step 23) Its now time to attach the cable to the Straight brake winch. We have installed a stop nut on to the end of the cable. Insert the end of the cable with the stop nut into the OVAL hole on the gear side of the brake winch.
- Page 8 Troyer’s K Series Gourd Rack: 18 or 24 unit How to care for your rack. K 24H Due to the sheer size of this unit, you may wish to leave the pole up year round. You can remove both the gourds and gourd arms for winter storage.
