Summary of Contents for AKSO pH Max AK130

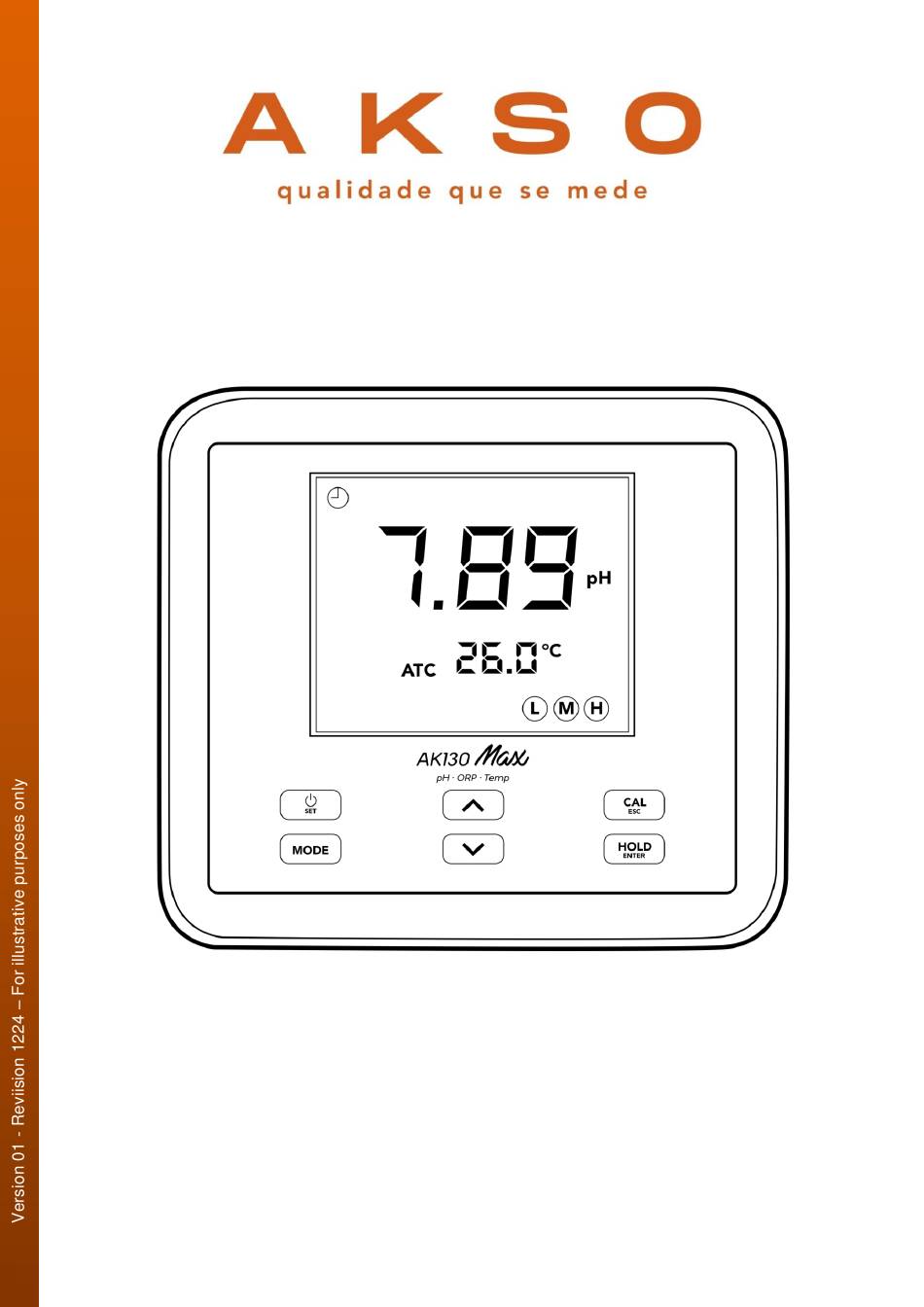

- Page 1 INSTRUCTION MANUAL pH Max – AK130 PH BENCH METER...
-
Page 3: Table Of Contents
CONTENTS 1 - SPECIFICATIONS ........................4 2 - ACCESSORIES .......................... 5 3 - OVERVIEW ..........................6 FRONT VIEW ..........................6 DISPLAY LCD ..........................7 4 – INSTRUCTIONS OF USE ......................8 Adjustment - pH .......................... 8 Measurement - pH ........................9 Adjustment - ORP ........................ -
Page 4: Specifications
1 - SPECIFICATIONS Measurement range: - 2.00 to 16.00 pH Resolution: 0.01 pH Accuracy: ± 0.01 pH Measurement range: -1999 to 1999 mV Resolution: Accuracy: ± 3 mV Temperature Measurement range: 0 to 80 °C Resolution: 0.1°C Accuracy: ± 0.5°C Calibration (pH) USA Standards: 4.01, 7.00 and 10.01 pH... -
Page 5: Accessories
- 3M KCl Storage Solution (250 mL bottle) – AK4530 ORP electrode BNC connector PO50 – AK1010 Power supply 220VAC/12VDC – AK1075 AK1001 AK1002 AK1003 Before use, examine the instrument and accompanying items carefully. If you detect any abnormalities, contact AKSO. -
Page 6: Overview
3 - OVERVIEW FRONT VIEW pH Max: 1 – Display 2 – Cal/Esc button 3 – Hold/Enter button 4 – Down button 5 – Up button 6 – On/Off/Set button 7 – Mode/Res button... -
Page 7: Display Lcd
3 - OVERVIEW DISPLAY LCD pH Max: 1 - Active automatic shutdown 2 - Active adjustment/calibration mode 3 - Slope display indication 4 - Active reading freeze enabled 5 - Inactive 6 - Battery replacement required 7 - ORP measurement unit 8 - PH measurement unit 9 - Slope calculation unit 10 - Temperature measurement unit in °C... -
Page 8: Instructions Of Use
4 – INSTRUCTIONS OF USE POWER ON – POWER OFF Always connect the power supply to the instrument first and then to the 220V electrical outlet. The power supply is not dual voltage. To turn the instrument on or off, press the button Adjustment - pH Adjust the instrument’s pH measurement upon receiving it and at least once a week. -
Page 9: Measurement - Ph
4 – INSTRUCTIONS OF USE 13) After finishing using, rinse the electrode (and temperature probe) with distilled/deionized water and store the electrode in the storage bottle with potassium chloride solution (KCl – 3M). NOTE: Always begin the adjustment at the pH 7.00 point and, after completing the procedure, discard the used portions of the solutions;... -
Page 10: Adjustment - Orp
4 – INSTRUCTIONS OF USE Adjustment - ORP The ORP electrode does not require adjustment. However, you can check the electrode’s performance and the accuracy of the readings using an ORP standard solution. Measurement - ORP 1) Connect the ORP electrode to the instrument; 2) Remove the KCl bottle from the electrode tip;... -
Page 11: Additional Functions
5 – ADDITIONAL FUNCTIONS DISPLAY LIGHTING To activate/deactivate the display lighting: 1) In measurement mode, press and hold the button to enter the setup mode. The display will show the indication P01; 2) Using the buttons navigate to the parameter P05 bL and briefly press the button to access it;... -
Page 12: Settings
6 - SETTINGS SETUP MODE To access the instrument’s configurable parameter menu, in measurement mode, press and hold the button . The display will show the indication P01; To navigate between parameters, use the buttons To access a parameter, press the button ... -
Page 13: P05 Bl - Enable/Disable Backlight
6 - SETTINGS P05 bL – Enable/disable backlight On (enable) OFF (disable) P06 CLr Inactive P07 rSt – Restore factory settings YES (perform the reset) The figure below shows how the options for the accessed parameter are displayed: 1- Defined Option 2- Another Available Option... -
Page 14: Maintenance
6) After resting, calibrate the instrument. NOTES: NEVER keep the electrode in the cleaning solution for more than 30 minutes; NEVER use abrasives (brushes sandpaper, rough paper) to clean the electrode; AKSO offers ready-to-use electrode cleaning solutions. Contact us for more information. - Page 15 For more information about disposal services and locations, contact your local municipal office. Akso guarantees its instruments against manufacturing defects with the following coverage: 2 wears for bench meters, portable and pocket testers and 6 months for electrodes/sensors (unless otherwise indicated).
