Summary of Contents for QSC Q-SYS TSC-3-WH

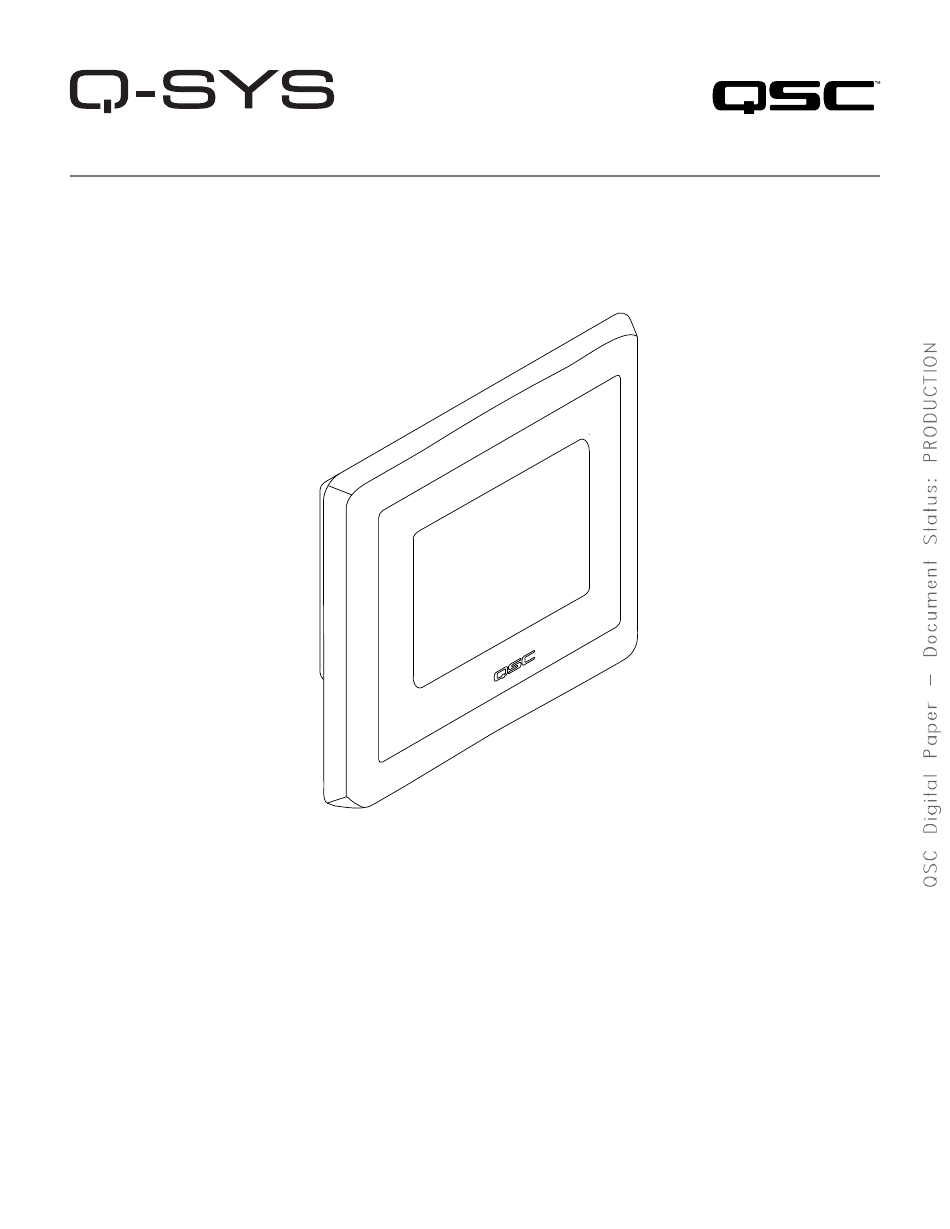

- Page 1 ™ Touchscreen Hardware User Manual TSC-3-WH – Networked Touchscreen Controller (White) TSC-3-BK – Networked Touchscreen Controller (Black) TD-000343-00-A *TD-000343-00*...
-
Page 2: Important Safety Instructions
EXPLANATION OF TERMS AND SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. -
Page 3: Fcc Statement
Damage to, or loss of any software or data residing on the product is not covered. When providing repair or replacement service, QSC will use reasonable efforts to reinstall the product’s original software configuration and subsequent update releases, but will not provide any recovery or... -
Page 4: Rohs Statement
The Q-Sys TSC-3-BK and TSC-3-WH products are in compliance with European Directive 2002/95/EC – Restriction of Hazardous Substances (RoHS). The Q-Sys TSC-3-BK and TSC-3-WH products are in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories: Q-Sys TSC-3-BK, Q-Sys TSC-3-WH 部件名称 有毒有害物质或元素... - Page 5 Q-Sys Designer, in the system. Q-LAN is QSC’s proprietary time-sensitive gigabit Ethernet network implementation built on standard protocols and off-the-shelf network hardware and cabling. Q-LAN represents state of the art in real-time networking technology appropriate for live performance multimedia applications. In addition to providing low-latency audio services, Q-LAN also provides configuration and management services to all Q-Sys products and peripherals in the system.
- Page 6 The Q-Sys Q-LAN Network The Q-Sys solution is designed to be deployed on QSC’s high performance Q-LAN network. Q-LAN is a proprietary network implementation that bundles several industry standard protocols into a data transport solution appropriate for live performance multimedia environments. Q-LAN offers gigabit data rates, device and network redundancy, 32-bit floating point audio data transfers, and low-latency support on local area network deployments.
-
Page 7: Installation
If service is required and the original packing material is not available, ensure that the unit is adequately protected for shipment (use a strong box of appropriate size, sufficient packing/padding material to prevent load shifting or impact damage) or call QSC’s Technical Services Group for replacement packing material and a carton. - Page 8 Mounting the Mounting Bracket to a 2-Nang Electrical Box - New Construction The new-construction, 2-gang box should be installed in the wall, during construction, with the PoE enabled Q-LAN Ethernet cable pre-wired. Refer to Figure 1. Place the Mounting Bracket on the wall aligning the holes in the Mounting Bracket with the holes in the 2-gang box (1).
- Page 9 Mounting the Mounting Bracket to a 2-Nang Electrical Box - Old Construction There are a number of manufacturers of old-construction 2-gang electrical boxes. Because of this, there may be a need to slightly modify the electrical box to allow for proper installation of the TSC-3. Below is an example. The modification procedure will be the same in most cases. NOTE!: This procedure may be accomplished with the electrical box installed in the wall, or not.
- Page 10 Mounting the Surface-Mount Back Box This procedure covers mounting the Surface-Mount Back Box onto an electrical connection box, and the Mounting Bracket onto the back box. The Surface-Mount Back Box is designed to be used in conjunction with an installed, electrical-type, connection box. The back box has several hole patterns to accommodate multiple connection box types.
- Page 11 Mounting the Mounting Bracket to 5/8" Drywall This procedure uses the two Drywall Clamps, one on the top, one on the bottom, of a rectangular hole cut into 5/8" (15.875 mm) drywall. 3.875" (98.43 mm) 3.5" (88.9 mm) — Figure 8 — Refer to Figure 8 1.
- Page 12 Configuration of the TSC-3 requires a Q-Sys Core and a PC running Q-Sys Designer software, both connected to the Q-LAN network. The latest version of Q-Sys Designer may be downloaded from the QSC website (http://www.qscaudio.com/). Additionally, all Q-Sys Core Processors include a Q-Sys Designer CD-ROM.
-
Page 13: Updating Firmware
Using the TSC-3 Touchscreen For the most part, using the TSC-3 depends on the design created for your installation by your system designer. There are, however, a few general characteristics that apply to all User Control Interface (UCI) designs. • If there are multiple pages in a UCI, you can drag your finger horizontally across the screen to change pages. •... - Page 14 TSC-3 Dimensions 4.83 in. .96 in 122.7 mm 24.4 mm .36 in 9.1 mm 4.50 in. 2.72 in. 114.2 mm 69 mm 2.71 in. 68.8 mm 1.62 in. 41.1 mm 3.58 in. 90.8 mm — Figure 13 —...
- Page 15 TSC-3 Specifications Front Panel Controls Control surface 3.5 inch (89.9 mm) capacitive touch surface Display 3.5 inch (89.9 mm) 4:3 color graphics display Luminance: 240 nit Resolution: 320 x 240 pixels0 Power Requirements IEEE 802.3AF power over Ethernet (PoE) Rear Panel Connectors RJ45 10/100 Mbps Finish...
- Page 16 © 2011, 2012, QSC Audio Products, LLC. This Hardware User Manual and the content therein are protected by copyright law. No part of this Hardware User Manual may be reproduced, printed, edited, or re-transmitted, or stored in a document retrieval system for the purpose of re-distribution, without the permission of QSC Audio Products, LLC QSC™...
