EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. The term “IMPORTANT!”...
Maintenance and Repair WARNING!: Advanced technology, e.g., the use of modern materials and powerful electronics, requires specially adapted maintenance and repair methods. To avoid a danger of subsequent damage to the apparatus, injuries to persons and/or the creation of additional safety hazards, all maintenance or repair work on the apparatus should be performed only by a Zykronix authorized service station or an authorized Zykronix International Distributor.
RoHS STATEMENT The Zykronix Galaxy is in compliance with European Directive 2011/65/EU – Restriction of Hazardous Substances (RoHS2). The Zykronix Galaxy is in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories: Z-SYS Galaxy 部件名称...
Page 5

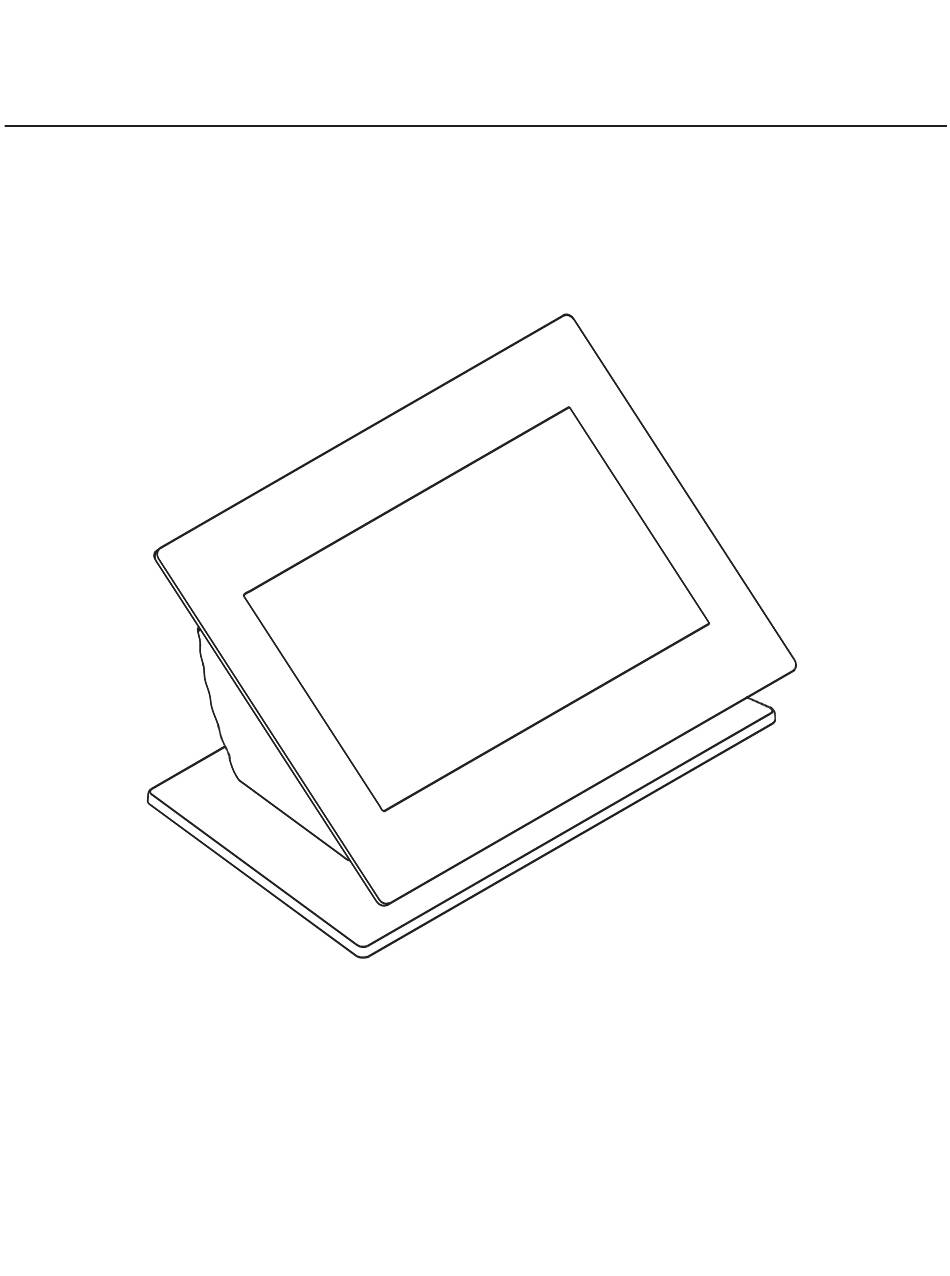

Introduction The Z-SYS Galaxy series touchscreen controllers provide remote management services for a Z-SYS audio system. The functionality of the Galaxy touchscreen controller is defined and configured by the system designer using Z- SYS Designer. Refer to the Z-SYS Designer on line help for setup and operation. Z-SYS Designer software can be downloaded from the Zykronix website (www.Zykronix.com).
Page 6
Galaxy Rear Panel Features RESE — Figure 2 — 1. USB 2.0 Micro-AB OTG 4. 12V DC AUX Power input (power supply not interface included) 2. Z-SYS LAN A with PoE 5. Unit Reset Button (RJ45) 3. Z-SYS LAN B (redundancy) (RJ45) Touchscreen Galaxy Packing List...
Installation Power Source The Z-SYS Galaxy is designed to be mounted on a • PoE (Power over Ethernet – IEEE 802.3af class 3 device) LAN A table, or desk. only General Requirements • 12V DC AUX Power source (not supplied) The Galaxy ◦...
Page 8
Through-the-Table Mounting 1. Drill a 33.3 mm (1-5/16 inch) hole through the mounting surface in the spot where you want to mount the Galaxy. Refer to Figure 6 2. Screw end with fewer threads on Mounting Pipe (1) into the bottom side of the Base (2).
Page 9
Free-Standing Installation 1. Perform the steps in “Prepare for Installation (both options)” on page 7. Refer to Figure 11 2. Remove the Cable Cover (2) from the Galaxy (1). Refer to Figure 12 3. Connect the cables to the proper connectors in the Galaxy a.
Page 10
Galaxy Dimensions 198 mm 127 mm 7.8 in. 5.0 in. Galaxy Specifications Display 7” Projected Capacitive Touch (five coordinate simultaneous touch sensitivity) Luminance: 400 nits (400 lumen/candela per square meter) Resolution: 800x400 Rear Panel Control Reset Button (Use a paper clip or similar tool to reboot the unit) Power PoE (Power over Ethernet) IEEE 802.3af class 3 device via LAN A...
