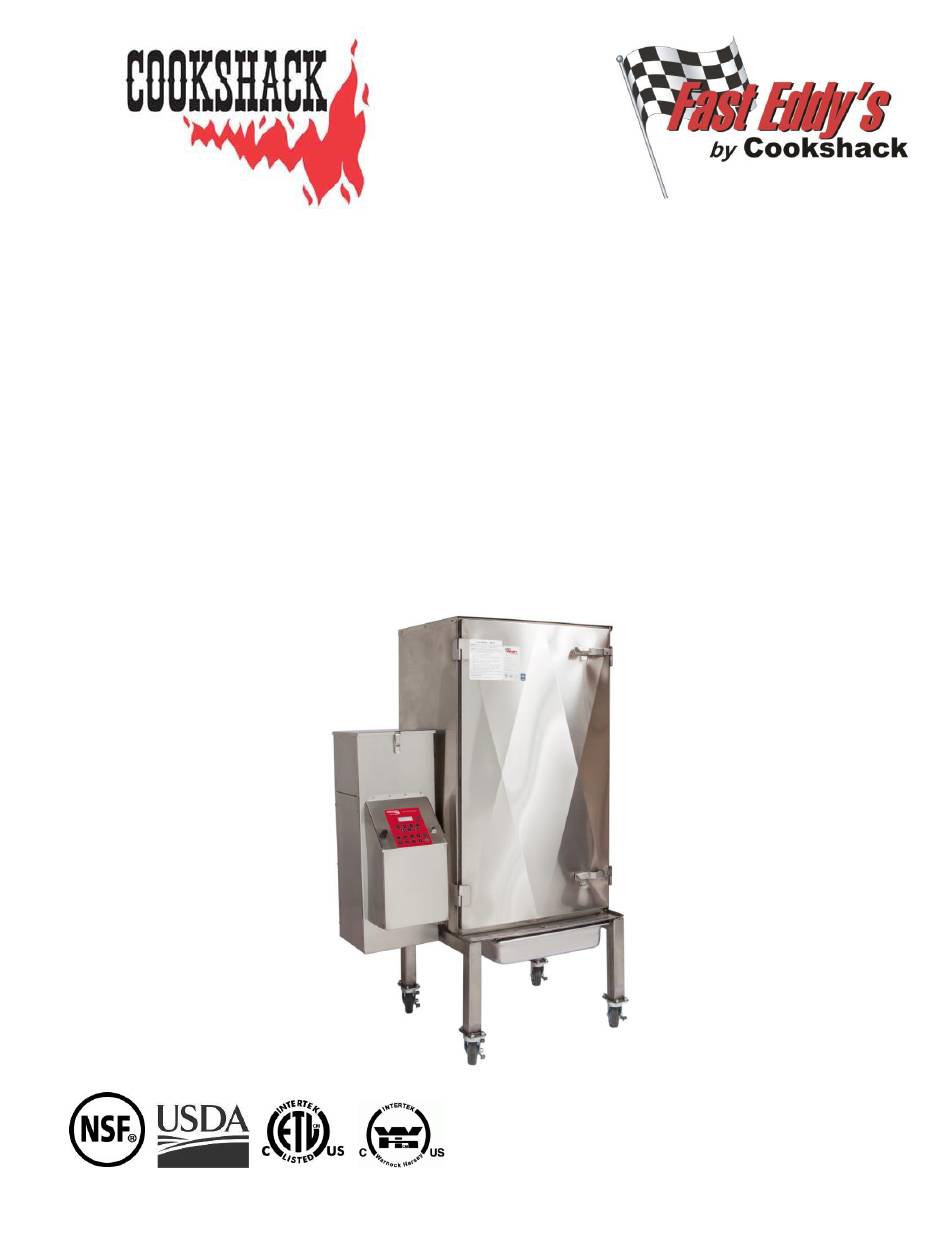

Model FEC100 Fixed Shelf Smoker
Please read this entire manual for installation and use of this smoker.
Failure to follow these instructions could result in property damage,
bodily injury or even death.
Contact local building or fire officials about restrictions and installation
inspection requirements in your area.
SAVE THESE INSTRUCTIONS.
Version 15.3
03/2015
Serial Number: ______
Purchase Date: ______

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fast Eddy's FEC100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cookshack Fast Eddy's FEC100

  • Page 1 Model FEC100 Fixed Shelf Smoker Please read this entire manual for installation and use of this smoker. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
  • Page 2 You must observe safe operating practices when using tis smoker. Cookshack, Inc. assumes no responsibility for results of careless and dangerous operation of Cookshack smokers or other products. If you do not follow the practices described in the Operator’s Manual, all warranties will be null and void.
  • Page 3: Table Of Contents

    Electrical Specifications ..........14 Troubleshooting Guide ..........15 Limited Warranty Policy ..........17 Return Merchandise Policy..........18 FEC100 Illustration ............20 FEC100 Wiring Diagram (US) ........21 FEC100 Wiring Diagram (Export) ......... 22 Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 4: General Safety Instructions

    General Safety Instructions Cookshack does not recommend this unit for commercial use. Cookshack recommends the FEC100 for competition or home use only. Only licensed professionals should work on or service this unit. A MAJOR CAUSE OF OVEN-RELATED FIRES IS FAILURE TO...
  • Page 5: Included Equipment

    The unit requires a separate 120 volt, 20 amp circuit. The unit must be grounded in accordance to your local codes or with the National Electric Code ANSI/NFPA 70-1990. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 6: Location

    When planning your flue, it is important to remember several items: o It must draw air naturally through the flue. o The flue should be cleaned every six (6) months. o One (1) inch clearance from combustible materials. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 7: Exhaust Systems

     Competing hood systems or ventilation in the building  Extreme drafts or inadequate clearance. Please contact Cookshack Customer Service with any questions at 1.800.423.0698 Monday through Friday, 9 AM to 4 PM CST or email us at info@cookshack.com. General Operating Instructions 1. Before starting, check the following: ...
  • Page 8: Control Panel Operation

     When the product is done to your satisfaction, remove from the smoker.  An audible signal indicates that the cook cycle is complete and that the oven is going to the Hold Temperature Mode. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 9: Smoke/Cook Mode (3 Stage Cooking)

    1. Press the Power Button on the oven control panel. 2. Set smoking time by pressing the SMOKE button and use the UP or DOWN arrows to change smoke time setting to 00:00. 3. Press OK. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 10: Probe Mode (3 Or 2 Stage Cooking)

    UP or DOWN arrows to set the smoke temperature to 0. 11. Press OK. 12. Set cooking time by pressing the COOK button and use the UP or DOWN arrows to change settings. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 11: Preset Buttons

    St. Louis Ribs Smoke 180°F Cook 250°F Hold 140°F Baby Back Ribs Smoke 180°F Cook 250°F Hold 140°F Sides of Salmon Smoke 140°F Cook 190°F Hold 140°F Sausage 1” Casing Smoke 140°F Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 12: Usb Download Instructions

     Press OK. See Figure 2 for example download. Figure 2 – This is what your download of information will look like. Column A is the current Cook Cycle. Column B is Oven Temperature. Column C is Probe Temperature. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 13: Product Loading Instructions

     If the oven is stored outdoors care should be taken to ensure that water does not get into the pellet hopper and/or controller. Wood pellets expand greatly when wet and will jam the auger system. A cover for the unit is highly recommended. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 14: Electrical Specifications

    Figure 2 – Pellet Slide Cleaning Electrical Specifications 110 volts, 60 HZ, single phase, 4 amp service required. The fire pot igniter element is 200 watts. Auger motor and burner induction fans are 25 watts each. Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 15: Troubleshooting Guide

    Troubleshooting Guide This is an initial guide for troubleshooting. If any of the following steps do not correct your issue, contact Cookshack Customer Service at 1.800.423.0698. Trouble Probable Cause Solution Control panel does not Unit is not plugged into a...
  • Page 16 If fan is turning, refer to the installation instructions and verify that the vent pipe is properly installed Oven temp is over 130°F Light manually or wait for oven to cool Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
  • Page 17: Limited Warranty Policy

    Cookshack smoker oven, accessories and/or heating elements.
  • Page 18: Return Merchandise Policy

    Return Merchandise Policy If you have merchandise that you believe is defective and requires repair or replacement: 1. Call Cookshack, Inc. at (800)423-0698. Ask to speak to a Customer Service Representative. Have your Smoker Oven model number and serial number ready.
  • Page 19 Credit may be denied if the returned merchandise is not found to be defective by Cookshack, Inc.; if it is not under warranty; if it is not received at Cookshack, Inc. 30 days after your RETURN NUMBER is issued; if it is damaged due to abuse, misuse, misapplication or accident;...
  • Page 20: Fec100 Illustration

    Draft Fan – PV517 Hopper Switch PV366 Inside hopper Hopper Latch PV166 Side Racks PM027 Grill PV005 Drip Tray Probe PV718 Drain Trough Igniter PV310 Inside Fire Pot Drip Pan PV702 Casters PV175 Fast Eddy’s™ by Cookshack FEC100 Operator’s Manual, V. 15.3...
