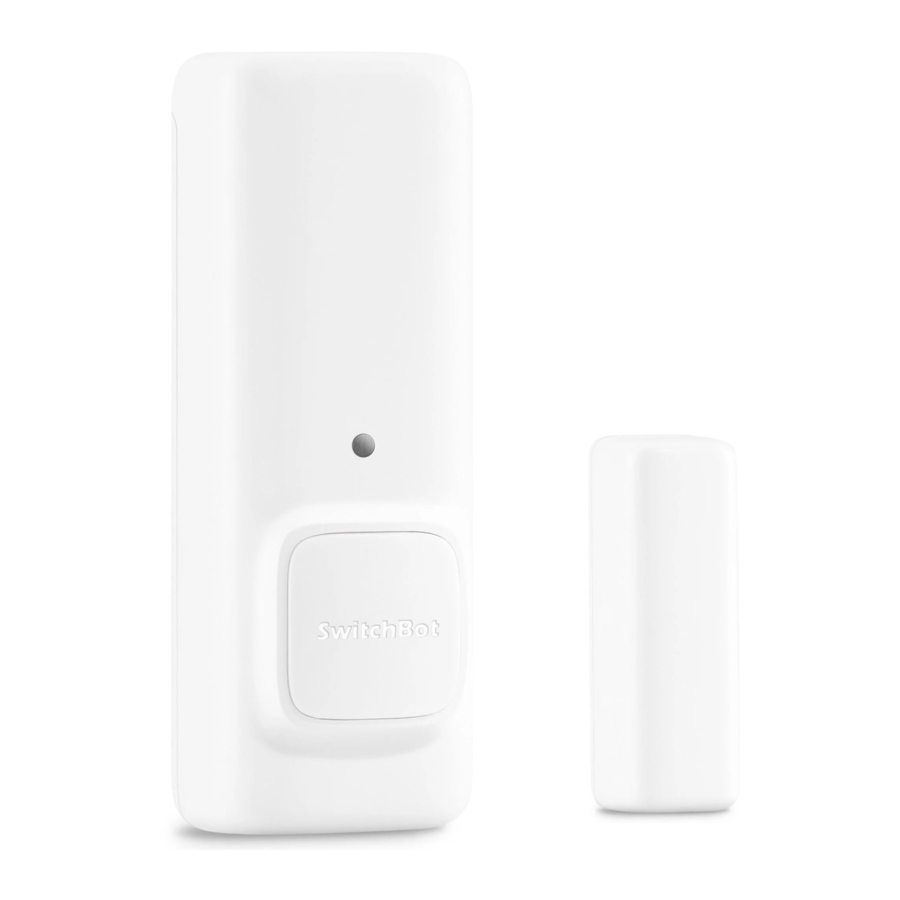

SwitchBot Contact Sensor Manual

In the Box

Note: The visuals used in this manual are for reference only. Due to the future updates and improvements of the product, the actual product images may differ.

Device Instruction

Preparation

• A smartphone or tablet with Bluetooth 4.2 or above
• Download the SwitchBot app
• Create a SwitchBot account and sign in

Installation

Remove the release paper behind the main body and the magnet, stick it on the door frame or window frame, and press for more than 60 seconds. Note that the two parts need to be aligned at the bottom

Installation Tips:
Make sure the sensor is not pointing to appliances or heat source in order to reduce interference and to avoid false alarms.

The sensor senses up to 5m away and up to 90°, horizontally.

The sensor senses up to 5m and up to 60°, vertically.

Initial Setup

1. Remove the back lid of the sensor. Follow the "+" and "-" marks, insert two AAA batteries into the battery box. Put the back lid back.
2. Open the SwitchBot app and sign in.
3. Tap the "+" icon on the top right of the Home page.
4. Choose the Presence Sensor icon to add the device to your account.

Battery Replacement, Firmware, and Factory Reset

Battery Replacement
Remove the back lid of the sensor. Follow the "+" and "-" marks, replace the old batteries with new ones. Put the back lid back.

Firmware
Make sure you have the up to date firmware by upgrading in time.

Factory Reset
Long press the Reset Button for 15 seconds or until the LED Indicator Light is on.

Note: After the device is reset, all settings will be set to the default values and the activity logs will be erased.

Specification

Model Number: W1201500

Size: Body size 70.5*25.5*23mm, magnet size 35*12*12.5mm

Weight: Body Weight: 43g, magnet Weight 13g

Power & Battery Life: AAAx2, typically 3 years

Measure Range:-10℃~60℃,20~85%RH

Maximum Detection Distance: 5m

Maximum Detection Angle: 120° horizontally and 60° vertically

Return and Refund Policy

This product has one-year warranty (start from the purchasing day). The situations below do not fit the Return and Refund Policy.

Intended damage or abuse.

Inappropriate storage (drop down or soaking in water).

User modify or repair.

Using loss.

Force majeure damage (Natural disasters).

Contact and Support

Setup and Troubleshooting: support.switch-bot.com

Support Email: support@wondertechlabs.com

Feedback: If you have any concern or problem when using our products, please kindly send feedback from the Profile> Feedback page in the SwitchBot app.
