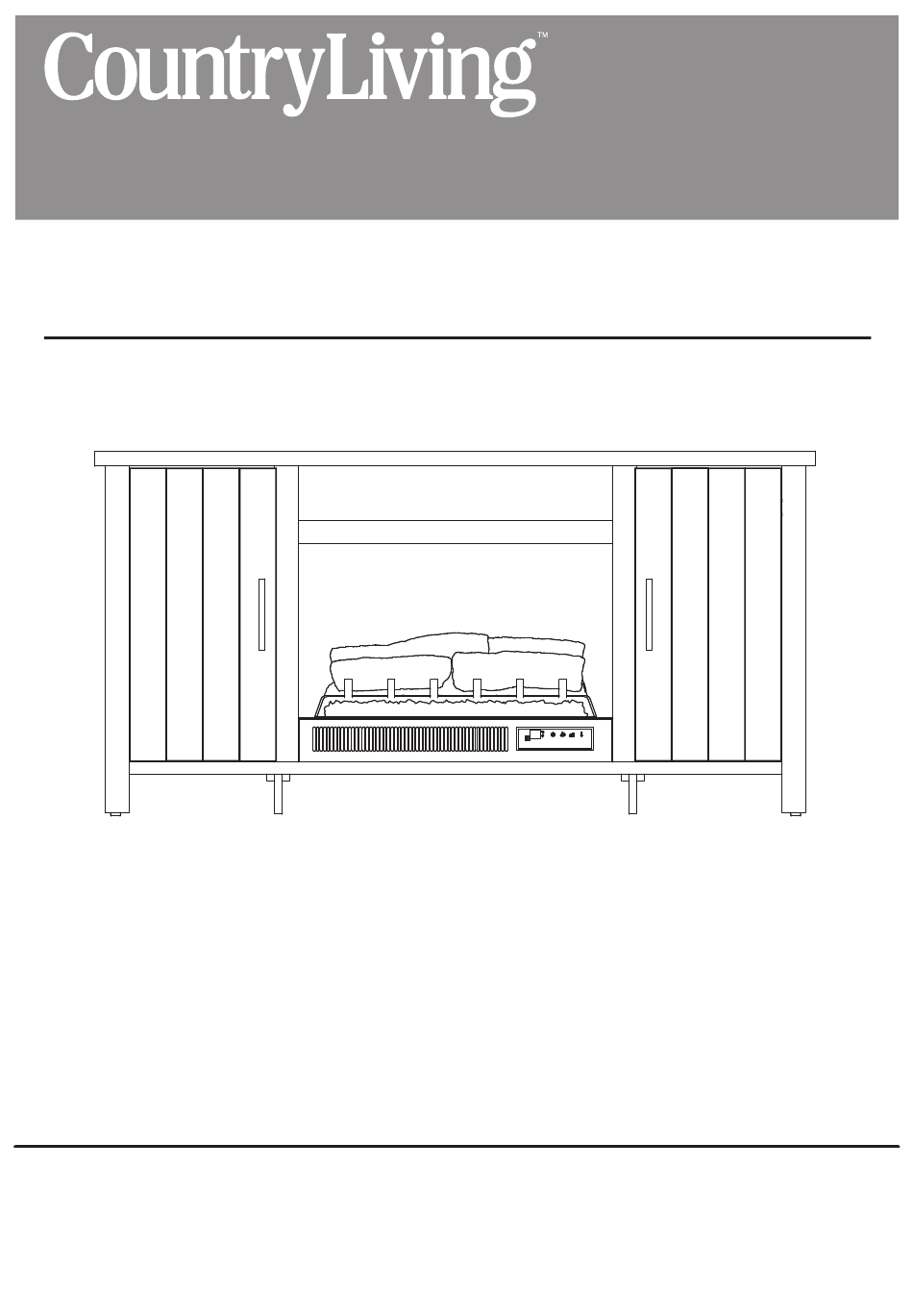

Item # CL-M-7197-RB (NDF-26KD)
BRINLEY MEDIA ELECTRIC FIREPLACE
Model # BE7197
ASSEMBLY & USER MANUAL
QUESTIONS, PROBLEMS, MISSING PARTS?
BEFORE RETURNING TO THE STORE, CALL
Customer Service:
8am-5pm CST, Monday - Friday
Phone: 877-430-0703
Email: resolutions@electricfireplacesdirect.com
THANK YOU
We appreciate the trust and confidence you have placed in Country Living TM through the purchase of
this electric fireplace . We strive to continually create quality products designed to enhance your home.
Visit us on-line to see our full line of products available for your home improvement needs.
Thank you for choosing Country Living!
1
Advertisement
Table of Contents
Related Manuals for Country Living BE7197
Summary of Contents for Country Living BE7197
- Page 1 Email: resolutions@electricfireplacesdirect.com THANK YOU We appreciate the trust and confidence you have placed in Country Living TM through the purchase of this electric fireplace . We strive to continually create quality products designed to enhance your home. Visit us on-line to see our full line of products available for your home improvement needs.
-
Page 2: Important Safety Instructions
Important Safety Instructions Important Safety Instructions Please read and understand this entire manual before attempting to assemble, operate or install the product. PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE IMPORTANT NOTICE When using electrical appliances, basic enter any ventilation or exhaust opening as precautions should always be followed to this may cause an electric shock or fire or When using electrical appliances, basic precautions should always be followed to reduce... -
Page 3: Hardware Identification
Hardware Identification Warranty 1-YEAR LIMITED WARRANTY IMPORTANT INFORMATION 1. Before you begin, locate the instructions and hardware. Be sure you have all of the parts The manufacturer warrants this product to be free from manufacturing and material defects for a and can identify them. - Page 4 Preparation Pro Tips – Cam & Bolt Furniture Connectors This electric fireplace mantel uses cam and bolt connectors for furniture assembly. These Mantel Parts List Left Back Panel make for a quick, simple, and sturdy connection method. Following these simple steps will assure a fast and hassle-free setup.
- Page 5 Mantel Assembly Mantel Assembly STEP 3 STEP 1 4PCS 4PCS 4PCS 4PCS Lay out base panel D completed fireplace surround from Step 1 (C,E & F). Locate 4 bolts (U1) and 4 cams (U2). Following the pro tips on page 7, connect the fireplace surround to the top surface of base D.
-
Page 6: Insert Preparation
Mantel Assembly Insert Preparation STEP 5 Insert Parts List Left Front Log Right Front Log Center Left Log Center Right Log Left Rear Log Right Rear Log 8PCS Ember Bed/Heater 8PCS Right Rear Log F Left Rear Log E With help from an adult, locate the completed base assembly from Step 4. Locate top panel (A) Center Right and 8 bolts (U1) and 8 cams (U2). -
Page 7: Insert Assembly
Insert Assembly Insert Assembly STEP 6 STEP 8 LOG D IS INSTALLED BEFORE LOG C FRONT VIEW TOP VIEW FRONT VIEW TOP VIEW Install Log A into the correct position in the front left side of the ember bed. Insert the two posts Install Log D into the correct position in center row right side of the ember bed. - Page 8 Insert Assembly Insert Assembly STEP 10 STEP 12 TOP VIEW FRONT VIEW TOP VIEW FRONT VIEW The completed Electric Fireplace Insert is now ready for installation into the decorative mantel. Please follow steps 13-21 to complete your Media Electric Fireplace. Logs can easily be removed if you make a mistake in the order or position of installation.
- Page 9 Electric Fireplace Assembly Electric Fireplace Assembly STEP 14 STEP 16 34PCS BACK °C °F Locate back panels (B, K, O, J) and 34 mounting screws (U7). Secure panel K in place with the mounting screws that are evenly spaced around the panel. You can leave the screws a little loose. Locate part P, the front glass (you can clean the glass prior to installation).
- Page 10 Pro Tips – Hinge/Door Adjustment Electric Fireplace Assembly DOOR HEIGHT ADJUSTMENT STEP 19 U12: 8PCS RAISE LOWER DOOR Loosen hinge mounting screws for both hinges, adjust door, and re-tighten the mounting screws. °C °F DOOR LEFT OR RIGHT ADJUSTMENT ADJUST DOOR LEFT Locate the 8 shelf pins (U12).
- Page 11 Electric Fireplace Assembly Electric Fireplace Assembly WALL ANCHOR SAFETY CABLE STEP 21 TR4 & 5 °C °F BACK Your electric fireplace is now complete. Carefully move the unit to its permanent place in your home. Operating Instructions – Control Panel Make sure to get help lifting the completed unit as it can be very heavy.
-
Page 12: Maintenance
Operating Instructions – Remote Control Electric Fireplace MUST READ Maintenance: WARNING: Completely disconnect power before attempting any maintenance or cleaning, to reduce the risk of fire or electric shock. Maintenance should only be performed by a certified technician. Cleaning: Before cleaning any parts of the fireplace, make sure to first turn off the controls and then unplug the unit from power source. - Page 13 Item # CL-M-7197-RB (NDF-26KD) BRINLEY MEDIA ELECTRIC FIREPLACE Model # BE7197 QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE, CALL CUSTOMER SERVICE 8am-5pm CST, Monday - Friday, 877-430-0703 Email: resolutions@electricfireplacesdirect.com...
