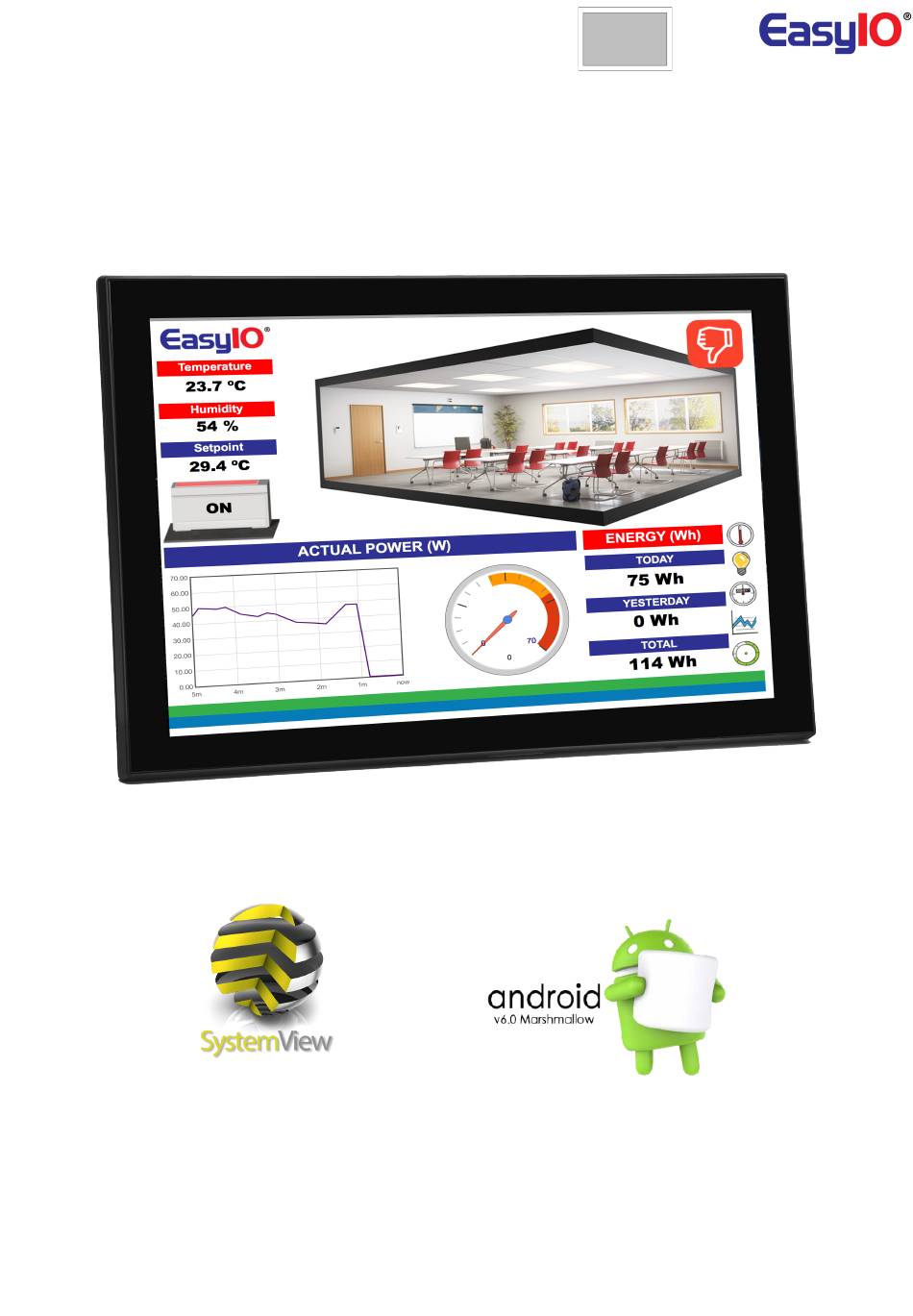

- Page 1 EasyIOeu SH-SystemView10 Configuration EasyIOeu SH-SystemView10 Configuration v2.2...
- Page 2 EasyIOeu SH-SystemView10 Configuration Document Change Log Jan 2019 Document created for new version of SystemView10. May 2019 Update mounting instructions.
-
Page 3: Table Of Contents
EasyIOeu SH-SystemView10 Configuration Table of Contents Introduction ............................4 Specifications ............................5 Dimension ............................... 6 Hardware Installation - Flush mounting ....................7 Hardware Installation - On-wall mounting ..................... 9 Ethernet/Date & time ........................... 11 SystemView 2.0a ..........................12 SystemView 2.0a Settings ........................13 Configurations ............................ -
Page 4: Introduction
EasyIOeu SH-SystemView10 Configuration Introduction Thank you for purchasing EasyIO products. This user guide will help you to configure SystemView10 in a fast and efficient manner. This device is based on Android OS and so there are several settings that device is expecting to get from the network in order to work properly. -
Page 5: Specifications
EasyIOeu SH-SystemView10 Configuration Specifications Model: SystemView10 Solution: Allwinner A83T processor CPU: 8-Core ARM Cortex A7 CPU, 1.2Ghz 10.1 Inch IPS Display, Resolution:1280 x 800, Display: Brightness:350 nit, Ratio:16:10 Hardware Specs RAM: Nand Flash: Sound System: 1W X 1, With Speaker Tunnel... -
Page 6: Dimension
EasyIOeu SH-SystemView10 Configuration Dimension Bracket for On-Wall mounting 40 mm Ø 3,5 mm (4x) 80 mm 56 mm 110 mm 81 mm 25 mm 52 mm... -
Page 7: Hardware Installation - Flush Mounting
EasyIOeu SH-SystemView10 Configuration Hardware Installation - Flush mounting Step 1 Make the cut-out for the touch panel. Step 2 Place it in the touch panel cut-out. - Page 8 EasyIOeu SH-SystemView10 Configuration Step 3 Put the 4 brackets into the touch panel backplate holes. Step 4 Tighten the screw to secure the touch panel to the panel (4x). Allen key 2,5mm...
-
Page 9: Hardware Installation - On-Wall Mounting
EasyIOeu SH-SystemView10 Configuration Hardware Installation - On-wall mounting Step 1 Screw the wall bracket to the wall. Step 2 Attach the SystemView10 to the wall bracket. - Page 10 EasyIOeu SH-SystemView10 Configuration Step 3 Tighten the screws (2x) to secure the SystemView10.
-
Page 11: Ethernet/Date & Time
EasyIOeu SH-SystemView10 Configuration Ethernet/Date & time To connect the touch panel to some device by Ethernet you need to configure the Ethernet network. This needs to be done in the Android system settings. Go to Settings->Ethernet, enable Ethernet and if you want to use Static IP address click on Static IP •... -
Page 12: Systemview 2.0A
EasyIOeu SH-SystemView10 Configuration SystemView 2.0a This app was made to keep the web page opened and to exit only through password. SystemView app will open on boot and even when the touch panel reboots it will open automatically. To configure this app you just need to set the IP of your device and first time you power the touch panel you need to set to open this app always on boot. -
Page 13: Systemview 2.0A Settings
EasyIOeu SH-SystemView10 Configuration Power on and go to SystemView Settings->Advanced, Set “Prevent keyboard form submission” OFF. SystemView 2.0a Settings Screensaver and Auto-refresh SystemView app has an Auto-refresh and Screensaver option enabled by default, this means after 5 minutes the SystemView app will open the screensaver (black image) and it will keep refreshing the web page on background every 5 minutes. -
Page 14: Configurations
EasyIOeu SH-SystemView10 Configuration Configurations By default this SystemView device must come with this configuration from factory, anyway you can check these configuration to make sure it works correctly. - SystemView 2.0a app installed. - screensaver.png image must be pasted into folder /storage/emulated/0/systemview/screensaver/... -
Page 15: Technical Support
EasyIOeu SH-SystemView10 Configuration Technical Support To get the latest software or for any technical question contact technical support. Email:support@easyio.eu...
