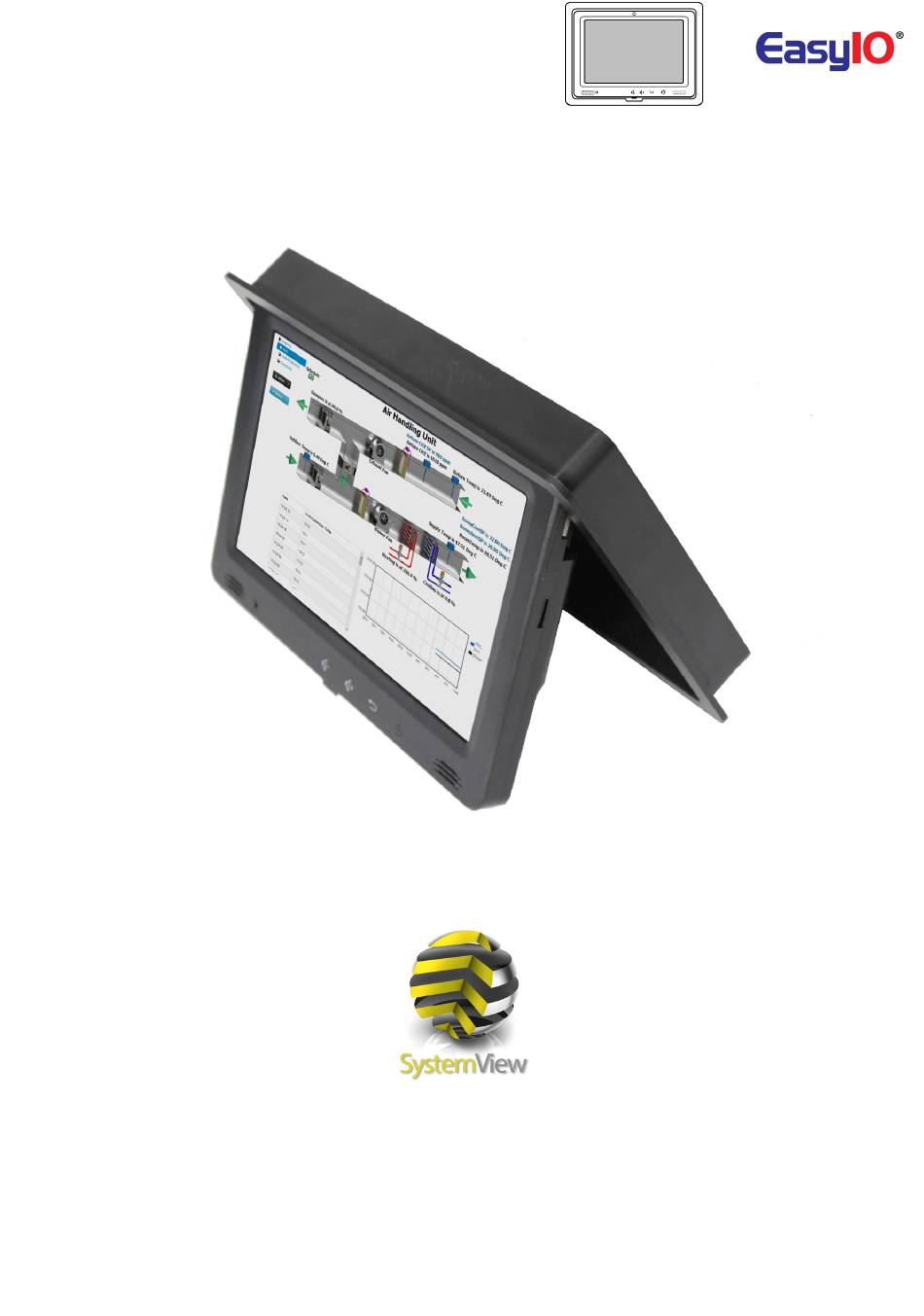

- Page 1 EasyIOeu SH-SystemView9 Configuration EasyIOeu SH-SystemView9 Configuration v1.9...
- Page 2 EasyIOeu SH-SystemView9 Configuration Document Change Log Jan 2014 Document created. Jun 2014 Added Specifications and Installation/Overview. Nov 2014 Added Dimension, Physical Installation Instruction, Auto Chrome and updated Auto Web instructions. Feb 2015 Updated Introduction, Specifications and Display/Security Settings. May 2015 Added Battery Installation Instructions and updated Auto Chrome. Jul 2015 Updated some settings and added SystemView app. Aug 2015 Updated Power Supply info and remove Security and Developer options. Jan 2016 Updated info about SystemView app. Aug 2016 Clarify info about SystemView app. Jun 2017 Update to SystemView 2.0a app and new 9 inch hardware version. Aug 2017 Update SystemView pages.
-
Page 3: Table Of Contents
EasyIOeu SH-SystemView9 Configuration Table of Contents Introduction ............................ 4 Specifications ............................ 5 Dimension .............................. 6 Ethernet/Date & time .......................... 7 SystemView 1.6 ............................ 8 SystemView 2.0a ............................ 9 Configurations ............................ 1 0 Technical Support .......................... 1 1... -
Page 4: Introduction
EasyIOeu SH-SystemView9 Configuration Introduction Thank you for purchasing EasyIO products. This user guide will help you to configure SystemView9 in a fast and efficient manner. This device is based on Android OS and so there are several settings that device is expecting to get from the network in order to work properly. Date and Time IP Address DNS Servers If you are using the device without connection to Internet / DHCP Router make sure you setup this properties correctly in order to get the device working correct. As Android device it pickup the date and time from the Internet on every power up. -
Page 5: Specifications
EasyIOeu SH-SystemView9 Configuration Specifications Model: SystemView9 Solution: Allwinner’s A20, Dual-Core Cortex™-A7 CPU Display: 9 Inch Display, Resolution: 800x480 Hardware Specs RAM: Nand Flash: Sound System: 1W x2 System: GoogleAndroid 4.2.2 H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps Video: encoding Software Feature 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols Audio: MP3 / WMA / WAV / AAC / FLAC / OGG Language: Support multi-languages Earphone Jack x1 Front Touch Buttons (Return, Volume+, Power, Volume-) Right Side: Micro SD slot ( Support 1GB~32GB ) Interfaces Ethernet Interface(RJ45) Back: DC IN Power Terminal Wi-Fi: WIFI (802.11b/g/n) -
Page 6: Dimension
EasyIOeu SH-SystemView9 Configuration Dimension... -
Page 7: Ethernet/Date & Time
EasyIOeu SH-SystemView9 Configuration Ethernet/Date & time To connect the tablet to some device by Ethernet you need to configure the Ethernet network. Go to Settings->More…->Ethernet, enable Use Ethernet and if you connect directly to web server device open Advanced Configure: • Disable DHCP; • Set the IP Address of your SystemView9; • Set the Mask Address of your network (normally 255.255.255.0); • Set the GateWay as the IP Address of your web server. Don’t use/enable both networks at same time, Ethernet and Wi-Fi. To have your tablet showing the graphics in the right time you need to make sure you have the date and time updated. Select time zone of your zone and if the tablet is not connected to internet disable Automatic date & time, so Set date and Set time. -
Page 8: Systemview 1.6
EasyIOeu SH-SystemView9 Configuration SystemView 1.6 This app was made to keep the web page opened and exit only through password. SystemView app will open on boot and even the tablet reboot it will open automatically. To configure this app you just need to set the IP of your device and first time you reboot the tablet you need to set to open this app always on boot. This app will disable the screen after 15 minutes, to enable again just touch on the screen. How to exit from SystemView To exit from SystemView you need to do long press on bottom right of the screen and it will show a password box, the password is 345710, it will open automatically the settings after exit SystemView. How to change the IP on SystemView To change the IP on SystemView you need to exit from SystemView (step above), then you need to go to Settings->Apps->SystemView and click on Clear Data. How to exit from Settings To exit from Settings you need to go to Settings>Apps>RUNNING (after open Apps click on “ON SD CARD” or just slide to left and you can see “RUNNING” so click there or just slide again). When you are at Running Apps you can see Settings so click on it and then stop the service. Doing this you are stopping the Settings and then it will open the SystemView (if you were there before). How to install a new SystemView version To install a new version of SystemView first go to Settings->Apps and click on SystemView then Uninstall. After this you need to connect an USB stick with the latest app and go to Menu->File Manager->USB->usbhost1 and click on latest SystemView apk file, do install and after the installation is done you need to reboot the tablet. To get the latest software contact technical support. -
Page 9: Systemview 2.0A
EasyIOeu SH-SystemView9 Configuration SystemView 2.0a This app was made to keep the web page opened and exit only through password. SystemView app will open on boot and even the tablet reboot it will open automatically. To configure this app you just need to set the IP of your device and first time you reboot the tablet you need to set to open this app always on boot. How to exit from SystemView To exit from SystemView you have to swipe down on top of the screen, then press the three dots in the top right corner and then click on Settings. You will be prompted to enter a password, the default password is “345710ʺ (without quotation marks). On SystemView Settings you can change the settings of the app, if you want to go to Android Settings or Android launcher you have to go to Admin and then click on System Settings or Exit to Launcher depending on where you want to go. How to change the IP on SystemView To change the IP on SystemView you need to go to SystemView Settings (step above), then click on General and change the SystemView URL. (it has to start with http:// or https://) How to exit from Android Settings To exit from Android Settings you need to go to Settings>Apps>RUNNING (after open Apps click on “ON SD CARD” or just slide to left and you can see “RUNNING” so click there or just slide again). When you are at Running Apps you can see Settings so click on it and then stop the service. Doing this you are stopping the Settings and then it will open the SystemView (if you were there before). How to install a new SystemView version To install a new version of SystemView first go to Settings->Apps and click on SystemView then Uninstall. After this you need to connect an USB stick with the latest app and go to Menu->File Manager->USB->usbhost1 and click on latest SystemView apk file, do install and after the installation is done you need to reboot the tablet. To get the latest software contact technical support. -
Page 10: Configurations
EasyIOeu SH-SystemView9 Configuration Configurations By default this SystemView device must come with this configuration from factory, anyway you can check these configuration to make sure it works correctly. - SystemView 2.0a app installed. - screensaver.png image must be pasted into folder /mnt/sdcard/systemview/screensaver/ Settings: Display - Sleep -> Never timeout; - Daydream -> ON; (no mode selected) Location Access - Access to my location -> Off; Security - Screen lock -> None; Language & input - Language -> English; - Spell checker -> disable; - Default -> English - Google Keyboard; - Google Keyboard -> enable; - Google voice typing -> disable; - Japanese IME -> disable; Date & time - Automatic time zone -> disable; - Select time zone -> GMT+02:00, Central European Summer Time (Amsterdam, Berlin); - Use 24-hour format -> enable; - Choose date format -> 31/12/2016; Developer options - Stay awake -> enable; - Show touches -> enable; - Don't keep activities -> enable;... -
Page 11: Technical Support
EasyIOeu SH-SystemView9 Configuration Technical Support For technical issue, please contact Email:support@easyio.eu...
