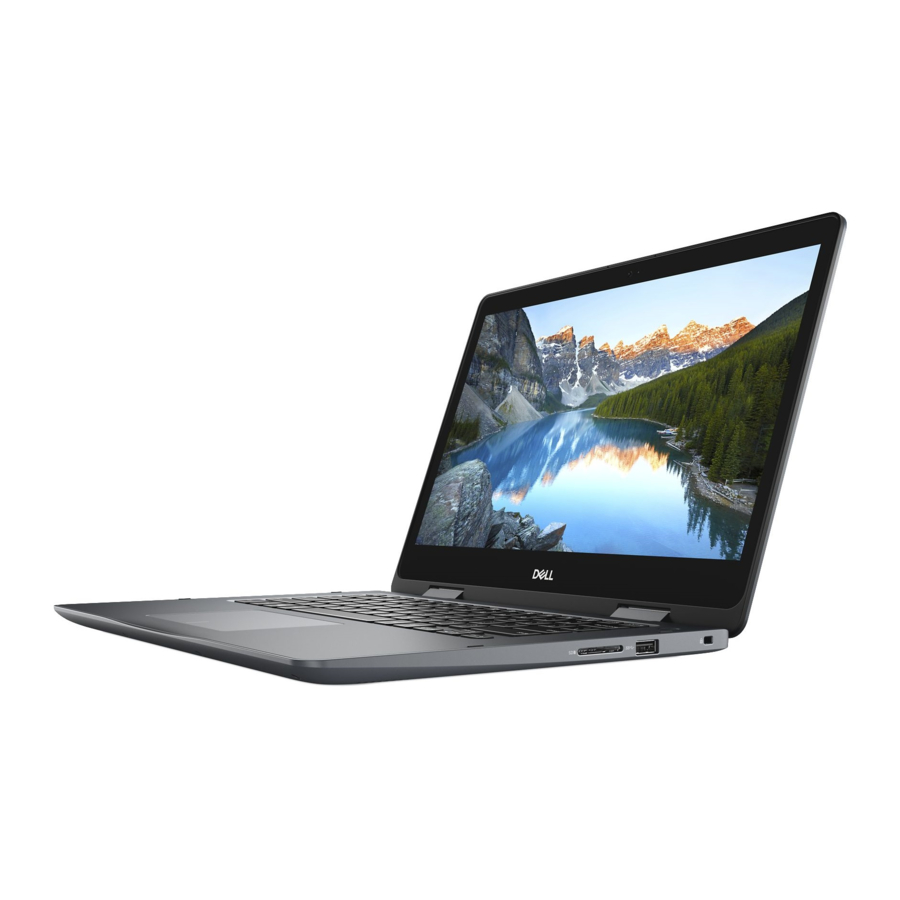

Dell Inspiron 5481 Manual

Set up your Inspiron 5481

1. Connect the power adapter and press the power button.

   NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.


2. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended

Table 1. Locate Dell apps

	SupportAssist Pro-actively checks the health of your computer's hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer.

4. Create recovery drive for Windows.
   NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
   For more information, see Create a USB recovery drive for Windows.

Create a USB recovery drive for Windows

Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive.
NOTE: This process may take up to an hour to complete.
NOTE: The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for latest instructions.

1. Connect the USB flash drive to your computer.
2. In Windows search, type Recovery.
3. In the search results, click Create a recovery drive. The User Account Control window is displayed.
4. Click Yes to continue. The Recovery Drive window is displayed.
5. Select Back up system files to the recovery drive and click Next.
6. Select the USB flash drive and click Next. A message appears, indicating that all data in the USB flash drive will be deleted.
7. Click Create.
8. Click Finish.

Views of Inspiron 5481

Right

1. SD-card slot
   Reads from and writes to the SD card.
2. USB 2.0 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
3. Security-cable slot (for Noble locks)
   Connect a security cable to prevent unauthorized movement of your computer.

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer.
2. Power and battery-status light
   Indicates the power state and battery state of the computer.
   Solid white—Power adapter is connected and the battery is charging.
   Solid amber—Battery charge is low or critical.
   Off—Battery is fully charged.
   NOTE: On certain computer models, the power and battery-status light is also used for system diagnostics. For more information, see the Troubleshooting section in your computer's Service Manual.
3. HDMI port
   Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
4. USB 3.1 Gen 1 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
5. USB 3.1 Gen 1 port with PowerShare
   Connect peripherals such as external storage devices and printers.
   Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.
   NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.
   NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.
6. Headset port
   Connect headphones or a headset (headphone and microphone combo).

Base

1. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
2. Left-click area
   Press to left-click.
3. Right-click area
   Press to right-click.
4. Power button
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   Press to put the computer in sleep state if it is turned on.
   Press and hold for 4 seconds to force shut-down the computer.
   NOTE: You can customize the power-button behavior in Power Options.

Display

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Camera
   Enables you to video chat, capture photos, and record videos.
3. Camera-status light
   Turns on when the camera is in use.
4. Right microphone
   Provides digital sound input for audio recording and voice calls.

Bottom

1. Left speaker
   Provides audio output.
2. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3. Right speaker
   Provides audio output.

Modes
Notebook

Tablet

Stand

Tent

Specifications of Inspiron 5481

Computer model
Inspiron 5481

Dimensions and weight
Table 2. Dimensions and weight

NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors
Table 3. Processor specifications

Chipset
Table 4. Chipset specifications

Operating system

• Windows 10 Home (64-bit)
• Windows 10 Professional (64-bit)

Memory
Table 5. Memory specifications

Slots	One SODIMM slot
Type	DDR4
Speed	2666 MHz NOTE: The 2666 MHz memory functions at 2400 MHz with 8 th Generation Intel Core processors.
Maximum memory	16 GB
Minimum memory	4 GB
Memory per slot	4 GB, 8 GB, and 16 GB
Configurations supported	4 GB DDR4 at 2400 MHz (1 x 4 GB) 8 GB DDR4 at 2400 MHz (1 x 8 GB) 16 GB DDR4 at 2400 MHz (1 x 16 GB)

Ports and connectors
Table 6. Ports and connectors specifications

Communications
Wireless module
Table 7. Wireless module specifications

Audio
Table 8. Audio specifications

Storage
Table 9. Storage specifications

Intel Optane memory (optional)
Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer. NOTE: Intel Optane memory is supported on computers that meet the following requirements:

• 7 ^th Generation or higher Intel Core i3/i5/i7 processor

• Windows 10 64-bit version or higher (Anniversary Update)
• Intel Rapid Storage Technology driver version 15.9.1.1018 or higher

Table 10. Intel Optane memory specifications

Media-card reader
Table 11. Media-card reader specifications

Keyboard
Table 12. Keyboard specifications

Type	Standard keyboard
Layout	QWERTY
Number of keys	United States and Canada: 80 keys United Kingdom: 81 keys Japan: 84 keys
Size	X = 19.05 mm key pitch Y = 18.05 mm key pitch
Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program. Keyboard shortcuts

Camera
Table 13. Camera specifications

Touchpad
Table 14. Touchpad specifications Resolution:

Touchpad gestures
For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Power adapter
Table 15. Power adapter specifications

Battery
Table 16. Battery specifications

Type	3-cell Primus (42 WHr)
Voltage	11.40 VDC
Weight (maximum)	0.2 kg (0.44 lb)
Dimensions:
Height	5.90 mm (0.23 in.)
Width	184.15 mm (7.25 in.)
Depth	97.15 mm (3.82 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	–40°C to 65°C (–40°F to 149°F)
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Charging time (approximate)	5.5 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manger application. For more information on the Dell Power Manger see, Me and My Dell on https://www.dell.com/
Life span (approximate)	300 discharge/charge cycles
Coin-cell battery	CR-2032

Display
Table 17. Display specifications

Video
Table 18. Integrated graphics specifications
The following table provides the detailed integrated graphics specifications of Inspiron 5481.

Computer environment
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 19. Computer environment

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.
‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Table 20. List of keyboard shortcuts

Keys	Description
	Mute audio
	Decrease volume
	Increase volume
	Play previous track/chapter
	Play/Pause
	Play next track/chapter
	Switch to external display
	Search
	Toggle keyboard backlight
	Decrease brightness
	Increase brightness
	Turn off/on wireless
	Toggle scroll lock
	Toggle Fn-key lock
	Pause/Break
	Sleep
	System request
	Open application menu
	Toggle between battery-status light and hard-drive activity light NOTE: Hard-drive activity light is supported only on computers shipped with a hard drive.

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 21. Self-help resources

Information about Dell products and services	www.dell.com
Dell Help & Support app
Accessing help	In Windows search, type Help and Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concerns.	Go towww.dell.com/support. Type the subject or keyword in the Search box. Click Search to retrieve the related articles.
Learn and know the following information about your product: Product specifications Operating system Setting up and using your product Data backup Troubleshooting and diagnostics Factory and system restore BIOS information	See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: Select Detect Product. Locate your product through the drop-down menu under View Products. Enter the Service Tag number or Product ID in the search bar.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country and product, and some services may not be available in your country.
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Notes, cautions, and warnings

NOTE
A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.
