Dell Inspiron 3581 (P75F) Manual

Set up your Inspiron 3581

warning NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

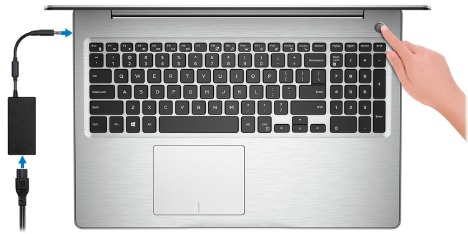

  1. Connect the power adapter and press the power button.
    Set up
    warning NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.
  2. Finish operating system setup.
    For Ubuntu:
    Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
    For Windows:
    Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
    • Connect to a network for Windows updates.
      warning NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
    • If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
    • On the Support and Protection screen, enter your contact details.
  3. Locate and use Dell apps from the Windows Start menu—Recommended

Table 1. Locate Dell apps

Resources Description
My Dell
Description Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.

SupportAssist
Pro-actively checks the health of your computer's hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support.

warning NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support..
Dell Digital Delivery
Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.
  1. Create recovery drive for Windows.

warning NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.

For more information, see Create a USB recovery drive for Windows.

Create a USB recovery drive for Windows

Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive.

warning NOTE: This process may take up to an hour to complete.

warning NOTE: The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for latest instructions.

  1. Connect the USB flash drive to your computer.
  2. In Windows search, type Recovery.
  3. In the search results, click Create a recovery drive.
    The User Account Control window is displayed.
  4. Click Yes to continue.
    The Recovery Drive window is displayed.
  5. Select Back up system files to the recovery drive and click Next.
  6. Select the USB flash drive and click Next.
    A message appears, indicating that all data in the USB flash drive will be deleted.
  7. Click Create.
  8. Click Finish.

For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals.

Views of Inspiron 3581

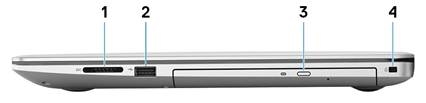

Views - Right

  1. SD-card slot
    Reads from and writes to the SD card.
  2. USB 2.0 port Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
  3. Optical drive
    Reads from and writes to CDs, DVDs, and Blu-ray discs.
    warning NOTE: Blu-ray support is only available in certain regions.
  4. Security-cable slot (wedge-shaped)
    Connect a security cable to prevent unauthorized movement of your computer.

Left

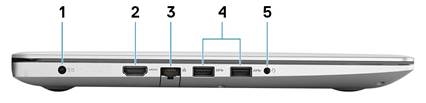

Views - Left

  1. Power-adapter port
    Connect a power adapter to provide power to your computer.
  2. HDMI port
    Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
  3. Network port
    Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
  4. USB 3.1 Gen 1 ports (2)
    Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
  5. Headset port
    Connect headphones or a headset (headphone and microphone combo).

Base

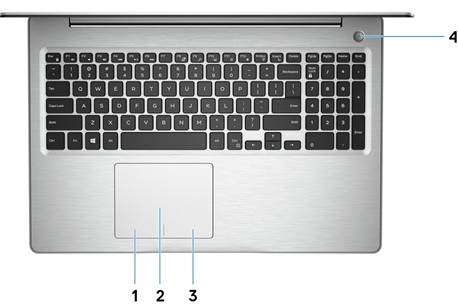

Views - Base

  1. Left-click area
    Press to left-click.
  2. Touchpad
    Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
  3. Right-click area
    Press to right-click.
  4. Power button with optional fingerprint reader
    Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
    When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 4 seconds to force shut-down the computer.
    If the power button has a fingerprint reader, place your finger on the power button to log in.

warning NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.

Display

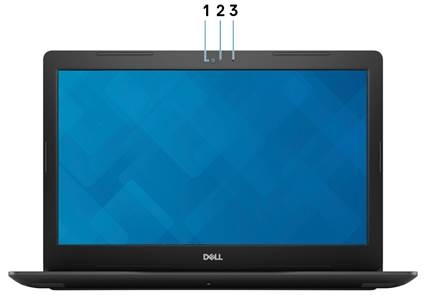

Views - Display

  1. Camera
    Enables you to video chat, capture photos, and record videos.
  2. Camera-status light
    Turns on when the camera is in use.
  3. Microphone
    Provides digital sound input for audio recording, voice calls, and so on.

Bottom

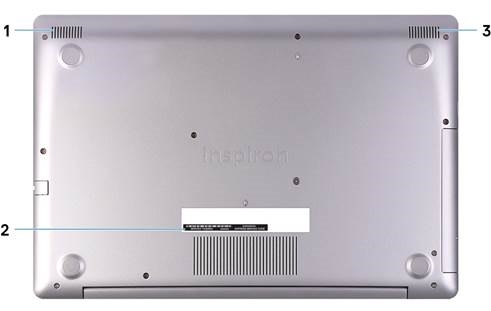

Views - Bottom

  1. Left speaker
    Provides audio output.
  2. Service Tag label
    The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
  3. Right speaker
    Provides audio output.

Specifications of Inspiron 3581

Dimensions and weight

Table 2. Dimensions and weight

Description Values
Height:
  • Front
20.66 mm (0.81 in)
  • Rear
22.70 mm (0.89 in)
Width 380 mm (14.96 in.)
Depth 258 mm (10.16 in.)
Weight 2.28 kg (5.03 lb)

warning NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors

Table 3. Processors

Description Values
Processors Intel Celeron Intel Pentium Gold 7th Gen Intel Core i3 7th Gen Intel Core i5 7th Gen Intel Core i7
Wattage 15 W 15 W 15 W 15 W 15 W
Core count 2 2 2 2 2
Thread count 4 4 4 4 4
Speed Up to 1.8 GHz Up to 2.2 GHz Up to 2.3 GHz Up to 2.5 GHz, 3.1 GHz Boost Up to 2.7 GHz, 3.5 GHz Boost
L2 Cache Not supported Not supported Not supported Not supported Not supported
L3 Cache 2 MB SmartCache 2 MB SmartCache 3 MB SmartCache 3 MB SmartCache 4 MB SmartCache
Integrated graphics Supported Supported Supported Supported Supported

Chipset

Table 4. Chipset

Description Values
Processor
  • Intel Celeron
  • Intel Pentium Gold
7th Gen Intel Core i3/i5/i7
Chipset Integrated in the processor Integrated in the processor
DRAM bus width x64 x64
Flash EPROM 16 MB 16 MB
PCIe bus Up to Gen2 Up to Gen3
External bus frequency Not supported Not supported

Operating system

  • Windows 10 Home (64-bit)
  • Windows 10 Professional (64-bit)
  • Ubuntu

Memory

Table 5. Memory specifications

Description Values
Slots

Up to two SODIMM slots

warning NOTE: The number of memory slots available may differ according to region.

Type Dual-channel DDR4
Speed 2133 MHz/2400 MHz
Maximum memory 16 GB
Minimum memory 4 GB
Memory size per slot 4 GB, 8 GB, and 16 GB
Configurations supported
  • 4 GB DDR4 at 2400 MHz (1 x 4 GB)
  • 8 GB DDR4 (2 x 4 GB)
  • 8 GB DDR4 (1 x 8 GB)
  • 12 GB DDR4 (1 x 4 GB + 1 x 8 GB)
  • 16 GB DDR4 (2 x 8 GB)
  • 16 GB DDR4 (1 x 16 GB)

Ports and connectors

Table 6. Ports and connectors

External:
Network One RJ-45 port
USB
  • Two USB 3.1 Gen 1 ports
  • One USB 2.0 port
Audio One headset (headphone and microphone combo) port
Video One HDMI 1.4 port
Media card reader One SD-card slot
Docking port Not supported
Power adapter port 4.5 mm
Security Wedge-shaped lock slot
Internal:
M.2

One M.2 2280 slot for solid-state drive

warning NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Communications

Ethernet

Table 7. Ethernet specifications

Description Values
Model number Ethernet controller integrated to the system board
Transfer rate 10/100 Mbps

Wireless module

Table 8. Wireless module specifications

Description Values
Model number Qualcomm QCA9565 (DW1707) Qualcomm QCA9377 (DW1810) Qualcomm QCA61x4A (DW1820)
Transfer rate Up to 150 Mbps Up to 433 Mbps Up to 867 Mbps
Frequency bands supported Dual band 2.4 GHz Dual band 2.4 GHz/5 GHz Dual band 2.4 GHz/5 GHz
Wireless standards WiFi 802.11b/g/n WiFi 802.11a/b/g/n/ac WiFi 802.11a/b/g/n/ac
Encryption
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
Bluetooth Bluetooth 4.0 Bluetooth 4.2 Bluetooth 4.2

Audio

Table 9. Audio specifications

Description Values
Controller Realtek ALC3246
Stereo conversion Supported
Internal interface High-definition audio
External interface Headset combo jack (stereo headphones/microphone-in)
Speakers Two
Internal speaker amplifier Supported (audio codec integrated)
External volume controls Supported
Speaker output:
  • Average
2 W
  • Peak
2.5 W
Subwoofer output Not supported
Microphone Supported

Storage

Table 10. Storage specifications

Storage type Interface type Capacity
Hard drive One 2.5-inch hard drive, SATA 3
  • 500 GB (5400 RPM/7200 RPM)
  • 1 TB (5400 RPM/7200 RPM)
  • 2 TB (5400 RPM)
Solid-state drive One M.2 2280 solid-state drive, Class 35 and Class 40 Up to 256 GB
Optical drive 9.5 mm DVD-RW

Intel Optane memory (optional)

Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.

warning NOTE: Intel Optane memory is supported on computers that meet the following requirements:

  • 7th Generation or higher Intel Core i3/i5/i7 processor
  • Windows 10 64-bit version or higher (Anniversary Update)
  • Latest version of Intel Rapid Storage Technology driver

Table 11. Intel Optane memory

Description Values
Type Storage accelerator
Interface PCIe 3.0x2 NVMe 1.1
Connector M.2 2280
Configurations supported
  • 7 th Generation or higher Intel Core i3/i5/i7 processor
  • Windows 10 64-bit version or higher
  • Intel Rapid Storage Technology driver version 15.9 or higher
Capacity Up to 16 GB

Media-card reader

Table 12. Media-card reader specifications

Description Values
Type One SD-card slot
Cards supported Secure Digital (SD)

Keyboard

Table 13. Keyboard specifications

Description Values
Type
  • Standard non-backlit keyboard
  • Backlit keyboard
Layout QWERTY
Number of keys
  • United States and Canada: 101 keys
  • United Kingdom: 102 keys
  • Japan: 105 keys
Size X = 19.05 mm key pitch
Y = 18.05 mm key pitch
Shortcut keys

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

warning NOTE: You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Keyboard shortcuts

Camera

Table 14. Camera specifications

Description Values
Number of cameras One
Type HD RGB camera
Location Front (above the LCD screen)
Sensor type CMOS sensor technology
Resolution:
  • Still image
0.92 megapixel
  • Video
1280 x 720 (HD) at 30 fps
Diagonal viewing angle 78.6 degrees

Touchpad

Table 15. Touchpad specifications

Description Values
Resolution:
Horizontal 3215
Vertical 2429
Dimensions:
Horizontal 105 mm (4.13 in.)
Vertical 80 mm (3.15 in.)

Touchpad gestures

For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Power adapter

Table 16. Power adapter specifications

Description Values
Type 45 W 65 W
Diameter (connector) 4.5 mm 4.5 mm
Input voltage 100 VAC–240 VAC 100 VAC–240 VAC
Input frequency 50 Hz–60 Hz 50 Hz–60 Hz
Input current (maximum) 1.30 A 1.70 A
Output current (continuous) 2.31 A 3.34 A
Rated output voltage 19.50 VDC 19.50 VDC
Temperature range:
  • Operating
0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
  • Storage
–40°C to 70°C (–40°F to 158°F) –40°C to 70°C (–40°F to 158°F)

Battery

Table 17. Battery specifications

Description Values
Type 3-cell "smart" lithium-ion (42 WHr)
Voltage 11.40 VDC
Weight (maximum) 0.2 kg (0.44 lb)
Dimensions:
  • Height
5.90 mm (0.24 in.)
  • Width
175.37 mm (6.9 in.)
  • Depth
90.73 mm (3.57 in.)
Temperature range:
  • Operating
0°C to 35°C (32°F to 95°F)
  • Storage
–40°C to 65°C (–40°F to 149°F)
Operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Charging time (approximate)

4 hours (when the computer is off)

warning NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on https://www.dell.com/

Life span (approximate) 300 discharge/charge cycles
Coin-cell battery CR-2032
Operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Display

Table 18. Display specifications

Description Values
Type
  • 15.6-inch HD
  • 15.6-inch FHD (optional)
  • 15.6-inch HD touch (optional)
  • 15.6-inch FHD touch (optional)
Panel technology Twisted nematic (TN)
Luminance (typical) 220 nits
Dimensions (active area):
  • Height
344 mm (13.54 in.)
  • Width
194 mm (7.64 in.)
  • Diagonal
395 mm (15.55 in.)
Native resolution
  • 1366 x 768 (HD)
  • 1920 x 1080 (FHD, optional)
  • 1366 x 768 (HD touch, optional)
  • 1920 x 1080 (FHD touch, optional)
Megapixels 1.0
Pixels Per Inch (PPI) 100
Contrast ratio (min) 400:1
Response time (max) 25 ms
Refresh rate 60 Hz
Horizontal view angle
  • Left: 40 degrees
  • Right: 40 degrees
Vertical view angle
  • Top: 10 degrees
  • Bottom: 30 degrees
Pixel pitch 0.252 mm
Power consumption (maximum) 3.7 W
Anti-glare vs glossy finish
  • Glossy
  • Anti-glare (optional)
Touch options Supported

Fingerprint reader (optional)

Table 19. Fingerprint reader specifications

Description Values
Sensor technology Capacitive
Sensor resolution 500 PPI
Sensor area 5.50 mm x 4.50 mm (0.22 in. x 0.17 in.)
Sensor pixel size 108 pixels x 88 pixels

Video

Table 20. Video specifications

Discrete graphics
Controller External display support Memory size Memory type
  • AMD Radeon 520
  • AMD Radeon 535
One HDMI port 2 GB GDDR5
  • Intel UHD Graphics 620
  • Intel UHD Graphics 610
One HDMI port Shared system memory
  • 8 th Generation Intel Core i3/i5/i7
  • 7 th Generation Intel Core i3/i5/i7
  • Intel Pentium Processor 4000 Series
  • Intel Celeron Gold Processor 3000 Series

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 22. Computer environment

Operating Storage
Temperature range 0°C to 40°C (32°F to 104°F) –40°C to 65°C (–40°F to 149°F)
Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-condensing)
Vibration (maximum)* 0.66 GRMS 1.30 GRMS
Shock (maximum) 140 G† 160 G‡
Altitude (maximum) 0 m to 3,048 m (0 ft to 10,000 ft) 0 m to 10,668 m (0 ft to 35,000 ft)

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse when the hard drive is in use.

‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position.

Keyboard shortcuts

warning NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

warning NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 23. List of keyboard shortcuts
List of keyboard shortcuts - Part 1
The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 24. List of keyboard shortcutsList of keyboard shortcuts - Part 2

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 25. Self-help resources

Self-help resources Resource location
Information about Dell products and services www.dell.com
My Dell
Tips
Contact Support In Windows search, type Contact Support, and press Enter.
Online help for operating system www.dell.com/support/windows
www.dell.com/support/linux
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on. www.dell.com/support
Dell knowledge base articles for a variety of computer concerns.
  1. Go to www.dell.com/support.
  2. Type the subject or keyword in the Search box.
  3. Click Search to retrieve the related articles.
Learn and know the following information about your product:
  • Product specifications
  • Operating system
  • Setting up and using your product
  • Data backup
  • Troubleshooting and diagnostics
  • Factory and system restore
  • BIOS information

See Me and My Dell at www.dell.com/support/manuals.

To locate the Me and My Dell relevant to your product, identify your product through one of the following:

  • Select Detect Product.
  • Locate your product through the drop-down menu under View Products.
  • Enter the Service Tag number or Product ID in the search bar.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

warning NOTE: Availability varies by country and product, and some services may not be available in your country.

warning NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Notes, cautions, and warnings

warning NOTE:
A NOTE indicates important information that helps you make better use of your product.


A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.


A WARNING indicates a potential for property damage, personal injury, or death.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dell Inspiron 3581 (P75F) Manual

Advertisement

Need help?

Need help?

Do you have a question about the Inspiron 3581 and is the answer not in the manual?

Questions and answers

Table of Contents
