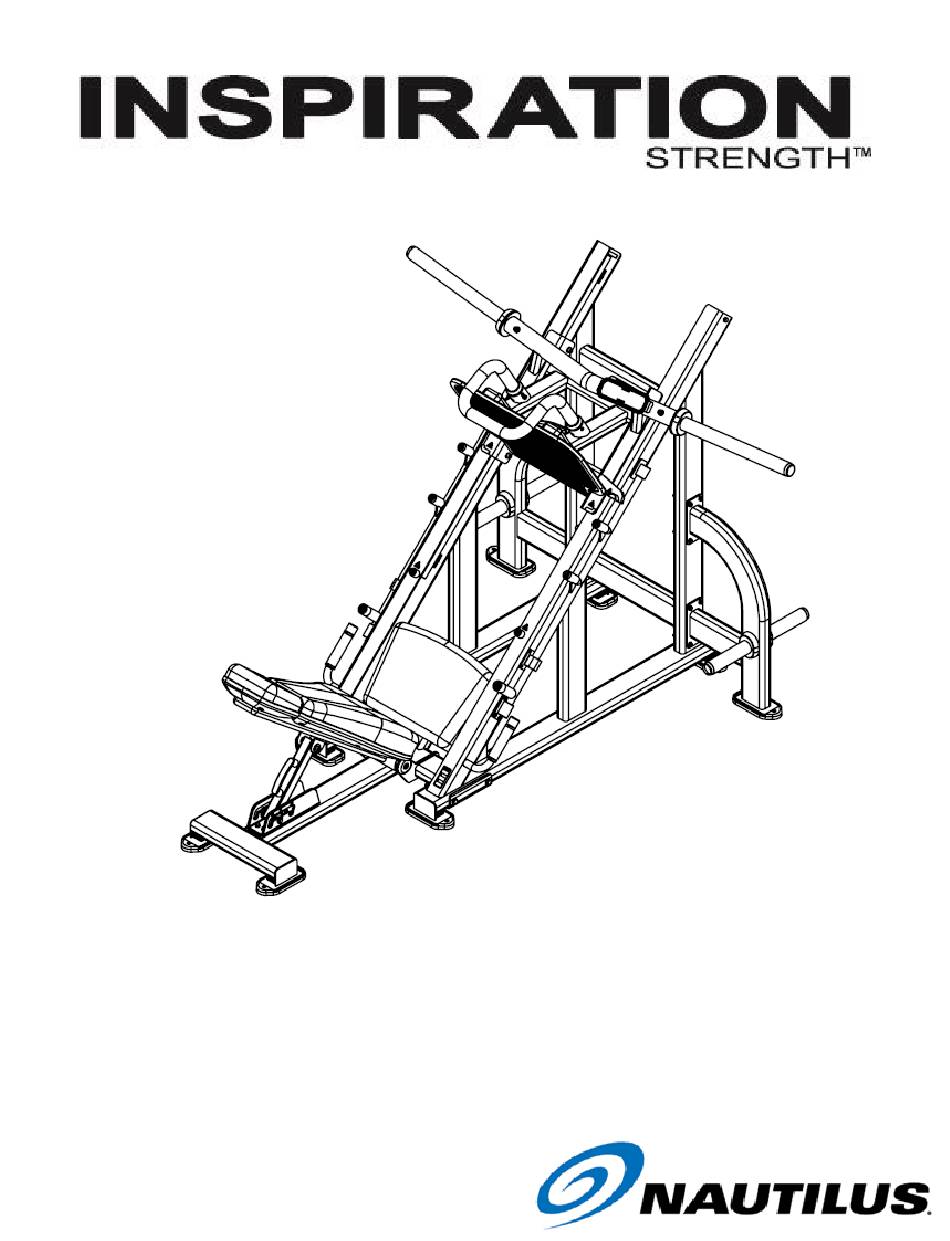

- Page 1 NP-L1141 ANGLED LEG PRESS OWNER’S MANUAL and INSTALLATION INSTRUCTIONS...
- Page 2 Angled Leg Press Owner’s Manual Copyright 2016. Core Health and Fitness, LLC. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Core Health and Fitness, LLC. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
-
Page 3: Table Of Contents
TABLE OF CONTENTS • SAFETY INSTRUCTIONS / WARNINGS • EXERCISE GUIDELINES • INSTALLATION INSTRUCTIONS • ASSEMBLY DRAWINGS • PARTS IDENTIFICATION LIST • WARNING LABLES WITH PART NUMBERS • DIMENSIONS • FINAL ASSEMBLY CHECKLIST • MAINTENANCE AND SERVICE Page 3... -
Page 4: Proper Usage
Proper Usage Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Nautilus equipment be used properly to avoid injury. Keep hands and feet clear at all times from moving parts to avoid injury. -
Page 5: Check For Damaged Parts
Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Nautilus will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made. - Page 6 20. Routinely inspect all fasteners that join attachments and framework tighten as needed to maintain the integrity of the unit. 21. Perform regular maintenance checks on the NAUTILUS equipment. Also, pay close attention to all areas most susceptible to wear.
-
Page 7: Exercise Guidelines
Also, be certain that all the stickers (safety, instructional and/or other) are read and understood by each user. • All users should be instructed on the proper use of NAUTILUS as well as those actions that should be avoided. •... -
Page 8: Installation Instructions
Nyloc nut is used.) • All NAUTILUS Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts. • This Installation Instructions Manual must be used in conjunction with the equipment’s Owner’s Manual. The Owner’s manual describes equipment setup and instructs members on how to use it correctly and safely. -
Page 9: Assembly Drawings
Assembly of Main Frame Page 9... - Page 10 Assembly of Seat Frame Page 10...
- Page 11 Assembly of Weight Carriage Page 11...
-
Page 12: Parts Identification List
Hardware and Parts Identification Page 12... - Page 13 Hardware and Parts Identification - Continued Page 13...
-
Page 14: Warning Lables With Part Numbers
Warning labels and communication stickers The following pages show examples of the Nautilus® Plate Loaded Strength warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. -
Page 15: Dimensions
Dimensions Page 15... -
Page 16: Final Assembly Checklist
1. Perform all steps. MACHINE CLEARANCE AND SPACING For the safe operation of NAUTILUS® Strength recommends that a clearance of 24 inches (60.96cm) be maintained between and behind machines including moving arms and levers. To insure safe entry and exit to each unit a walkway of at least 36 inches (91.44cm) inches is recommended front of, or on the entry side of each machine. -
Page 17: Maintenance And Service
MAINTENANCE AND SERVICE The Angled Leg Press requires very little upkeep. To keep it performing at its best, the following guidelines are suggested. GENERAL CLEANING Wipe the equipment with a light all-purpose cleaner, such as diluted Simple Green at a 30:1 solution. -
Page 18: Customer Support
MANUFACTURER 4400 NE 77 Avenue, Suite 300, Vancouver, WA 98662 USA Tel +1 (888) 678-2476 www.corehandf.com CUSTOMER SUPPORT Contact your local distributor, or Core Health & Fitness directly at: Tel +1-800-503-1221 www.support@corehandf.com Part Number: 620-8459, Rev A.
