2018 Control Head
Owner's Operation, Installation &
Maintenance Manual
Kobelt Manufacturing Co. Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2018 and is the answer not in the manual?

Questions and answers

Related Manuals for Kobelt 2018

Summary of Contents for Kobelt 2018

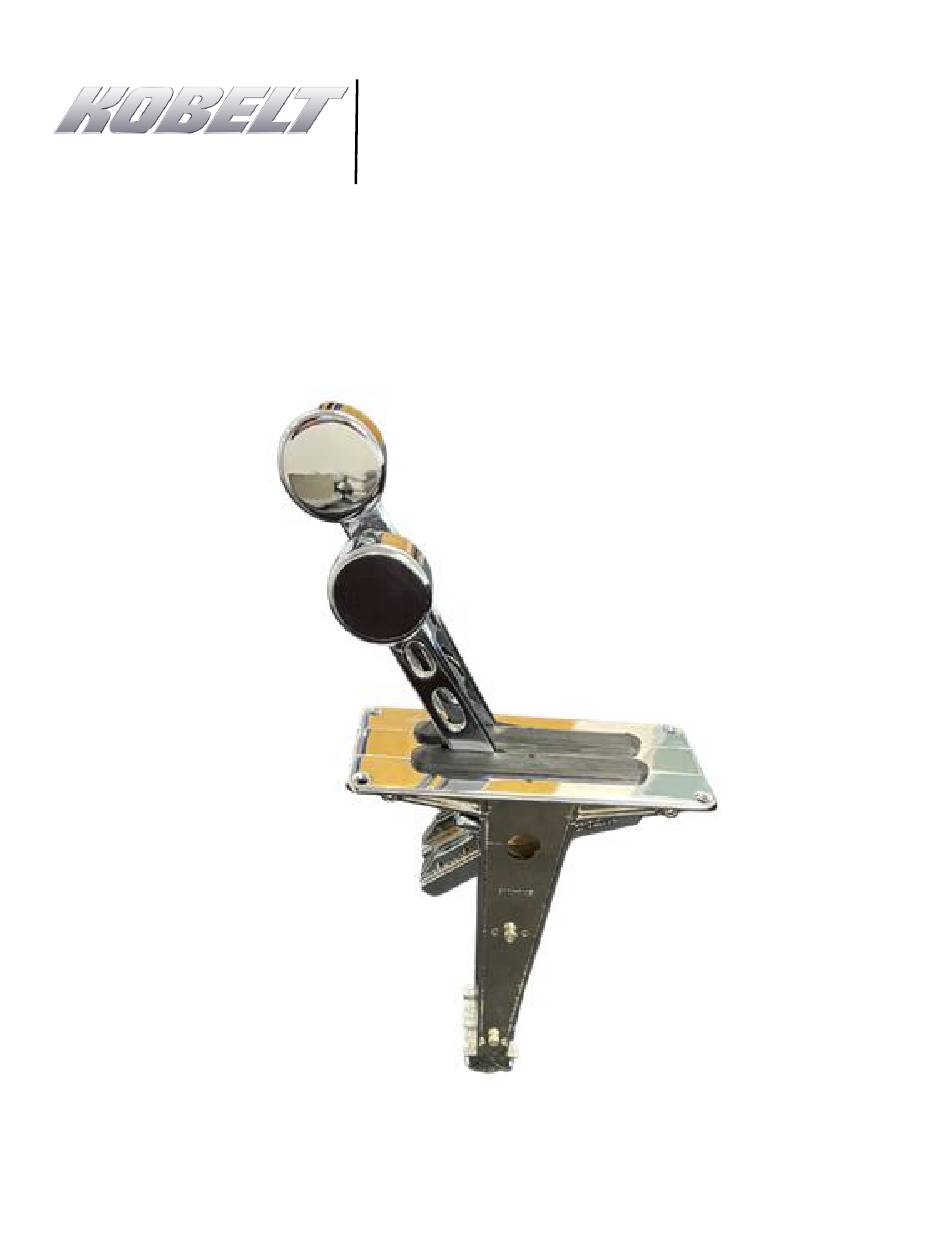

  • Page 1 2018 Control Head Owner’s Operation, Installation & Maintenance Manual Kobelt Manufacturing Co. Ltd.
  • Page 2 2018 Control Head Kobelt Manufacturing Co. Ltd. NOTES RECORD DATA BEFORE INSTALLATION FOR FUTURE REFERENCE Model #: Serial #: Date of Purchase: Date of Installation: Rev A MNL-2018 2 of 25...

  • Page 3: Table Of Contents

    2018 Control Head Kobelt Manufacturing Co. Ltd. Table of Contents Introduction ........................4 Contact ............................4 Safety ............................4 1.2.1 Safety Alerts ..........................4 1.2.2 Notice to Installer ........................4 1.2.3 Product Hazards ........................5 Product Description .......................6 Overview ............................6 Technical Data ..........................

  • Page 4: Introduction

    This document is intended to clearly present comprehensive product data and provide technical information to assist the end user in design applications. Kobelt reserves the right, without notice, to change the design, or construction, of any products and to discontinue or limit distribution of any products.

  • Page 5: 1.2.3 Product Hazards

    Ensure that all power sources are locked out prior to performing work. Pinch Points: The 2018 control head contains pinch points, which can cause bodily harm. Ensure that hands and fingers remain clear of the pinch points when performing work.

  • Page 6: Product Description

    ESCRIPTION VERVIEW The Kobelt model 2018 is a single function, stackable push pull control head. It can be used in single or multi-engine configurations and has up to 3.00[inches] of available stroke. Each handle may be configured for clutch or throttle control with the following options available:...

  • Page 7: Technical Data

    2018 Control Head Kobelt Manufacturing Co. Ltd. ECHNICAL Handle Travel: +/- 38 Pin position 2.14 in 2.61 in 3.08 in Cable stroke [54 mm] [66 mm] [78 mm] Max output force • 110 lbf 91 lbf 77 lbf Short handle...

  • Page 8: Model Code Key

    2018 Control Head Kobelt Manufacturing Co. Ltd. ODEL The 2018 control head can be configured in several different ways. Below is a key defining the letter code options: 1) Neutral safety switch must have a detented handle. Rev A MNL-2018...

  • Page 9: Installation

    3.2.1 Hardware The 2018 control head can be used with either 30 series or 40 series control cable. Kobelt Manufacturing does not recommend solid core cables. A solid core cable would consist of a single wire that is too stiff. Multi-stranded cores are more flexible and therefore generates less friction during operation.

  • Page 10: Cable Routing

    3.2.3 Control Head Connection The 2018 control head has a cam mechanism for actuating the clutch or throttle that permits the cable to be installed in either push or pull configuration. The clutch valve mechanism on most marine transmission requires approximately 2¾” (70 mm) to 3” (76 mm) of travel.

  • Page 11: Actuator End Connection

    (C). When connecting the actuating end of the cable to a spool valve such as the Kobelt 4605 servo cylinder, maximum cable life and efficiency is achieved when the cable is aligned with the lever in two planes. Reference the figure at right:...

  • Page 12: Electrical

    Kobelt Manufacturing Co. Ltd. LECTRICAL 3.3.1 Neutral safety kit The 2018 control head is available with an optional neutral safety switch. The switch attaches to mounting holes on the control head support. Ensure the microswitch firmly ‘clicks’ when the handle is in the neutral position.

  • Page 13: Commissioning

    2018 Control Head Kobelt Manufacturing Co. Ltd. OMMISSIONING NSPECTION Before putting the control head into operation, check the cable connections at each end to ensure that there is side clearance between the sleeve and the core rod and no misalignment at either the clamp or the control head which will make the cable stiff.

  • Page 14: Maintenance

    2018 Control Head Kobelt Manufacturing Co. Ltd. AINTENANCE REVENTATIVE AINTENANCE • Quarterly (4 times per year) o Ensure that the throttle friction adjustment is adequate. • Every 2 years o Inspect cable for wear o Lubricate handle bearings o Lubricate handle boot o Inspect throttle &...

  • Page 15: Inspection

    2018 Control Head Kobelt Manufacturing Co. Ltd. Figure 2: Lubrication instructions NSPECTION When a cable core is pushed, it will take the longest route and, conversely, when pulled, it will take the shortest route. This appears as ‘lost motion’ at the actuation end. The cable stroke must be measured periodically to confirm adequate stroke.

  • Page 16: Recommended Spare Parts And Kits

    When purchasing spare parts refer to Appendix B: Parts List at the back of this manual for Kobelt component Part Numbers. It is recommended that any required service work on a Kobelt unit be performed by a factory authorized service representative.

  • Page 17: Warranty

    Buyer. Kobelt’s sole obligation to the Applicant will be to repair or replace the defective part with same or similar product, to a maximum value of the list price of the product or part. The Kobelt warranty does not cover labour charges, travel or any other associated expenses.

  • Page 18: Appendix A: Installation Dimensions

    Kobelt Manufacturing Co. Ltd. A: I PPENDIX NSTALLATION IMENSIONS Refer to Figure 3 for installation dimensions of 2-handle 2018 control head. Use Table 4 for dimensions of various handle configurations. Figure 3: 2018 Installation Dimensions Rev A MNL-2018 18 of 25...
  • Page 19 2018 Control Head Kobelt Manufacturing Co. Ltd. Table 4: Installation dimensions for various handle configurations Dimension Number of Handles 1 Handle 1.63 in 1.50 in 2.25 in [41.4 mm] [38.1 mm] [57.2 mm] 2 Handle 2.73 in 2.60 in 3.35 in [69.3 mm]...

  • Page 20: Appendix B: Parts List

    2018 Control Head Kobelt Manufacturing Co. Ltd. B: P PPENDIX ARTS 2018-MMC Rev A MNL-2018 20 of 25...
  • Page 21 2018 Control Head Kobelt Manufacturing Co. Ltd. ITEM QTY. PART NUMBER DESCRIPTION 2023-0011-M KNOB; BLACK 1009-1006 SCREW, FLAT HD, PHL, 1/4-20 X 3/8, 18-8 2019-1002-M HANDLE; LONG, NO TUBE, STR., FLAT BLACK 2016-0003-M END SUPPORT, FLAT BLACK 2016-0004-M MIDDLE SUPPORT; FLAT BLACK...
  • Page 22 2018 Control Head Kobelt Manufacturing Co. Ltd. 2018-MMF Rev A MNL-2018 22 of 25...
  • Page 23 2018 Control Head Kobelt Manufacturing Co. Ltd. ITEM QTY. PART NUMBER DESCRIPTION 2023-0011-M KNOB; BLACK 1009-1006 SCREW, FLAT HD, PHL, 1/4-20 X 3/8, 18-8 2019-2002-M HANDLE; SHORT, NO TUBE, STR., BLACK FINISH 2016-0003-M END SUPPORT, FLAT BLACK 2016-0004-M MIDDLE SUPPORT; FLAT BLACK...

  • Page 24: Appendix C: Installation Cut-Out Template

    2018 Control Head Kobelt Manufacturing Co. Ltd. C: I PPENDIX NSTALLATION EMPLATE Figure 4: Two Handle Installation Cut-out Template Scale may not be exactly 1:1 due to PDF and printer scaling. Verify primary dimension with a ruler after printing and before using to cut.
  • Page 25 Kobelt Manufacturing Co. Ltd. 8238 129th Street Surrey, British Columbia, Canada, V3W 0A6 Sales Tel: +1-604-572-3935 Fax: +1-604-590-8313 Email: sales@kobelt.com Website: www.kobelt.com Made in Canada / Printed in Canada...
