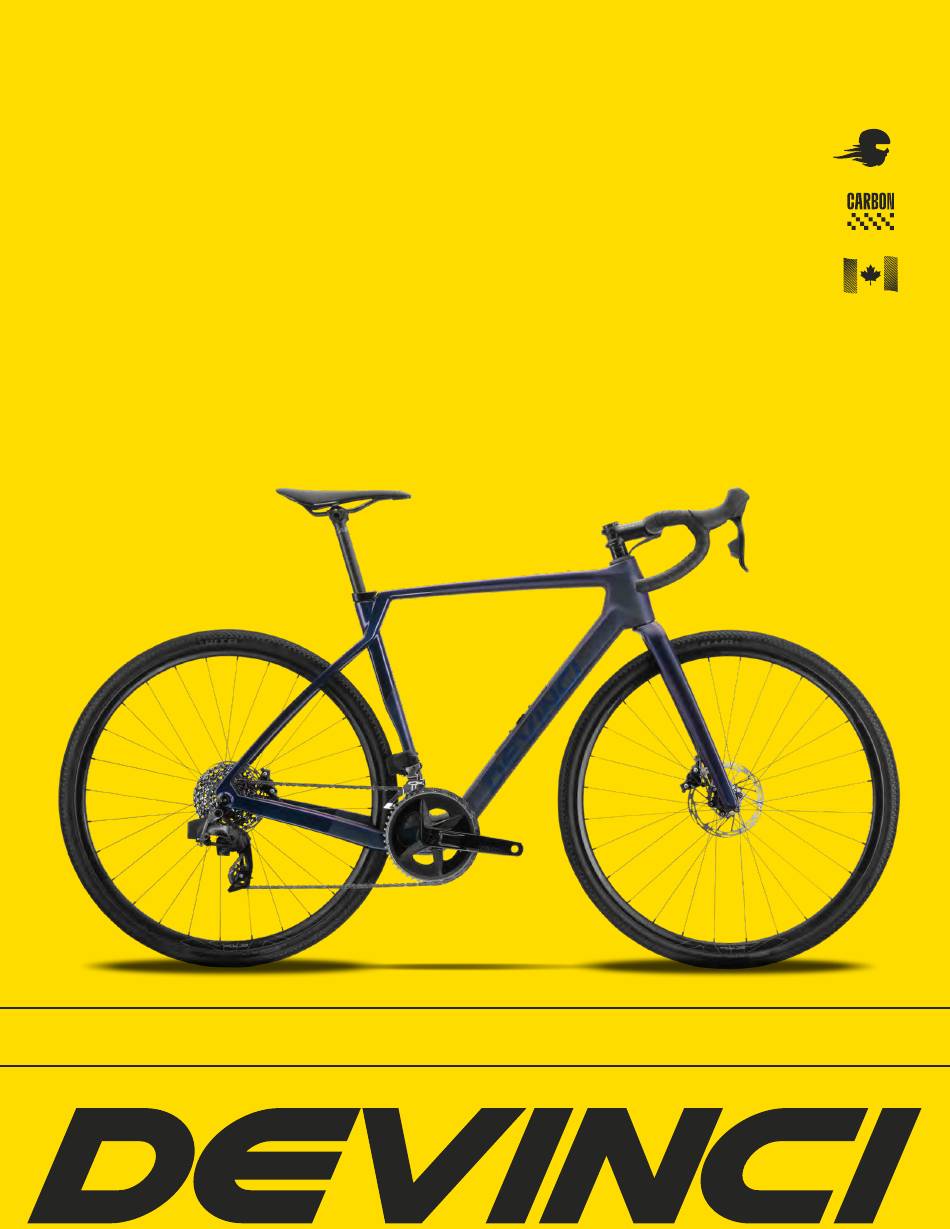

- Page 1 W E M AK E RI DE R S CHICOUTIMI, QUÉBEC HATCHET PRO 2025+ T E C H N I C A L M A N U A L...
- Page 2 For further information, please see the Devinci's User Manual available on www.Devinci.com or ask your authorized Devinci retailer. He will take the time to answer any questions you may have and will advise you with great pleasure. PLEASE READ BEFORE USING YOUR BIKE TABLE OF CONTENTS...
-
Page 3: Specifications
F R A M E T EC H N I CA L S P EC I F I CAT I O N S... - Page 4 FRAME SIZES AVAILABLE S | M | L | XL Technical specifications HEADTUBE DIMENSIONS 1. UPPER (S.H.I.S) IS52 1.5'' IS 2. LOWER (S.H.I.S) IS52 1.5'' IS BOTTOM BRACKET 1 | 7 3. STANDARD BB 386 EVO PF 4. FRONT DERAILLEUR MOUNT BRAZE-ON 5.
- Page 5 R O U T I N G...
-
Page 6: Cable Routing
CABLE ROUTING STEP 4 REAR BRAKE HOUSING STEP 1 | Insert the rear brake housing through the guide located on the top of the chainstay, on the left side. STEP 2 | Route the rear brake housing through the frame using the straw. STEP 3 | Pull the housing out through the head tube. - Page 7 CABLE ROUTING STEP 4 REAR DERAILLEUR HOUSING STEP 1 | Insert the rear derailleur housing through the cavity located on the upper right surface of the chainstay. STEP 2 | Route the rear derailleur housing through the frame using the straw. STEP 3 | Pull the housing out through the head tube.
- Page 8 CABLE ROUTING STEP 1 SEATPOST HOUSING STEP 1 | Insert the seatpost housing into the head tube through the cavity located on the left side. The seatpost housing must occupy the lower (smaller) cavity of the left rubber guide to be installed on the headset.
- Page 9 CABLE ROUTING STEP 3 FRONT DERAILLEUR HOUSING STEP 1 | Insert the front derailleur housing into the downtube through the cavity located at the bottom of the seat tube, just above the bottom bracket. STEP 2 | Slide the front derailleur housing into the downtube through the designated straw. STEP 3 | Pull the housing out through the left cavity of the headset.
- Page 10 CABLE ROUTING STEP 3 FRONT BRAKE HOUSING STEP 1 | Insert the housing through the left cavity at the bottom of the fork. STEP 2 | Insert the front brake housing into the fork through the straw. STEP 2 STEP 3 | Pull the front brake housing out through the left cavity of the headset.
-
Page 11: Cable Routing Overview
CABLE ROUTING OVERVIEW LEGEND Rear brake housing Rear derailleur housing Seatpost housing Front brake housing Front derailleur housing Routing outside the frame Routing inside the frame CABLE ROUTING → OVERVIEW CABLE ROUTING → OVERVIEW... -
Page 12: Service Kits
SERVICE KITS PARTIE → SECTION... - Page 13 SERVICE KITS KFC07801 | HEADSET KFC07802 | SEATCLAMP ITEMS PART # DESCRIPTION ITEMS PART # DESCRIPTION MAAH24003 Head set Accros AIF-557 MASC24001 Seat Clamp SERVICE PART - ROBERT AXLE PROJECT AVAILABLE AT ROBERTAXLEPROJECT.COM IDENTIFICATION SPECIFICATIONS 12MM THRU AXLE FOR TRAINER 160 to 172mm with 1.0 Thread The true length of the axle shaft is 172 mm, but can be shortened using the included spacers –...
- Page 14 KFC07803 | PROTECTORS KFC07804 | AXLES ITEMS PART # DESCRIPTION ITEMS PART # DESCRIPTION MACP24006 FD Hanger Cover Open Road MAAX24001 Front Thru Axle M12x1.0x100mm (118.5) MACP24007 CS Protecteur Vinyl Clear MAAX24003 Rear Thru Axle M12x1.0x165.5mm UDH SERVICE KIT → PROTECTORS SERVICE KIT →...
- Page 15 KFC07805 | FRONT DERAILLEUR HANGER KFC07806 | UNIVERSAL DERAILLEUR HANGER ITEMS PART # DESCRIPTION ITEMS PART # DESCRIPTION MFD21005 FD Hanger Open Road MFD23003 UDH Hanger w/25mm washer SERVICE KIT → FRONT DERAILLEUR HANGER SERVICE KIT → UNIVERSAL DERAILLEUR HANGER...
- Page 16 KFC09006 | 'SHED' STORAGE ASSEMBLY KFC09007 | TOOL BAG FOR SHED STORAGE ITEMS PART # DESCRIPTION ITEMS PART # DESCRIPTION MPAC24001 PORTE DE RANGEMENT ASSEMBLÉE MFP24031 Tool bag MFP24027 SYSTEM DOOR MFP24028 MECANISM COVER MFP24029 SYSTEM LOCK MFV097132 FLAT HEAD THREAD FORMING SCREW FOR PLASTIC, #4 X 3/8" MFV07003-01 ALLEN BUTTON SCREW M5x0.8 X 12 MFP24030...
-
Page 17: Warranty
W A R R A N T Y PARTIE → SECTION... -
Page 18: Warranty Claim
→ For subsequent owners: With regard to the exercising of rights resulting from the present warranty, the buyer of a devinci frame • Frames are covered for three (3) years from the original date of purchase. - Page 19 Head Office 1555 Manic Chicoutimi (Quebec) Canada G7K 1G8 www.devinci.com...
