devinci E-TROY Technical Manual

Hide thumbs Also See for E-TROY:

Advertisement

Quick Links

Download this manual
W E M AK E RI DE R S
CHICOUTIMI, QUÉBEC
E-TROY 2023+
T E C H N I C A L M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-TROY and is the answer not in the manual?

Questions and answers

Related Manuals for devinci E-TROY

Summary of Contents for devinci E-TROY

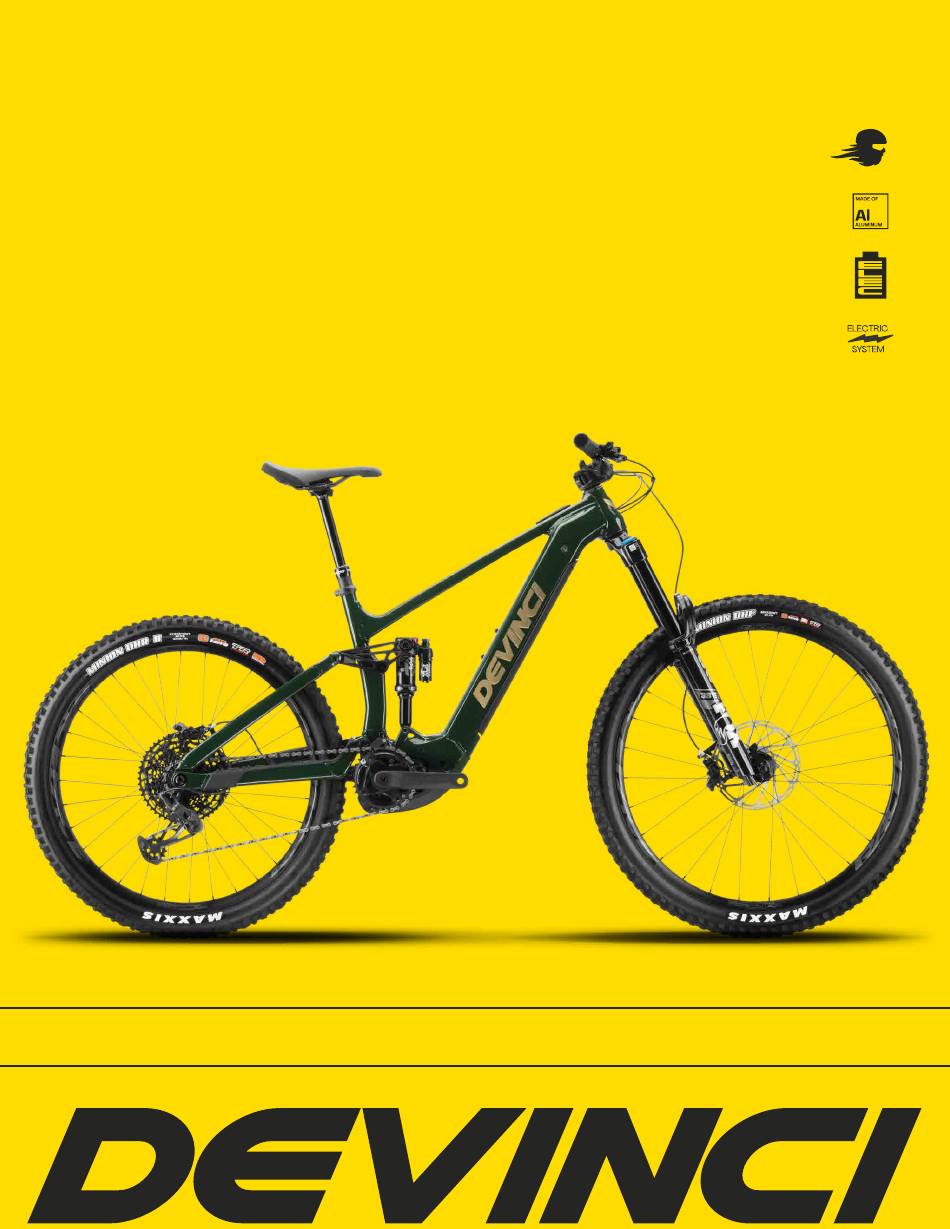

  • Page 1 W E M AK E RI DE R S CHICOUTIMI, QUÉBEC E-TROY 2023+ T E C H N I C A L M A N U A L...
  • Page 2 TAKES...
  • Page 3 RIDE...
  • Page 4 In very rare cases, the consequences of an electrical shock could lead to a fire. In case of doubt, have the battery inspected by an authorized Devinci retailer. Perform maintenance of the battery as mentioned in the Technical Manual.
  • Page 5 PAB with your transport company before booking. Visit your authorized Devinci retailer for regular maintenance of your new PAB : • Only your retailer has the know-how and the proper equipment to maintain your PAB.
  • Page 6 Bosch user manual available on https://www.bosch-ebike.com/en/help-center/manuals, or you can ask your authorized Devinci retailer. He will take the time to answer any questions you may have and will advise you with great pleasure. PLEASE READ BEFORE USING YOUR BIKE...
  • Page 7 TABLE OF CONTENTS FRAME: TECHNICAL SPECIFICATIONS CABLE ROUTING SERVICE KIT DEVINCI'S RIDE IN PEACE WARRANTY TABLE OF CONTENTS...
  • Page 9 F R A M E TECH NI CA L S P EC IF ICAT IO N S...
  • Page 10 13. MAX ROTOR SIZE COMPATIBLE (FRAME) 220 mm ACCESSOIRIES 14. PROTECTORS COMPATIBILITY INFO (BASED ON SIZE MEDIUM) E-TROY | FORK 160 MM | TRAVEL 150MM 15. FRONT SUSPENSION TRAVEL & SAG 160 mm 16. FORK AXLE-TO-CROWN & OFFSET 17. FRONT & REAR WHEEL GEOMETRY 18.
  • Page 11 10 & 11 5 & 6 12 & 13 FRAME → TECHNICAL SPECIFICATION_PLAN...
  • Page 13 R O U T I N G...
  • Page 14 STEP 1 STEP 3 STEP 2 LEGEND Speed sensor cable Cable outside the frame Cable inside the frame CABLE ROUTING_SPEED SENSOR CABLE → PLAN...
  • Page 15 CABLE ROUTING SPEED SENSOR CABLE STEP 1 | insert the speed sensor cable into the cavity located on the left inner side of the base, at the back of the bike. Pass the cable through the base until it regresses through the cavity at the front. STEP 2 | Insert the cable into the motor shell through the left cavity located at the bottom of the seat tube.
  • Page 16 STEP 4 STEP 1 STEP 2 STEP 3 LEGEND Rear brake housing Housing outside the frame Housing inside the frame CABLE ROUTING_REAR BRAKE HOUSING → PLAN...
  • Page 17 CABLE ROUTING REAR BRAKE HOUSING STEP 1 | Make sure the stopper is in place on the inner center cavity of the base, then insert the rear brake housing through the stopper and feed it through the chainstay. Pull it out from the cavity in the located at the front of the chainstay.
  • Page 18 STEP 5 STEP 3 STEP 2 STEP 1 STEP 4 LEGEND Rear derailleur housing Housing outside the frame Housing inside the frame CABLE ROUTING_REAR DERAILLEUR HOUSING → PLAN...
  • Page 19 Slide the rear derailleur housing through the left side of the down tube up to the steering column. → For the E-Troy Led Controller model, slide an anti-impact foam on the housing down to the down tube before inserting the housing into the steering column.
  • Page 20 STEP 1 STEP 3 STEP 2 LEGEND Seat post housing Housing outside the frame Housing inside the frame CABLE ROUTING_SEAT POST HOUSING → PLAN...
  • Page 21 CABLE ROUTING SEAT POST HOUSING STEP 1 | Insert the seat post housing into the stopper located on the right side of the steering column. Insert the housing in the down tube through the oval opening located on the inside right side of the steering column.
  • Page 22 STEP 1 & 2 STEP 1 STEP 2 LEGEND Console power cable E-Troy Purion/Kiox_Insert the Cable outside the frame cable through the cavity located Cable inside the frame on the right side of the down tube. CABLE ROUTING_CONSOLE POWER CABLE → PLAN...
  • Page 23 E-Troy Led controller → Insert the cable through the cavity located on the top of the top tube. E-Troy Purion/Kiox → Insert the cable through the cavity located at the top of the right side of the down tube. ÉTAPE 2 | E-Troy Led controller →...
  • Page 24 STEP 1 STEP 2 LEGEND Charging port cable Cable outside the frame Cable inside the frame CABLE ROUTING_CHARGING PORT CABLE → PLAN...
  • Page 25 CABLE ROUTING CHARGING PORT CABLE STEP 1 | Position the charging port cable connector in its base located at the bottom of the down tube. Secure it using the screws provided. STEP 2 | Route the rest of the charging port cable up to the motor shell. Make sure that the cables intended to be connected to the motor do not interfere with its insertion into the shell by storing them against the upper wall.
  • Page 26 CABLE ROUTING OVERVIEW E-Troy Purion/Kiox E-Troy Led Controller CABLE ROUTING → OVERVIEW...
  • Page 27 LEGEND Rear brake housing Rear derailleur housing Seat post housing Charging port cable Console power cable Speed sensor cable Cable/housing outside the frame Cable/housing inside the frame Anti-impact foam CABLE ROUTING → OVERVIEW...
  • Page 29 S E R V I C E K I T...
  • Page 30 SERVICE KFC08902 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MFP21016 BALL BEARING MR20307 20x30x7; STD TYPE, DOUBLE LIP MFP24014 BEARING 6900 WITH EXTENDED INNER CAGE MFP19001 BALL BEARING 3801 LLU MAX 12x21x8 SERVICE KIT...
  • Page 31 KFC08909 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MFB24001 CABLE GUIDE 5mm MFB19008 CABLE GUIDE 5mm KFC05602 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION KFC04501 Chainsaw Cable Guide Kit SERVICE KIT...
  • Page 32 SERVICE KFC08903 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MFP24012 CS PIVOT SPACER E-MTB MFV24016 PIVOT SCREW M12 x 1.0 x 21mm MFP24010 LINKAGE PIVOT SHAFT E-MTB SL MFV24012 SOCKET FLAT SCREW M8x1.25 X 20mm MFV24008 PIVOT WASHER MFP24009 PIVOT NUT FOR MR 20307 BEARING...
  • Page 33 KFC08905 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MACV24007 MOTOR PROTECTION COVER BOSCH CX MFV00165-01 SOCKET BUTTON SCREW M4x0.7 X 10mm B18.3.1M - 4 x 0.7 x 16 Hex SHCS - 16SHX Socket cap screw M4X0.7X16mm KFC08901 E-TROY BOSCH 2023+...
  • Page 34 SERVICE KFC08907 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MACV24008 BATTERY COVER BOSCH 625 MFV23010 FLAT WASHER M3, ID3.2mm, OD6mm, SS MFV24048 PAN HEAD PHILLIPS SCREW M3x0.5 X 8mm MFV24049 THIN SQUARE NUT M3 SERVICE KIT...
  • Page 35 KFC08908 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MACP24005 CS PROTECTOR 072-9800 KFC08906 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MACV24008 BATTERY COVER BOSCH 625 MFV23010 FLAT WASHER M3, ID3.2mm,OD6mm, SS MFV24048 PAN HEAD PHILLIPS SCREW M3x0.5 X 8mm SERVICE KIT...
  • Page 36 SERVICE KFC08906 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MACV24008 BATTERY COVER BOSCH 625 MFV23010 FLAT WASHER M3, ID3.2MM, OD6MM, SS MFV24048 PAN HEAD PHILLIPS SCREW M3 x 0.5 x 8MM MFV094314-USI FLAT WASHER M3, ID3.2MM MACHINED SERVICE KIT...
  • Page 37 KFC08911 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MFL24003 089-096 RIGHT LINKAGE KFC08906 E-TROY BOSCH 2023+ ITEMS PART # DESCRIPTION MACV24008 BATTERY COVER BOSCH 625 MFV23010 FLAT WASHER M3, ID3.2mm,OD6mm, SS MFV24048 PAN HEAD PHILLIPS SCREW M3x0.5 X 8mm SERVICE KIT...
  • Page 39 W A R R A N T Y...
  • Page 40 EXCHANGE POLICY IN CASE OF ACCIDENT Devinci is aware that the purchase of a high performance bicycle is done with the heart. This is why our cus- tomer service applies an exchange policy at a low price to accommodate claims that would have been refused for one of the reasons mentioned in the section “warranty exclusions”.
  • Page 41 → Parts not supplied by devinci with the bicycle or not indicated in the user’s manual for all frames or the tech- nical manual for the frames with double suspension were used;...
  • Page 42 Siège social 1555 Manic Chicoutimi (Quebec) Canada G7K 1G8 www.devinci.com...
