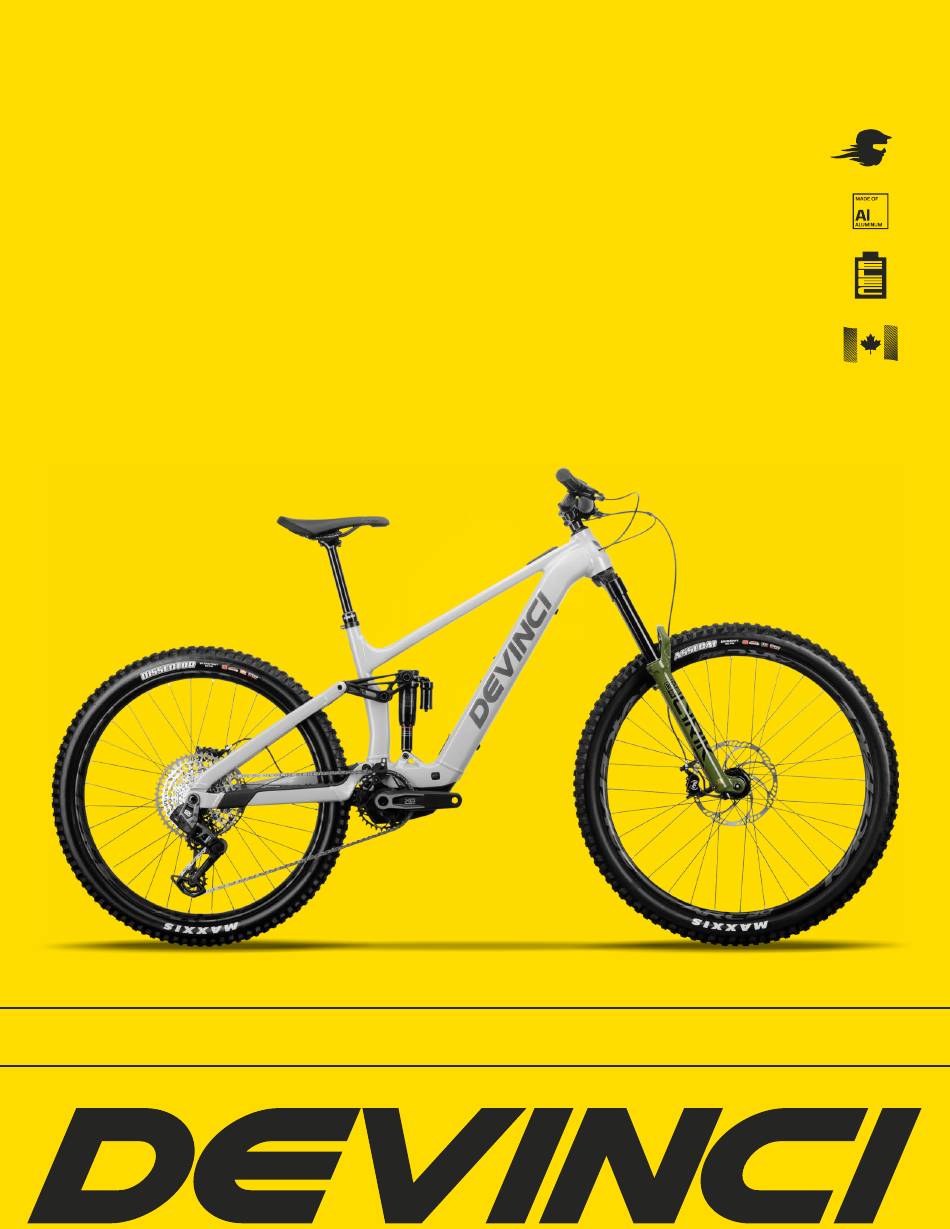

- Page 1 W E M AK E RI DE R S CHICOUTIMI, QUÉBEC E-TROY LITE 2024+ T E C H N I C A L M A N U A L...
- Page 2 LET YOUR INNER RIDER RIDE FREE...
- Page 3 Visit your authorized Devinci retailer for regular maintenance of your new PAB : shock could lead to a fire. In case of doubt, have the battery inspected by an authorized Devinci retailer. • Only your retailer has the know-how and the proper equipment to maintain your PAB.
- Page 4 SERVICE KIT Your authorized Devinci retailer is at your service to guide your choices of bike and accessories which are best suited to the style of biking you wish to perform. This will help you maintain your equipment in good condition so that you can take full advantage of your investment.
- Page 5 F R A M E T EC H N I CA L S P EC I F I CAT I ON S * DISCLAIMER: We are testing many different tires to establish a clearance number that cover a wide spectrum of tires with appropriate frame clearance.
- Page 6 185 x 55 mm COMPATIBLE IN THE LOWER POSITION: THIS POSITION WOULD DAMAGE THE 18. SHOCK PIGGYBACK COMPATIBILITY SHOCK ABSORBER AS WELL AS THE POWERMORE. DEVINCI DISCLAIMS ANY RESPONSIBILITY FOR IMPROPER INSTALLATION THAT WOULD CAUSE DAMAGE 19. SPRING TYPE COMPATIBILITY Air &...
- Page 7 R O U T I N G...
- Page 8 CABLE ROUTING STEP 1 CONSOLE POWER CABLE STEP 1 | Insert the electrical cable through the cavity located on the top of the top tube. STEP 2 | Insert the console electrical cable into the downtube through the cavity located at the junction between the top tube and the downtube.
- Page 9 CABLE ROUTING CHARGING PORT & POWER SUPPLY CABLES STEP 2 STEP 1 | Assemble the charging port cable to the power supply cable. Slide and secure the battery into the diagonal, ensuring that the console power cable passes over the top of the battery, to the right of the water bottle cage rivets.
- Page 10 CABLE ROUTING SPEED SENSOR CABLE STEP 1 | Insert the speed sensor cable into the cavity located on the inner left side of the base, at the rear of the bike. Thread the cable through the base until it comes out through the cavity at the front. STEP 1 STEP 2 | Insert the cable into the motor shell through the left cavity located at the bottom of the seat tube.
- Page 11 CABLE ROUTING STEP 4 REAR BRAKE HOUSING Make sure that the battery is in place in the diagonal before beginning. STEP 1 | Make sure the rubber stopper is in place on the cavity located on the top of the base. Then, insert the rear brake housing through the stopper and feed it through to the cavity at the front of the base.
- Page 12 PASSAGE STEP 5 DE GAINES REAR DERAILLEUR HOUSING Make sure that the battery is in place in the diagonal before startin Tip → Slightly bend the end of the housing to ease its insertion into the base before starting. ÉTAPE 1 | Make sure the rubber stopper is in place on the cavity located under the right side of the base.
- Page 13 CABLE STEP 2 ROUTING SEAT POST HOUSING STEP 1 | Slide the foam anti-impact tube over the seat post housing, then insert it to the right of the battery into the diagonal until reaching the head tube. STEP 3 STEP 2 | Insert the seat post housing into the inner oval cavity of the right side of the head tube, then pull the housing out through the lower right stopper.
- Page 14 CABLE ROUTING OVERVIEW LEGEND Rear Brake Housing Rear Derailleur Housing Seat Post Housing Charging Port Cable Power Supply Cable Speed Sensor Cable Console Power Cable Cables outside the frame Cables inside the frame Anti-impact foam tube CABLE ROUTING → OVERVIEW CABLE ROUTING →...
- Page 15 S E R V I C E K I T S...
- Page 16 Pivot Washer MFV24012 Socket Flat Screw M8 x 1.25 x 20mm MFP24010 Shaft 12x73 MFP24012 Pivot Spacer 12x16x4 KFC07201 | KIT POWERMORE W/BOTTLE CAGE E-TROY LITE KFC07201 E-TROY LITE 2024+ ITEMS PART # DESCRIPTION MABT24030 Holder PowerMore | BOSCH MABT24031...
- Page 17 PowerMore 250 Wh | BOSCH MABT24040 Cable PowerMore 150 mm | BOSCH MFV24060 Screw M5x12 | BOSCH MAABC24001 Bottle Cage for PowerMore Holder KFC07203 | BATTERY MOUNT BOLT W/WASHER E-TROY LITE KFC07203 E-TROY LITE 2024+ ITEMS PART # DESCRIPTION MABT24030 Holder PowerMore | BOSCH...
- Page 18 MFP21016 BALL BEARING MR20307 20x30x7; STD TYPE, DOUBLE LIP MFP24014 BEARING 6900 WITH EXTENDED INNER CAGE MFP19001 BALL BEARING 3801 LLU MAX 12x21x8 KFC07206 | CHAINSTAY CABLE GUIDE E-TROY LITE KFC07206 E-TROY LITE 2024+ ITEMS PART # DESCRIPTION MFB19008 Cable Guide 5mm NOTE: NOT ALL 4 WASHER ARE NECESSARY.
- Page 19 KFC08901 E-TROY LITE 2024+ ITEMS PART # DESCRIPTION MFV21002 SOCKET CAP SCREW M10 x 1.0 x 48mm MFV24009 (Default) UPPER SHOCK SCREW E-MTB SL KFC08908 E-TROY LITE 2024+ ITEMS PART # DESCRIPTION MACP24005 CS PROTECTOR 072-9800 KFC08901 | SHOCK BOLT...
- Page 20 W A R R A N T Y PARTIE → SECTION...
- Page 21 → Parts not supplied by devinci with the bicycle or not indicated in the user’s manual for all frames or the tech- Any of these conditions may lead to random failure.
- Page 22 Siège social 1555 Manic Chicoutimi (Quebec) Canada G7K 1G8 www.devinci.com...
