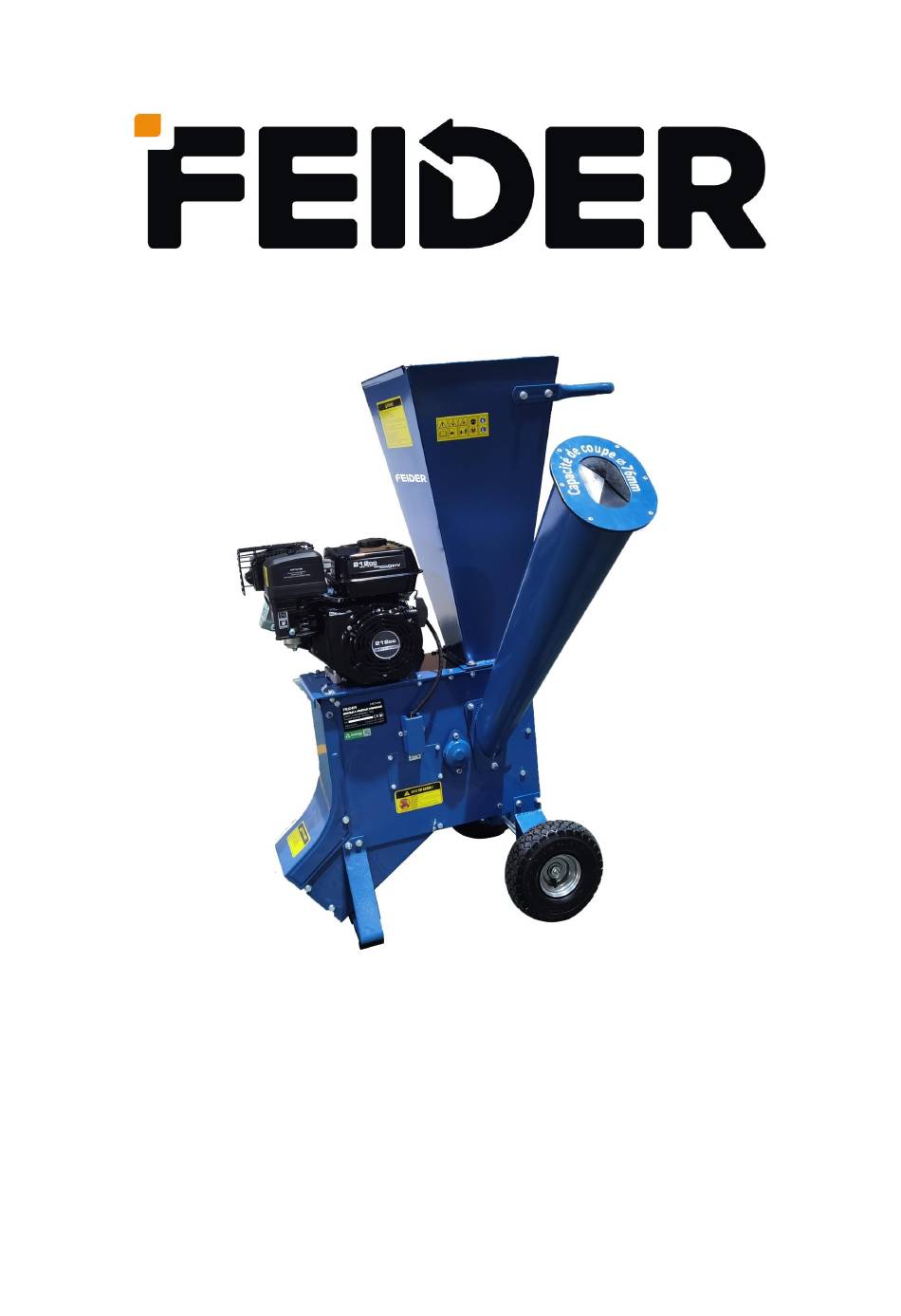

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL PLANT SHREDDER FBT196 INSTRUCTION MANUAL CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION............................3 2. SAFETY WARNINGS..........................3 3. SYMBOLS..............................5 4. MACHINE DESCRIPTION........................6 5. START UP INSTRUCTIONS........................7 6. MACHINE USAGE...........................13 7. MAINTENANCE............................14 8. TROUBLE SHOOTING........................... 17 9. TRANSPORT............................18 10. STORAGE...............................18 11. RECYCLING AND MACHINE DISPOSAL..................18 12. -
Page 3: Introduction
1. INTRODUCTION Thank you for choosing this machine. We are confident that you will appreciate the quality and performance of this machine. Warning! Read all safety warnings and all instructions. The failure to observe all warnings and instructions below can result in fire and / or serious injury. Before using this machine, carefully read the information in this manual on correct setup and safe techniques. - Page 4 If fuel is spilled, do not attempt to start the power source, but move the machine away from the area of spillage before starting; Always replace and securely tighten the fuel cap after refueling; If the fuel tank is drained, this should be done outdoors. Operation 1) Before starting the machine, look into the feeding chamber to make certain that it is empty;...
-
Page 5: Symbols
Additional safety instructions for units with bagging attachments a) Shut-off the power unit before attaching or removing the bag. Position the machine such that it is not necessary to work downwind of the exhaust. 3. SYMBOLS Warning labels indicate required information for the use of the machine. Warning: Danger! Caution: Read carefully the manual before use. -
Page 6: Machine Description
OFF (Machine cannot function). Warning: Hot surface! Risk of Burns. Oil Tank. Don’t put your hand into the machine. 4. MACHINE DESCRIPTION 4.1 CONDITIONS OF USE The chipper is only designed to shred pieces of wood. It is prohibited to shred any other material (for example metal, stones, plastics and any other material). -
Page 7: Technical Characteristics
4.3 TECHNICAL CHARACTERISTICS Model FBT196 Engine OHV 4-stroke 4.3kW 3600/min Displacement 212cc Fuel Type Unleaded Petrol Fuel Volume 3.6L Oil Type 10w-30 mineral Engine Oil Oil Volume 0.6L Cutting Capacity 76mm Blade Speed 2400/min Size 134*64*88cm Net weight 75kg Sound pressure level at operator’s ear L 95.5dB(A);... - Page 8 5.2 ASSEMBLY Step 1. - The fence was pre-mounted on the product, Firstly should remove fence from product for assemble the outlet hopper cover and support. Step 2. - Support feet and outlet hopper cover.
- Page 9 Step 3. -Assemble the fence. Step 4. -Wheel axle and wheels. Step 5. -Side feed hopper Step 6. -Attached transport handle.
-
Page 10: Filling The Fuel Tank
Step 7. - Optional choose (for just electrical starter engine) 5.3 FUEL AND OIL IMPORTANT: The fuel used for this machine is highly flammable. I the fuel or the machine ignites, put out the fire with a dry power extinguisher. Petrol and oil are extremely flammable and explosive under certain conditions. -
Page 11: Checkpoints Before Commissioning
This engine uses quality oil for 4-stroke, 10w-30 viscosity. Filling the oil sump: - Place the machine on a flat, horizontal and uncluttered surface. - Unscrew the oil filler cap. - Insert the filled 0.6L of oil tube for 6.5HP engine, 1.1L of oil tube for 15HP engine. - Wait 1 minute for the oil to completely go down to the crankcase. -
Page 12: Starting The Engine
The pieces of wood that might have got stuck transversally must only be removed when the machine has been stopped and the blades have stopped rotating. Transport of the machine should be carried out by two persons to avoid possible injuries. 5.4.2 STARTING THE ENGINE Before starting engine make sure check the engine oil and fuel tank. -
Page 13: Machine Usage
5.4.3 STOP THE ENGINE Note: If the machine should start to make an unusual noise, stop the machine immediately, allow the engine to cool and inspect thoroughly. 1. To stop the engine, turn the engine ON/OFF switch to the OFF position, as in Pic. 17 (17.1). 2. -
Page 14: Maintenance
6.2 SHREDDING BRANCHES, TWIGS & LEAVES A. Gather the brush, twigs or leaves and slowly place them into the Hopper. DO NOT try to stuff too much material in at one time or the machine will jam. B. Do not attempt to force the materials in. The machine is designed to quickly and safely take the branches from you. -
Page 15: Engine Oil Replacement
7.2 CLEANING It is strongly recommended to clean the machine after every use. After use, turn off the machine, allow the engine to cool fully, and remove the spark plug. Brush off or vacuum excess wood chippings and wipe off the remaining dust from the exterior of the machine with a dry cloth. -
Page 16: Air Filter
7.3.3 AIR FILTER After approximately 100 hours of use, or every month (whichever is sooner), the Air Filter should be removed and cleaned thoroughly. The Air Filter is displayed in Pic.22. During this cleaning process, the Air Filter should also be thoroughly inspected for damage and deterioration. -
Page 17: Periodic Maintenance
3. Roll the belt off from the pulleys and install the new belt. 4. Replace the V-belt cover and re-attached the spark plug wire. 7.6 PERIODIC MAINTENANCE Perform regular inspections of the machine in order to ensure effective operation of the machine and prevent risk of injury to machine and user. -
Page 18: Transport
State fuel, water or dirt in fuel, Drain the fuel tank, clean out the fuel blocked fuel line line, and fill the tank with fresh gas Chips and sawdust around the Clean off the motor Engine motor overheats Dirty air filter Clean out the air filter Check the blades, hammers, impeller, Machine... -
Page 19: Declaration Of Conformity
SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Declare that the following tool: Petrol Plant Shredder FBT196 Serial number: 20250605299-20250605796 Is in conformity with the requirements of the Directive Machine 2006/42/EC and to the followings Europeans Directives:... -
Page 20: Warranty
13 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 21: Product Failure
1 4 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 23 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Made in PRC...
