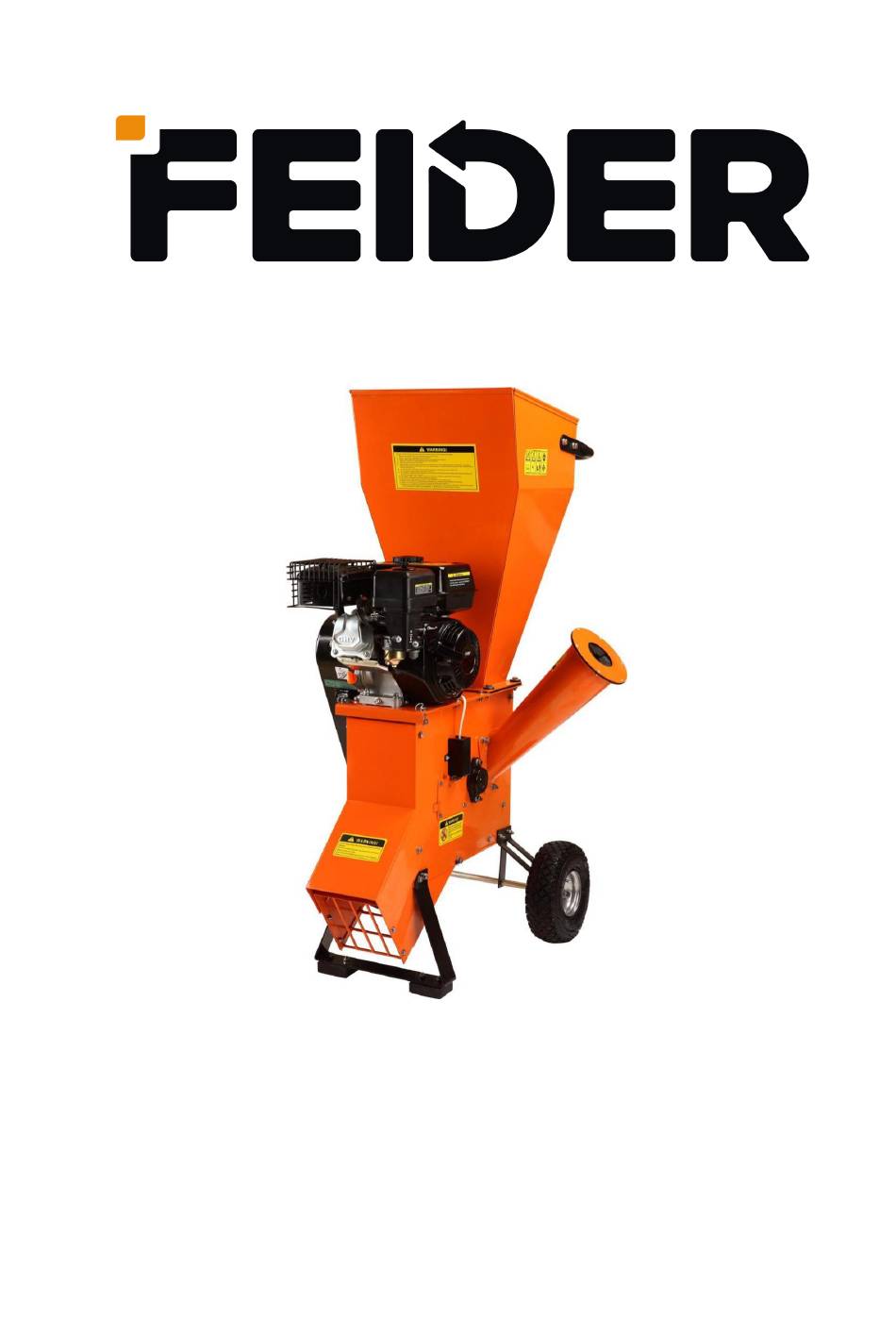

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL PLANT SHREDDER FBT270-1 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. IDENTIFICATION............................3 2. SAFETY INSTRUCTIONS........................4 3. SET UP..............................6 4. OPERATION............................8 5. MAINTENANCE AND STORAGE..................... 11 6. SERVICE..............................14 7. DECLARATION OF CONFORMITY....................16 8. WARRANTY............................17 9. PRODUCT FAILURE........................... 18 10. WARRANTY EXCLUSIONS......................19... -
Page 3: Identification
E. Fuel cock F. ON/OFF switch G. Throttle H. Fuel tank cap I. Air cleaner J. Exhaust K. Pull start handle Pic.1 Technical Parameter Model FBT270-1 Chipping Capacity 89mm Blade Speed 2400/min Engine Type OHV 4-stroke Starting System Recoil Displacement... -
Page 4: Safety Instructions
2. SAFETY INSTRUCTIONS IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Training Become familiar with the owner's manual before attempting to operate this equipment. Preparation 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders; 3) Do not run engine powered machines in an enclosed area since the exhaust from an engine contains carbon monoxide, which is colourless, odourless, and tasteless;... - Page 5 Have any damaged parts replaced or repaired with parts having equivalent specifications. 8) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the feed intake opening; 9) If the machine becomes clogged at the inlet opening or discharge chute shut-off the power source and disconnect the spark plug wire or remove the ignition key before clearing debris in the inlet opening or discharge chute.
-
Page 6: Set Up
3. SET UP Set Up Safety This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine. Site Considerations Location The chipper/shredder must be placed on a firm, flat, grass or dirt surface to prevent the machine from tipping. - Page 7 Pic.3 Installing the handle 4. Place the funnel over the studs in the side of the chipper/shredder and secure it with flat washer(Ø8, 3pcs), spring washer(Ø8, 3pcs) and locknut(M8, 3pcs). (See Pic.4) Pic.4 Funnel installation 5. Fit the fence netting use the 4 screws and 4 nuts. (See Pic.5) Pic.5 Fence netting installation 6.
-
Page 8: Operation
Filling the engine oil Place the machine on a level surface and remove the oil filler cap (Pic.5)(5.1). Add engine oil up to the upper level of the dipstick (Pic.6)(6.1). Filling the fuel tank The chipper/shredder is powered by a four-stroke engine, which uses unleaded gasoline fuel. Use a suitable funnel to transfer the fuel to the engines fuel tank, taking care not to spill any fuel or over fill the fuel tank. - Page 9 operation. This chipper/shredder is intended for mulching garden and pruning waste such as green branches, twigs, brush, vines, and long grasses. DO NOT use this chipper/shredder for chipping construction debris, plastic, paper products, rope or twine, or any material that may contain metal. Note: Remove any nails, rope, twine, or rocks that may be imbedded in roots, before inserting material into the chipper/shredder.
- Page 10 To stop the chipper/shredder: To stop the engine, turn the engine ON/OFF switch to the OFF position (Pic.14)(14.1). When the engine has stopped and before storage, turn the fuel lever to the OFF position as shown in Pic.15 (15.1). To shred twigs, leaves, and brush: 1.
-
Page 11: Maintenance And Storage
feeding too fast. Roots and dirty material will dull or damage the blades. Remove the chips often. Allowing the chips to pile up to the outlet will cause the outlet to clog. Avoid shredding wet leaves or brush to reduce clogging. If you must shred wet material, ... - Page 12 Cleaning Clean the machine after each use. Allow the motor to cool and remove the spark plug wire. Brush off or vacuum wood chips and wipe off the remaining dust from the exterior of the machine with a dry cloth. DO NOT rinse off the chipper/ shredder with water. Remove any chips or debris from the hopper and the discharge chute.
- Page 13 Replacing Blades Sharpen or replace the blades as soon as the chipping performance begins to deteriorate, or if you notice dings, chips, or cracks. To perform this procedure: 1. TURN OFF THE MACHINE, ALLOW ALL MOVING PARTS TO COME TO A COMPLETE STOP, AND DISCONNECT THE SPARK PLUG WIRE! 2.
-
Page 14: Service
3. Roll the belt off of the pulleys and install the new belt. 4. Replace the V-belt cover and re-attach the spark plug wire. Storage Follow these guidelines when storing your chipper/shredder. Remove the spark plug wire to prevent unauthorized starting. ... - Page 15 Troubleshooting Symptom Possible Cause Possible Solution Control levers are not in correct 1. Make sure the ON/OFF switch is ON, the positions for starting. fuel shut-off valve is open, and the choke and throttle controls are in the start Spark plug wire is not position.
-
Page 16: Declaration Of Conformity
Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declares that the machinery designated below: PETROL PLANT SHREDDER FBT270-1 S/N: 20240309365-202403094 14 Is in conformity with the requirements of the Directive Machine 2006/42/EC and to the followings Europeans Directives: EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &... -
Page 17: Warranty
8. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 19: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
