Summary of Contents for Feider FBT270

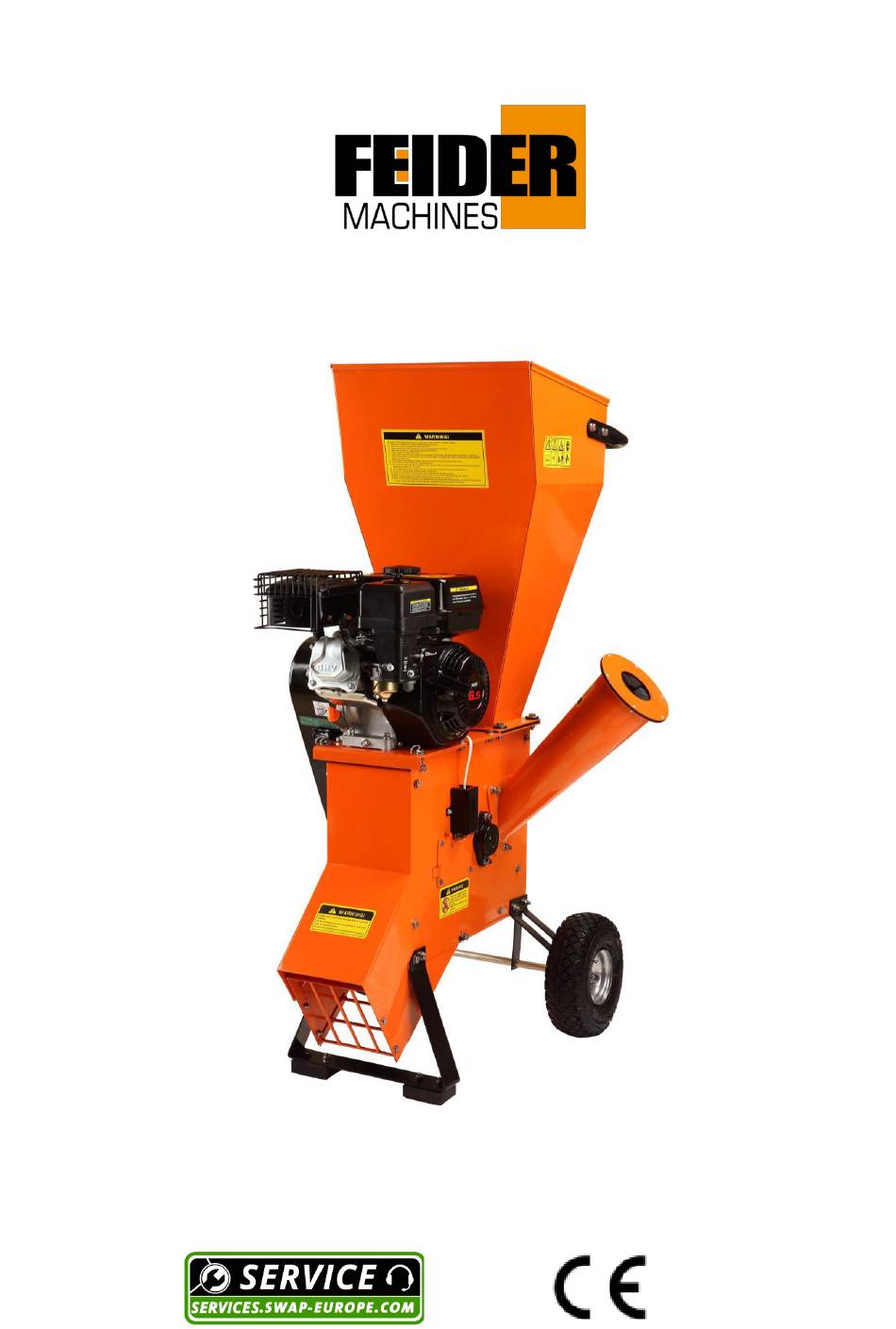

- Page 1 INSTRUCTIONS ORIGINALES PETROL SHREDDER FBT270 Avertissement : Veuillez lire attentivement ce manuel avant d'utiliser l'équipement ! FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Fabriqué en RPC 2019...
-
Page 2: Technical Parameter
F. Fuel Cock G. ON/OFF Switch H. Throttle Fuel Tank Cap J. Air Cleaner K. Exhaust L. Pull Start Handle Pic.1 Chipper/Shredder Identification Technical Parameter Model FBT270 Chipping Capacity 83mm Engine Type OHV 4-stroke Starting System Recoil Displacement 270cm Engine Power... -
Page 3: Section 1: Safety
SECTION 1: SAFETY IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices Training Become familiar with the owner's manual before attempting to operate this equipment. Preparation 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders; 3) Do not run engine powered machines in an enclosed area since the exhaust from an engine contains carbon monoxide, which is colourless, odourless, and tasteless;... - Page 4 source and disconnect the spark plug wire or remove the ignition key before clearing debris in the inlet opening or discharge chute. Keep the power source clear of debris and other accumulations to prevent damage to the power source or possible fire. Remember that operating the starting mechanism on engine powered machines will still cause the cutting means to move;...
-
Page 5: Section 2: Set Up
Do not use as a step SECTION 2: SET UP Set Up Safety This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine! Site Considerations Location The chipper/shredder must be placed on a firm, flat, grass or dirt surface to prevent the machine from tipping. - Page 6 Assembly The major components of this chipper/shredder have been assembled at the factory. Some minor assembly is required. The assembly process will use all the parts and hardware listed in the inventory. DO NOT attempt to start this machine until all assembly has been completed. Serious personal injury and damage to the machine could occur.
- Page 7 Pic.4 Funnel installation Before operating, fill the motor with oil and gas according to the instructions. This chipper/shredder does not have oil in the motor when shipped. Add oil before operating the chipper/shredder, or the motor will seize. Filling the engine oil Place the machine on a level surface and remove the oil filler cap (Pic.5)(5.1).
-
Page 8: Section 3: Operations
SECTION 3: OPERATIONS Operation Safety Damage to your eyes, hands, and ears could result from using this machine without proper protective gear. Always wear safety glasses, hearing protection, and leather gloves when operating this machine. Loose hair and clothing could get caught in machinery and cause serious personal injury. - Page 9 Stand to the side of the hopper and make sure you have a stable stance and firm footing. To start the chipper/shredder: Turn the fuel lever to the ON position (Pic.8)(8.1). Set the choke lever to the ON position (Pic.9)(9.1). Turn the engine ON/OFF switch to the ON position (Pic.10)(10.1).
- Page 10 When the engine is running, the speed can be adjusted by moving the throttle control lever (Pic.13)(13.1) to the high (indicated by a hare), medium or low position (indicated by a tortoise). To stop the chipper/shredder: To stop the engine, turn the engine ON/OFF switch to the OFF position (Pic.14)(14.1). When the engine has stopped and before storage, turn the fuel lever to the OFF position as shown in Pic.15 (15.1).
- Page 11 Remove the chips often. Allowing the chips to pile up to the outlet will cause the outlet to clog. Avoid shredding wet leaves or brush to reduce clogging. If you must shred wet material, alternate wet and dry material. To chip branches: Stand to the side of the hopper and make sure you have a stable stance and firm footing.
-
Page 12: Section 4: Maintenance
SECTION 4: MAINTENANCE Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs. -
Page 13: Replacing Blades
Engine oil replacement Place the machine on a level surface and warm up the engine for several minutes. Then stop the engine. Remove the oil filler cap (Pic.5)(5.1). Place an oil pan under the engine. Remove the oil drain plug (Pic.5)(5.2) so that the oil can be completely drained. -
Page 14: Replacing V-Belt
Pic.21 Chipper blade Replacing V-Belt Replace or tighten the V-belt if you notice the motor running and the chipper blades are not spinning. To perform this procedure: TURN OFF THE MACHINE, ALLOW ALL MOVING PARTS TO COME TO A COMPLETE STOP, AND DISCONNECT THE SPARK PLUG WIRE! Remove the V-belt cover as shown in Pic.22. - Page 15 Close the discharge chute deflector and place the covers over the hopper and the funnel to prevent objects or critters from getting into the machine. If the engine is not to be used or is to be stored for more than one month the following ...
-
Page 16: Section 5: Service
SECTION 5: SERVICE Review the troubleshooting and procedures in this section to fix your machine if a problem develops. Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs. - Page 17 32 rue Aristide Berges -Z1 31270 Cugnaux - France Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Déclare que la machine désignée ci-dessous PETROL SHREDDER FBT270 S/N: 20190714110-20190714124 Est conforme aux dispositions de la directive « machine » 2006/42/CE et aux réglementations nationales la transposant ;...
