Hauff-Technik ULF300 Installation Instructions Manual

Universal charging station foundation
Hide thumbs Also See for ULF300:

Advertisement

Available languages

Available languages

Quick Links

Montageanleitung - ULF Universelles Ladesäulen Fundament
Installation instructions - ULF Universal charging station
Foundation
Vor Beginn der Montage Anleitung lesen und gut aufbewahren!
Read the instructions prior to installation and keep them in a safe place!
www.hauff-technik.de
DE
EN
  

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULF300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hauff-Technik ULF300

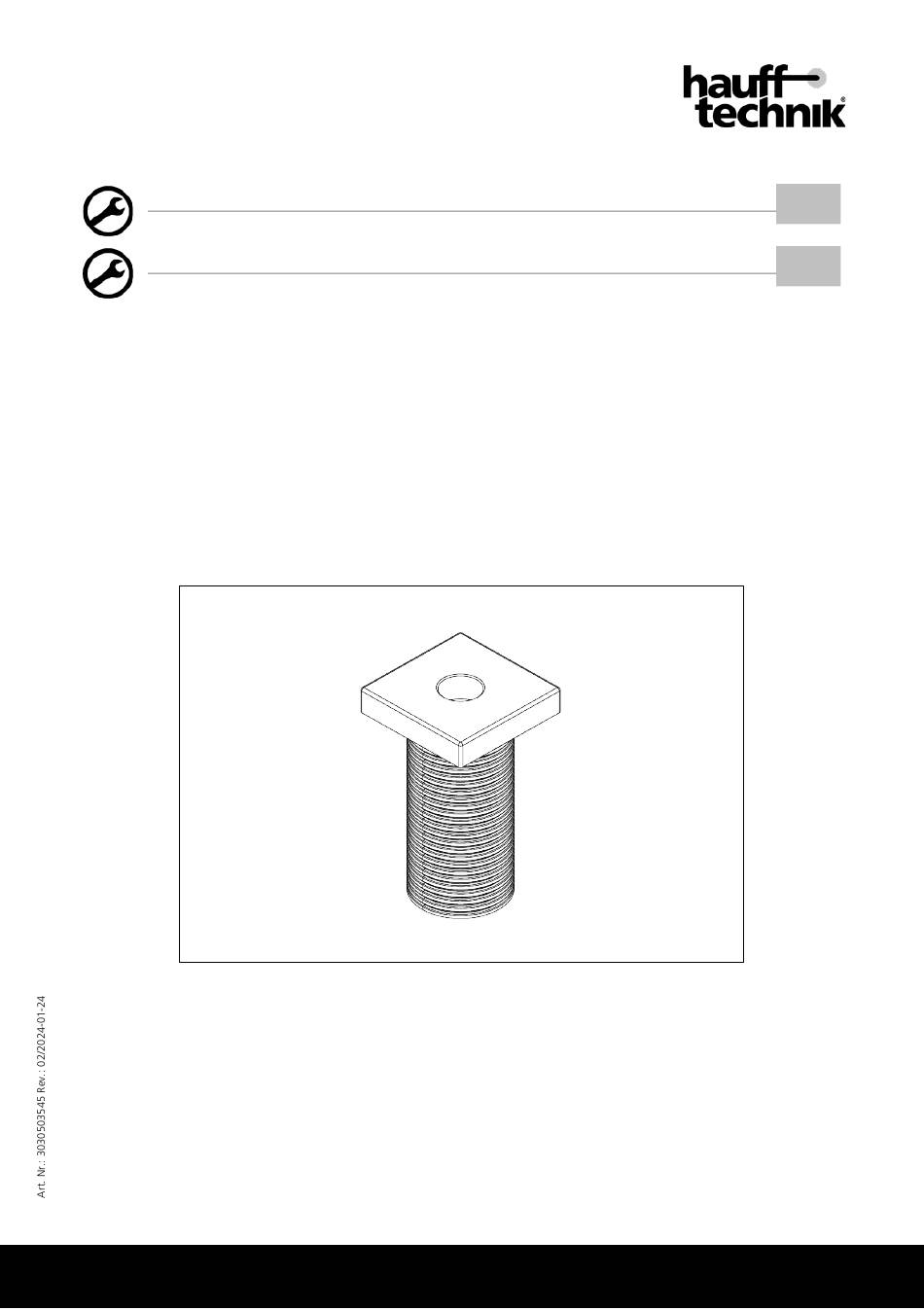

  • Page 1 Montageanleitung - ULF Universelles Ladesäulen Fundament Installation instructions - ULF Universal charging station Foundation Vor Beginn der Montage Anleitung lesen und gut aufbewahren! Read the instructions prior to installation and keep them in a safe place!    www.hauff-technik.de...
  • Page 2 Universelles Ladesäulen Fundament 300/380/470 0,6-1 m 0,6-1 m 80 mm (6) 750 mm (5) 670 - 750 mm 670 mm (4) 750 mm 1 2 1 Art. Nr.: 3030503545 Rev.: 02/2024-01-24...
  • Page 3 Universelles Ladesäulen Fundament 1 2 1 Art. Nr.: 3030503545 Rev.: 02/2024-01-24...
  • Page 4 Qualified and trained individuals carrying out installation must have KRMTX. • knowledge of general safety and accident prevention regulations as amended, • Weiteres Zubehör und Informationen unter www.hauff-technik.de und in den • knowledge of how to use safety equipment, technischen Datenblättern.
  • Page 5 Universelles Ladesäulen Fundament General information and intended use • Do not accept the delivery or only do so subject to reservations. • Make a note of the extent of damage in the transport documentation or In line with their intended use, our products have been developed solely for delivery note provided by the transporter.
  • Page 6: Table Of Contents

    Legende zu Abb.: 1 Fundamentplatte 1 Impressum Öffnung für Kabel Copyright © 2024 by Fundamentrohr Höhe Fundamentrohr (670 mm) Hauff-Technik GmbH & Co. KG Gesamthöhe (750 mm) Abteilung: Technische Redaktion Höhe Polymerbetonplatte (80 mm) Robert-Bosch-Straße 9 89568 Hermaringen, GERMANY Variante...
  • Page 7: Ulf Montieren

    Universelles Ladesäulen Fundament weiteren Universellen Ladesäulen Fundamenten Zur exakten Positionierung des Universellen verbinden (siehe Abb.: 7). Ladesäulen Fundaments ULF empfehlen wir bauseits ein Schnurgerüst vorzubereiten. Die ► Je nach Schutzrohrlänge eine Einziehhilfe Schnur bestimmt die Ausrichtung bei mehreren mitverlegen. Universellen Ladesäulen Fundamenten (siehe ►...
  • Page 8: Installationsbeispiel

    Universelles Ladesäulen Fundament Bei den Bohrungen müssen immer mindestens Artikel Artikelnummer Abstand zum Rand und zur Öffnung für HAB ETGAR BHP Hausausführung 3030404422 Kabel eingehalten werden. ETGAR Bauherrenpaket für Gebäude ohne Keller Bohrlöcher der zu montierenden Ladesäule/Stele HAW-M ETGAR BHP Mehrfach- 3030458211 anzeichnen (siehe Abb.: 11 (mit Schablone)).
  • Page 9: Publishing Notes

    1 Publishing Notes Opening for cables Copyright © 2024 by Foundation pipe Height of foundation pipe (670 mm) Hauff-Technik GmbH & Co. KG Overall height (750 mm) Department: Technical Editing Height of polymer concrete slab Robert-Bosch-Straße 9 89568 Hermaringen, GERMANY...
  • Page 10: Installing The Ulf

    Universal charging station foundation Completely fill the universal charging station Key to Fig.: 4 foundation (if necessary, wait until the concrete has Batter board set according to the manufacturer's instructions). Protruding installation (observe installation ► Carefully compact in several layers up to the lower informations) edge of the polymer concrete slab.
  • Page 11: Installation Example

    Universal charging station foundation Insert the closing cover flush into the opening (see Screw Drilling diameter Tightening Fig.: 15). (mm) torque (Nm) tangential impact Insert the retaining screw flush. wrench The closing cover can be pulled out again later  Concrete screw using the retaining screw.
  • Page 12 Hauff-Technik GmbH & Co. KG Robert-Bosch-Straße 9 89568 Hermaringen, GERMANY Tel. +49 7322 1333-0 Fax + 49 7322 1333-999 office@hauff-technik.de    www.hauff-technik.de...
