HyVibe H1 - H2

Upgrade

Installation

Guide

Need help?

Do you have a question about the H1 and is the answer not in the manual?

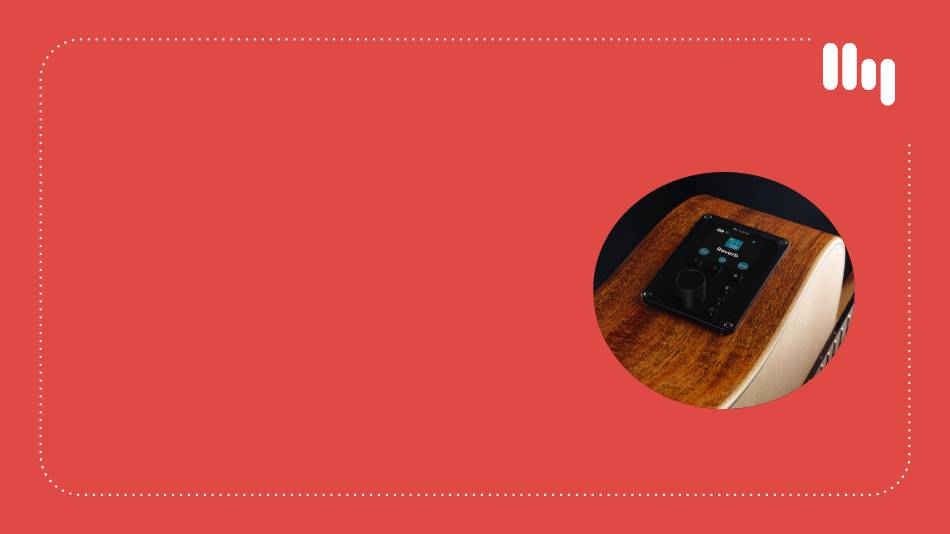

Page 1 HyVibe H1 - H2 Upgrade Installation Guide...
Page 2 Loosen or remove the strings of the guitar so you are able to ﬁt your hand inside the guitar. Then with your hand inside the soundhole, unplug all of the cables from the H1. The inside of the guitar looks like this:...
Page 3 Connect & Attach HyVibe Link to the H2 HyVibe Link into the H2, remove the adhesive from the Link and press the Link ﬁrmly against the H2.
Page 4 Prepare cables Gently pull the cables from the guitar through the hole on the side, enough so they can be plugged into the Link and H2. If the cables do not reach outside the hole after a gently pulling them, you can bend open the metal clips that hold the cables on the side of the guitar.
Page 5 Plug cables into Link and H2 Plug the following into the Link: ● USB-C ● Input jack (black sheathed cable) Output jack (white sheathed cable) ● Plug the following into the H2 Actuators (braided gray and black cable) ● Piezo sensor (round metal tip) ●...
Page 6 Turn on the H2 and test that the effects are working. If so, tighten the 4 screws, and start vibing! If not, remove the H2 and verify that all the cables are properly installed. If you have questions please contact us at: contact@hyvibe.audio...
