Summary of Contents for HyVibe H2

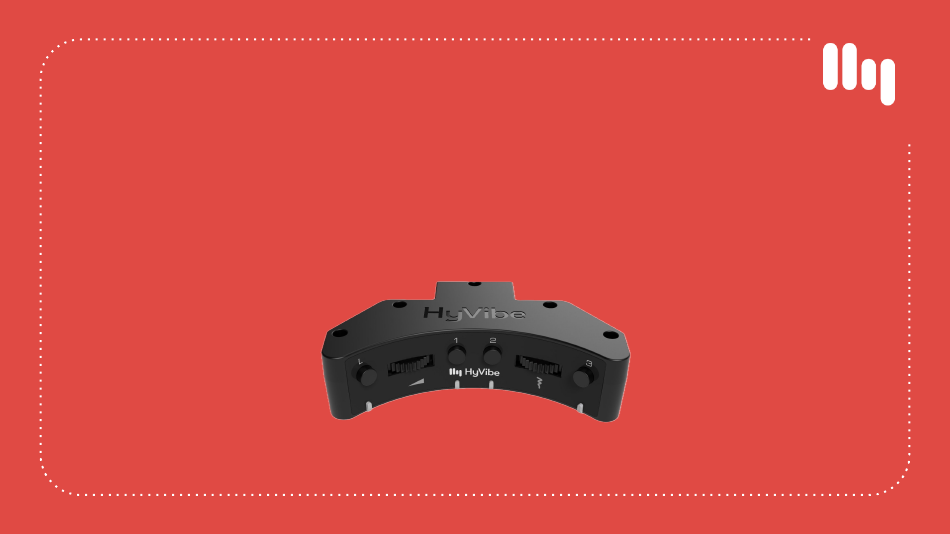

- Page 1 HyVibe H2 Installation Guide...
- Page 2 1. Materials Piezo Velcro Actuator tape HyVibe Brain Actuators Remote connector USB/Audio cable Clips USB charging cable HyVibe Remote Magnet Metal square...
- Page 3 2. Plan component locations The HyVibe Essential can be installed in several locations depending on which guitar you are using, Before beginning the installation, we recommend removing the guitar strings and planning where would like to install these components: Remote (interface inside the soundhole) - able to be installed on the top or bottom of the soundhole.
- Page 4 ~10 seconds to confirm they are attached strongly. Make sure that they are arranged so the connector cable is directed to where the HyVibe Brain will be placed inside the guitar.*...
- Page 5 4. Install piezo sensor If your guitar does not already have an undersaddle piezo sensor, follow these steps: Use a 3 mm drill, make a hole for the piezo sensor. Insert the sensor from inside the guitar and lay flat in the saddle.
- Page 6 5. Plug in & attach Remote, metal strip Plug in the connector cable to the HyVibe Remote before installing it inside the guitar. Remove adhesive covering on the bottom of the Remote and place it inside the soundhole and press firmly for at least 10 sec.
- Page 7 6. Install endpin (optional output) With the HyVibe Essential you have 3 output options: cable through the soundhole, end pin, or jack panel. To install the end pin jack, drill a 11.75mm to 12mm diameter hole on the button center of the guitar.
- Page 8 Tape the stencil/cut outline in this position or use an adhesive label and draw a 18x44mm rectangle. Then, using a 6mm drill, drill the 4 corners. The stencil guide is available here: https://www.hyvibeguitar.com/wp-content/uploa ds/2024/02/H2-Stencil.pdf...
- Page 9 7. Install output jack panel (cont’d) After drilling the 4 holes cut along the outside border. Remove the stencil, connect cables to the jack panel, insert the panel into the guitar, and screw the housing into the guitar using the screws.
- Page 10 ‘soft’ side of the velcro and fasten it inside the guitar. Attached the other velcro sheet to the top of the HyVibe brain, then fasten the brain inside the guitar using the velcro. Plug the following cables into the brain: Piezo ●...
- Page 11 9. Testing Remote - press button 3 to test that the device turns on. Actuators - place actuators on a flat surface, press the L button, and listen for the metronome count in. USB/audio cable - plug a USB C charging cable into the charging port and confirm the unit is charging.
- Page 12 Separate the 3M velcro, remove the adhesive cover of the sheet with the ‘soft’ side of the velcro and fasten it inside the guitar. Attached the other velcro sheet to the top of the HyVibe brain, then fasten the brain inside the guitar using the velcro.
- Page 13 11. Install Clips Remove the tape cover and fasten the cable clips to the inside of the guitar. They will be used to hold the wires in place against the side of the guitar. These photos illustrate an example of where to fasten the clips to the guitar. We recommend attaching one clip at a time and fastening the cables before attaching the next clip.
