Page 3
PAN-14 Sensor installation guide IC compliance statement This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference that may be received or that may cause undesired operation.
Page 4
PAN-14 Sensor installation guide Safety Precautions – Panoramic Power Sensor Installation The installation of this product (the ‘sensor’) must be undertaken by an electrically qualified and competent person to prevent danger, injuries or a fatality due to the significant risks associated with work on or near live electrical conductors.
PAN-14 Sensor installation guide Contents Overview Workflow Safety precautions Mapping the site Installing the sensor Registering the installed sensor Monitoring sensor activity Uninstalling a sensor Sensor specifications Range of rated environmental conditions Certified CTs Troubleshooting Support www.centricabusinesssolutions.com/panoramicpower...

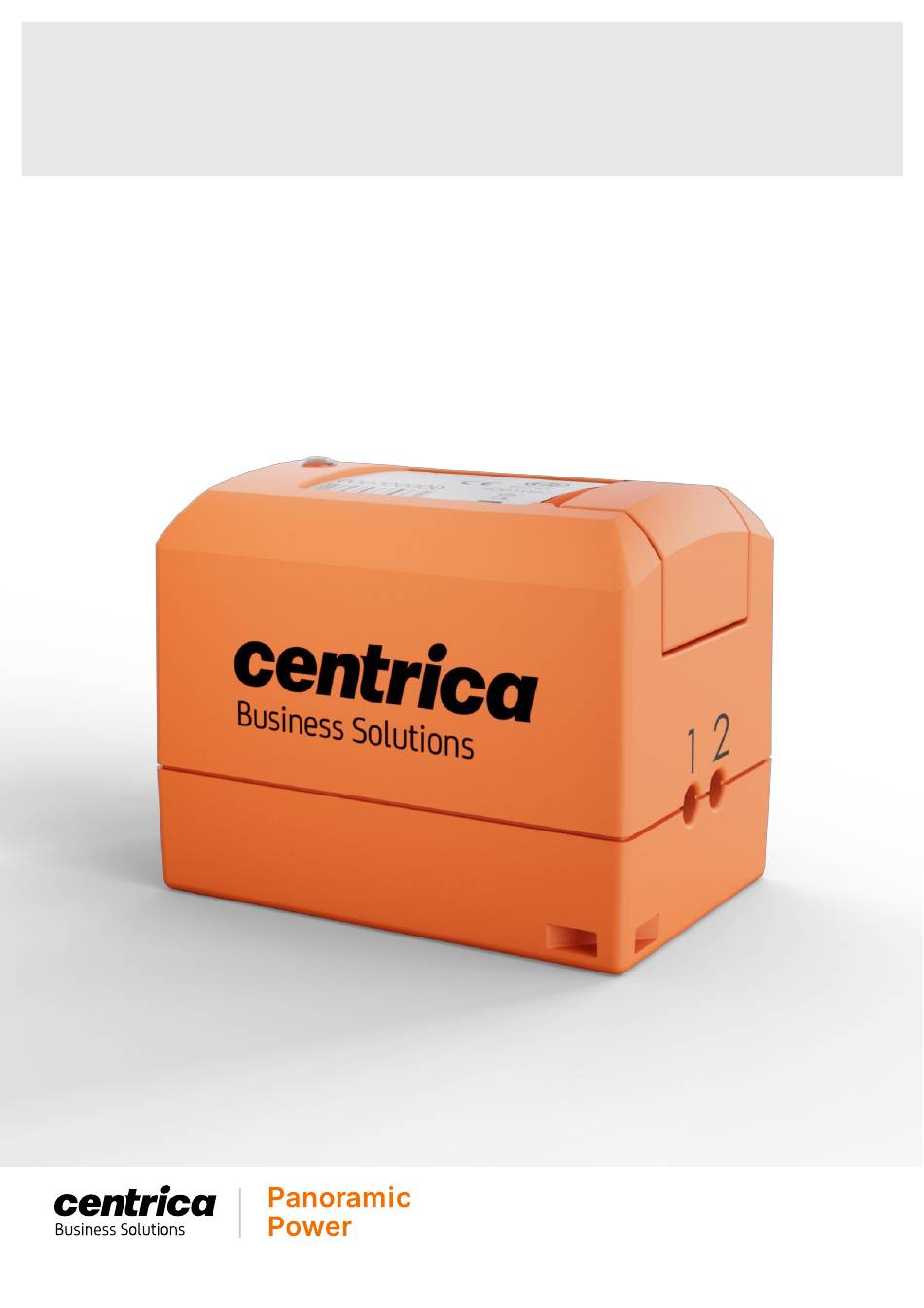

PAN-14 Sensor installation guide Overview This user guide explains how to install the PAN-14 sensors. PAN-14 Current sensor Current Transformer (CT) Workflow Sensor installation consists of the following steps: 1. Map the circuits. 2. Physically attach the sensors and the CTs to the wires. 3.
PAN-14 Sensor installation guide Safety precautions The sensor must be installed only on an insulated conductor. CTs output/secondary current must not exceed 5A. The sensor and CT should be installed and removed only by a qualified electrician. Installation must not be performed on a live wire for reasons of safety and random shock hazard.
Page 8
PAN-14 Sensor installation guide Caution: A loose CT connection can become a fire hazard. When connecting the unit to the CT make sure that both CT wires are properly inserted and that the screws are well tightened. 2. Mount the CT on the hot wire: a.
PAN-14 Sensor installation guide Caution: Do not hang the PAN-14 sensor from the CT, as the connection cannot withstand the sensor weight and can become a fire hazard. Make sure that the sensor is properly mounted, for example using plastic ties. Important notes •...
PAN-14 Sensor installation guide Sensor specifications Physical dimensions 33.8 × 29 × 42.5 mm 1.33 × 1.14 × 1.67 inch Current input range 0-5 A (up to 10 A peak) (from external current transformer) Current measurement range Any applicable range based on CT ratio Current measurement accuracy <2% at I >...
PAN-14 Sensor installation guide Altitude up to 2000m CAT III Pollution Degree 2 Certified CTs General notes Solid-core or split-core CTs can be used. • CT’s accuracy class should be 0.5% or better. • Relay CTs, Rogowski coils, or CTs with included burden resistors •...
PAN-14 Sensor installation guide Troubleshooting If you encounter a problem, first try the following solutions: Problem Solution The sensor is not sending Make sure the circuit has current. measurements Make sure that the sensor arrow points in the direction of the load. Make sure that the sensor LED is blinking.
