MASTER CLEAR SYSTEM CONTROLS CONT.
4.
"Cycle Now"/"Cancel Cycle" button – Press this button to manually
start or stop a generation cycle�
SETTINGS
The app allows you to change some of the basic settings for the Master
Clear Salt System and the App�
Master Clear Salt System Settings
•
Device Lights – Enable or disable the indicator lights on the
controller behind the skirting�
•
Nickname – Name your Salt System
•
Bluetooth Password – Add, change or adjust your Bluetooth
password
•
Spa Size – Model/Gallons
•
Reset Smart Cell Life – Used when a new Smart Cell is added
•
Internet Settings – Add, change or update your Internet connection
settings
•
Sync Account – Add, change or update your user account
•
Updates – Displays any firmware updates available for the Master
Clear Salt System
•
Support Data – Used for troubleshooting
•
Reboot Device – Typically used to reset settings
•
Factory Reset – Used for troubleshooting or connecting to a new
system�
Master Clear Salt System App Settings
•
Sounds – Toggle app sounds on or off�
•
Animations – Toggle app animations on or off�
•
Analytics – This anonymously tracks the app functions and sends
crash reports for app improvement� Toggle on or off�
•
Units – Toggle between Imperial and Metric
•
Reset Walkthrough – If you would like to change some of the initial
settings, you can reset the walkthrough from when first setting up
the app�
•
Name – You can change your app account details
•
Bluetooth – Takes you directly to your device's
Bluetooth settings
•
Notifications – Takes you directly to your device's
notification settings�
MASTER CLEAR SALT
SYSTEM CONTROLLER
NOTE: This section is only applicable if the Master Clear Salt System app is
not utilized to control and monitor the Master Clear Salt System after the
initial startup�
OPERATION
Use of the Master
Clear Salt System
app through
Bluetooth or Wi-Fi
connection is highly
recommended
for the easiest
user experience�
However, the
system may also
be monitored and
adjusted through
the buttons and LEDs on the Controller� The information below only
pertains to system operation using the Controller buttons and LEDs�

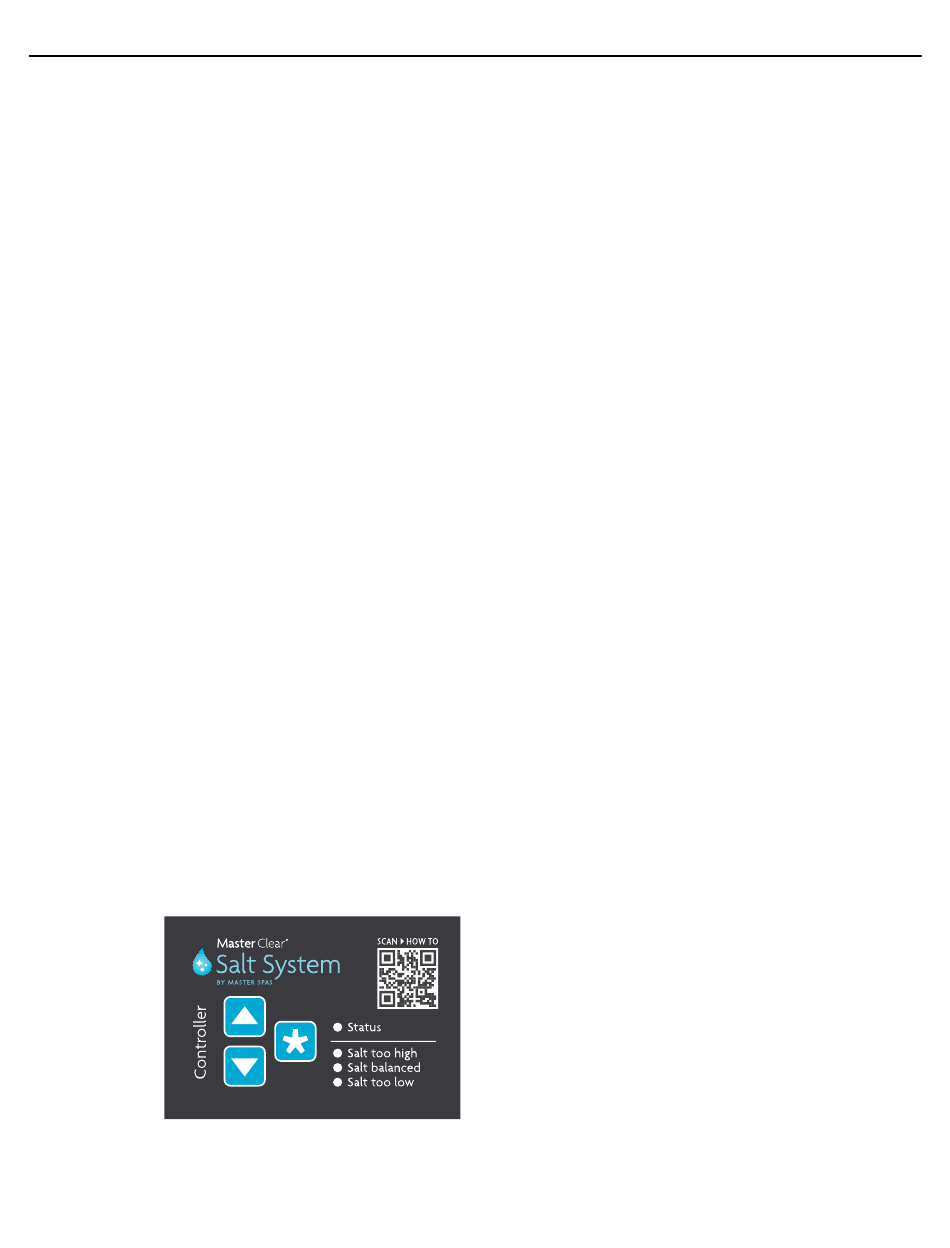

The Master Clear Salt System utilizes 3 buttons and 4 lights on the
control unit to operate the Smart Cell without using the App�
LED LIGHTS
•
Solid Red Red – Salt level high when running a cycle
•
Solid Green Green – Salt level balanced when running a cycle
•
Solid Yellow Yellow – Salt level low when running a cycle
•
Solid Yellow Yellow & Red Red – Excessive salt levels and the Master Clear Salt
System has shut down to protect the power supply and the Smart
Cell�
•
Drain some water and refill with fresh water to dilute the salt
level�
•
Cycle the power to press the * button to have it check again
• Solid Blue Blue – Editing mode is activated�
• Flashing Blue Blue (once every ten seconds) – System is in standby mode�
• Flashing Blue Blue (twice every ten seconds) – Smart Cell is nearing the
end of its service life and is within one month or less of needing
replacement�
NOTE:
The indicator lights can be disabled from the app� If this option
has been disabled, reboot the controller to re-enable the lights�
How to Read the LED Lights Representing Numbers:
There are a couple of troubleshooting features that will flash different
colored lights to represent numbers� The LED lights will flash repeatedly
to represent the 1s, 10s, and 100s places� Each flash will indicate 1 of its
respective number category�
Red Red = 100
Green Green = 10
Yellow Yellow = 1
Examples:
Red Red flashes once� The system is indicating the value of 100�
Green Green flashes 7 times and Yellow
controller is saying the value is 10+10+10+10+10+10+10+1+1+1 or 70+3 = 73�
BUTTONS
*
• Press "*" to manually start/stop the generation cycles�
• Press and hold "*" during startup to reset the Bluetooth password�
• When resetting the Bluetooth password, all lights will light up
and remain solid�
Up
• Press Up to show the current output level�
• The lights flash the value on a scale of 1-10� To indicate this
the Red Red light will flash between 1 and 9 times to indicate
levels 1-9� The light will flash Green
• This provides the same function as pressing Up + Down if the
button is held throughout the level readout indication�
Down
• Press Down to display the Smart Cell value� This is used for
troubleshooting purposes and is not needed for average use�
• When the Smart Cell is actively in a cycle/producing
chlorine, the LED indicators will flash to show the current
amperage value�
• When the Smart Cell is between cycles/standby, the LED
indicators will flash to show the sensor millivolt value�
Up + Down
• Press Up + Down to enter the level editing mode�
• The Blue Blue light becomes solid, indicating the editing mode is
active�
• While in the level editing mode, press Up or Down to adjust
the output level� Each time Up or Down is pressed, the
Yellow Yellow or Red Red light will flash: Yellow
Down�
• At Level 1, the Red
end of the scale�
9
Yellow flashes 3 times� The system
Green once for level 10�
Yellow for Up and Red
Red light stays solid, indicating the low
Red for
