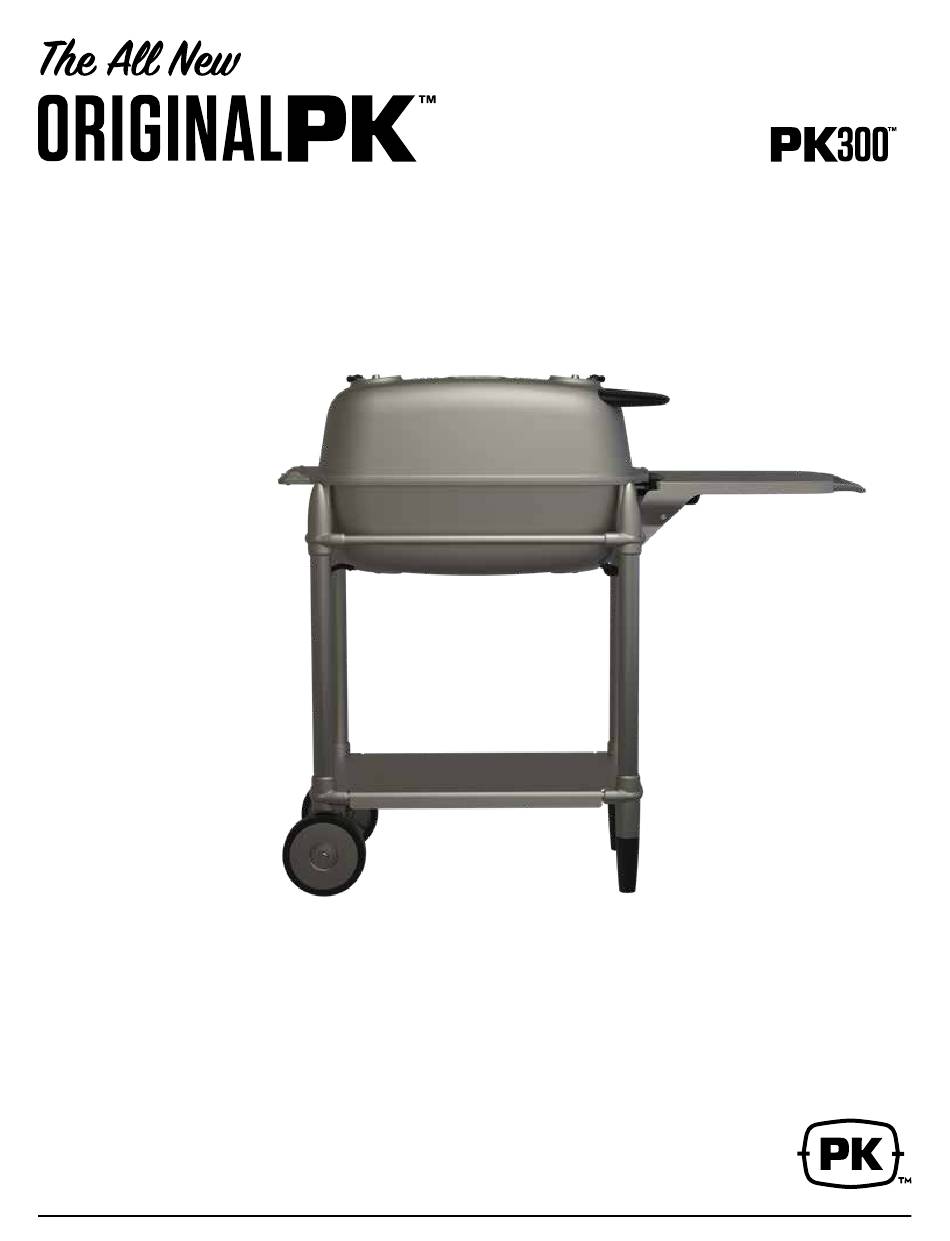

  • Page 1 A SSEMBLY INS T RUCT IO N S SE E VID E O AT WW W.P KG RI L L S. C OM /A S S E M B LY VI D EO S PK30 0 A SSEMBLY INS TRU CTIONS (www. pkg r i l ls. co m/a ssembl y vi d eos )

  • Page 2: Getting Ready

    GET T IN G R E A DY Carefully unpack all components. Tools needed: phillips #3 screwdriver, 4 mm hex wrench, 5 mm hex wrench www.pkgrills.com/assemblyvideos 4mm Hex Wrench 5mm Hex Wrench Philips Screwdriver ASS E MB L E C A R T STEP 1.
  • Page 3 (A) Top Notches Birds eye view of tubes. FIG 1 IMPORTANT: CHECK TUBE ORIENTATION - The notches (A) on the top of the tube must all face inward - in the direction of the long side of the cart. See FIG. 1 for correct orientation.
  • Page 4 Screws STEP 5. Place UPPER CART TUBE ASSEMBLY on top of the STEP 6. Affix VERTICAL TUBES to UPPER CART TUBE four VERTICAL TUBES as shown. The SHELF should be ASSEMBLY using provided hex screws and 4mm hex Do not fully tighten hex screws at this oriented on the side opposite the wheels.
  • Page 5 ASS E MB L E LOWE R C A P SULE M6 Screw STEP 1a. Attach SHELF LOCKS to LOWER CAPSULE STEP 1b. Attach VENT HANDLES to LOWER RADIAL oriented as shown using provided M6 screws and lock VENTS using provided M6 screws. Handles are identical, washers.
  • Page 6 STEP 4. Put the two VENT COVERS in place inside the STEP 5. Install the CHARCOAL GRATE and upper COOKING LOWER CAPSULE as shown. SURFACE as shown. STEP 6. Place REMOVABLE COOKING SURFACE DOOR on right side. Note that the REMOVABLE COOKING SURFACE DOOR is designed to easily hinge upon and closed or to be completely removed for easy access to coals in indirect cooking scenarios.
  • Page 7 ASS E MB L E U P P E R C A P SULE STEP 1. Place the UPPER CAPSULE on the LOWER CAPSULE with hinge oriented as shown. STEP 2. Open the UPPER CAPSULE into the open position and affix the handle using a no.
  • Page 8 www.pkgrills.com/assemblyvideos STEP 3. Take a picture. (It will never be this pretty again.) Fire it up. ( www.pkg r ills.c om /a ssem b l y v id eos ) P K 3 00 A SSE M BLY I NS TRUC TI ONS...
