MSI Trident Series, Trident B932 Manual
![]()
Acquisition of Replaceable Parts
Please be noticed that the acquisition of replaceable parts (or compatible ones) of the computer users purchased in certain countries or territories may be fulfilled by the manufacturer within 5 years at most since the computer has been discontinued, depending on the official regulations declared at the time. Please contact the manufacturer via https://www.msi.com/support/ for the detailed information about the acquisition of spare parts.
Overview
Packing Contents
![]()
* Please contact us immediately if any of the items is damaged or missing.
* The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased.
System Overview

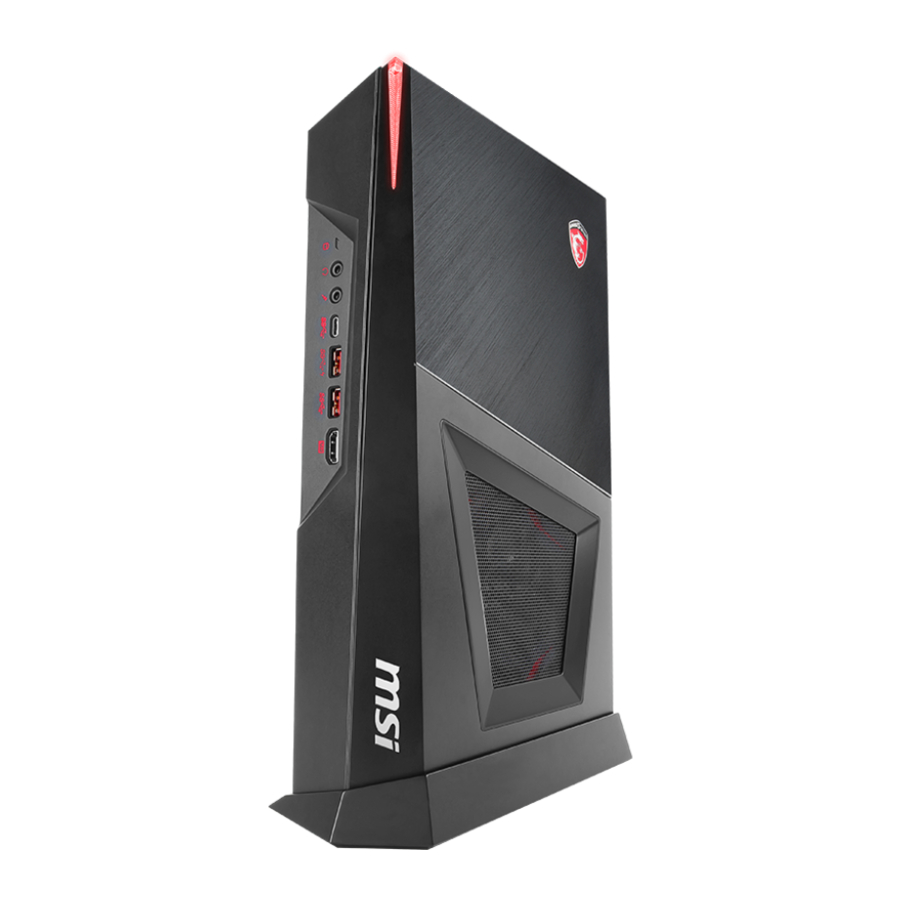

Front View
![MSI - Trident Series - System Overview - Front View System Overview - Front View]()
![]() | Drive Activity Indicator LED blinks when the system is accessing the internal storage drives. |
![]() | Headphone Jack This connector is provided for headphones or speakers. |
![]() | Microphone Jack This connector is provided for microphones. |
![]() | USB 3.2 Gen 1 Port (Type-C) USB 3.2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed data transfer for various devices, such as storage devices, hard drives, video cameras, etc. The slim and sleek USB Type-C connector features reversible plug orientation. |
![]() | USB 3.2 Gen 1 Port USB 3.2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed data transfer for various devices, such as storage devices, hard drives, video cameras, etc. |
Rear View
![MSI - Trident Series - System Overview - Rear View System Overview - Rear View]()
![]() | Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. |
![]() | Kensington Lock Port This PC provides a Kensington lock port, which allows users to secure the PC in place with a key or some mechanical PIN device and attached through a rubberised metal cable. The end of the cable has a small loop which allows the whole cable to be looped around a permanent object, such as a heavy table or other similar equipment, thus securing the PC in place. |
![]() | Audio Ports Line in: Used for connecting external audio outputting devices. Line out: Used as a connector for speakers or headphone. Mic: Used as a connector for a microphone. |
![]() | Power Jack The AC/DC adapter converts AC power to DC power for this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. |
![]() | HDMI-Out Port The High-Definition Multimedia Interface (HDMI) is an all-digital audio/ video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. |
![]() | USB 2.0 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate. |
![]() | USB 3.2 Gen 1 Port USB 3.2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed data transfer for various devices, such as storage devices, hard drives, video cameras, etc. |
![]() | ![MSI - Trident Series - LAN Jack LAN Jack]() LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. LED Color | LED State | Condition | Yellow | Off | LAN link is not established. | On (steady state) LAN link is established. | | On (blinking) | The computer is communicating with another computer on the LAN. | Green | Off | 10 Mbit/sec data rate is selected. | On | 100 Mbit/sec data rate is selected. | Orange | On | 1000 Mbit/sec data rate is selected. | |
Notice
High-speed devices are recommended for USB 3.2 ports whereas low-speed devices, such as mouse or keyboard, are suggested to be plugged into the USB 2.0 ports.
Upper Side View
![MSI - Trident Series - System Overview - Upper Side View System Overview - Upper Side View]()
![]() | Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. |
![]() | Power Button Press the power button to turn the system on and off. |
Getting Started
Safety & Comfort Tips
Choosing a good workspace is important if you have to work with your PC for a long period of time.
- Your work area should have enough illumination.
- Choose the proper desk and chair and adjust their height to fit your posture when operating.
- When sitting on the chair, sit straight and keep a good posture. Adjust the chair's back (if available) to support your back comfortably.
- Place you feet flat and naturally on the floor, so that your knees and elbows have the proper position (about 90-degree) when operating.
- Put your hands on the desk naturally to support your wrists.
- Avoid using your PC in a place where discomfort may occur (such as on the bed).
- The Personal Computer System is an electrical device. Please treat it with great care to avoid personal injury.
Hardware Setup
Placing the System
The system can be placed horizontally or vertically to fit your need and environment.
![MSI - Trident Series - Hardware Setup - Placing the System Hardware Setup - Placing the System]()
If you want to place the system vertically, please follow the steps below to install the stand:
- Place the stand on a stable surface, such as a computer desk or a TV cabinet.
- Make certain the system is in power off mode. Ensure correct orientation and install the system to the stand.
- Handle with extra care when relocating the system.
Connecting the AC Power
![MSI - Trident Series - Hardware Setup - Connecting the AC Power Hardware Setup - Connecting the AC Power]()
- Unpack the package to find the AC/DC adapter and AC power cord.
- Connect the adapter and the power cord.
- Connect the Power Jack.
- Plug the power cord to the electrical outlet.
Disconnecting the AC Power
- Unplug the AC power cord from the electrical outlet first.
- Unplug the AC power cord from the Personal Computer System.
![]()
When unplugging the AC power cord, always hold the connector part of the cord. Never pull the cord directly.
Powering on the System
![MSI - Trident Series - Hardware Setup - Powering on the System Hardware Setup - Powering on the System]()
Press the power button to power on the system.
System Operations
Power Management
Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity.
Power Management in Windows 10
- [Power Options] in Windows OS allow you to control the power management features of your display, hard drive, and battery. Right-click [Start]
, select [Control Panel] from the list and then click [System and Security].
Select [Power Options] and choose a power plan that suits your personal needs. You may also fine-tune the settings by clicking [Change plan settings].
![MSI - Trident Series - Accessing the Power Management in Windows 10 Accessing the Power Management in Windows 10]()
- The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down (S5) for rapid and easy management of your system power.
Power Management through ENERGY STAR qualified monitors
The power management feature allows the computer to initiate a low-power or "Sleep" mode after a period of user inactivity. When used with an external ENERGY STAR qualified monitor, this feature also supports similar power management features of the monitor. To take advantage of these potential energy savings, the power management feature has been preset to behave in the following ways when the system is operating on AC power:
- Turn off the display after 10 minutes
- Initiate Sleep after 30 minutes
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a command from any of the following:
- the power button,
- the network (Wake On LAN),
- the mouse,
- the keyboard.
Energy Saving Tips:
- Turn off the monitor by pressing the monitor power button after a period of user inactivity.
- Tune the settings in Power Options under Windows OS to optimize your PC's power management.
- Install power saving software to manage your PC's energy consumption.
- Always disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption.
Network Connection on Windows 10
Wired Network
- Right-click [Start]
and select [Network Connections] from the list. - Select [Ethernet] and then [Network and Sharing Center].
- Select [Set up a new connection or network].
- Choose [Connect to the Internet] and click [Next].
- Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password.
![MSI - Trident Series - Wired Network Connection Setup - Step 3 Wired Network Connection Setup - Step 3]()
- Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection.
Wireless Network
- Go to [Start]
, click [Settings] and select [Network and Internet]. - A list of available WLAN connections pops up. Choose a connection from the list.
- To establish a new connection, select [Network and Sharing Center].
![]()
- Select [Set up a new connection or network].
- Followingly, choose [Manually connect to a wireless network] and click [Next] to continue.
- Enter information for the wireless network you intend to add and click [Next] to proceed.
- A new WLAN connection has been made.
System Recovery on Windows 10
The purposes for using the System Recovery Function may include:
- Restore the system back to the initial status of original manufacturer's default settings.
- When some errors have occurred to the operating system in use.
- When the operating system is affected by virus and is not able to work normally.
- When you want to install the OS with other built-in languages.
Before using the System Recovery Function, please back up the important data saved on your system drive to other storage devices.
If the following solution fails to recover your system, please contact the authorized local distributor or service center for further assistance.
Reset this System
- Go to [Start]
, click [Settings] and select [Update and security]. - Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery.
![MSI - Trident Series - Resetting this System - Step 1 Resetting this System - Step 1]()
- The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything].
Reset this PC | Keep my files |
Remove everything | Only the drive where Windows is installed | Just remove my files |
Remove files and clean the drive |
All drives | Just remove my files |
Remove files and clean the drive |
Keep my files
- Select [Keep my files].
- The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs. Click [Next] to continue
![MSI - Trident Series - Reset with Keep my files option - Step 2 Reset with Keep my files option - Step 2]()
- The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.
Remove everything
- Select [Remove everything]
![MSI - Trident Series - Reset with Remove everything option - Step 1 Reset with Remove everything option - Step 1]()
- If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]
- Then select between [Just remove my files] and [Remove files and clean the drive].
- The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.
F3 Hotkey Recovery
Precautions for Using the System Recovery Function
- If your hard drive and system encountered non-recoverable problems, please use the F3 Hotkey recovery from the Hard Drive first to perform the System Recover Function
- Before using the System Recovery Function, please backup the important data saved on your system drive to other storage devices
Recovering the system with the F3 Hotkey
Follow the instructions below to continue:
- Restart the PC.
- Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display.
- On the "Choose an Option" screen, tap "Troubleshoot".
- On the "Troubleshoot" screen, tap "Restore MSI factory" to reset the system to the default settings.
- On the "RECOVERY SYSTEM" screen, tap "System Partition Recovery".
- Follow the on-screen instructions to continue and complete the Recovery Function.
Safety Instructions
![]()
- Read the safety instructions carefully and thoroughly.
- All cautions and warnings on the computer or user's manual should be noted.
![]()
- Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before connecting the computer to the power outlet.
- If the power cord comes with a 3-pin plug, do not disable the protective earth pin from the plug. The computer must be connected to an earthed mains socket-outlet.
- Always unplug the AC power cord before installing any add-on card or module to the computer.
- Always disconnect the AC power cord or switch the wall socket off if the computer would be left unused for a certain time to achieve zero energy consumption.
- Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
- If this computer comes with an adapter, use only the MSI provided AC adapter approved for use with this computer.
- Power Option 1: 230W
- Input: 100-240V, 50-60Hz
- Output: 19.5V, 11.8A
- Power Option 2: 330W
- Input: 100-240V, 50-60Hz
- Output: 19.5V, 16.9A
![]()
Please take special precautions if this computer comes with a battery.
- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
- Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, which can result in an explosion.
- Avoid leaving a battery in an extremely high temperature or extremely low air pressure environment that can result in an explosion or the leakage of flammable liquid or gas.
![]()
Do not ingest battery. If the coin/button cell battery is swallowed, it can cause severe internal burns and can lead to death. Keep new and used batteries away from children.
![]()
- To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer on a soft, unsteady surface or obstruct the computer air ventilators.
- Use this computer only on a hard, flat and steady surface.
![]()
- Keep this computer away from humidity and high temperature
- Do not leave the computer in an unconditioned environment with a storage temperature above 60°C or below 0°C, which may damage the computer
- The maximum operating temperature is around 35°C
![]()
Never pour any liquid into the opening that could damage or cause electrical shock.
![]()
Always keep the strong magnetic or electrical objects away from the computer.
![]()
If any of the following situations arises, get the computer checked by service personnel:
- The power cord or plug is damaged. Liquid has penetrated into the computer.
- The computer has been exposed to moisture. The computer does not work well or you can not get it work according to user's manual.
- The computer has dropped and damaged.
- The computer has obvious sign of breakage.
Green Product Features
- Reduced energy consumption during use and stand-by
- Limited use of substances harmful to the environment and health
- Easily dismantled and recycled
- Reduced use of natural resources by encouraging recycling
- Extended product lifetime through easy upgrades
- Reduced solid waste production through take-back policy
Technical Support
If a problem arises with your computer and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates and other information via https://www.msi.com/support/
MSI Computer Corp.
901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828
www.msi.com
