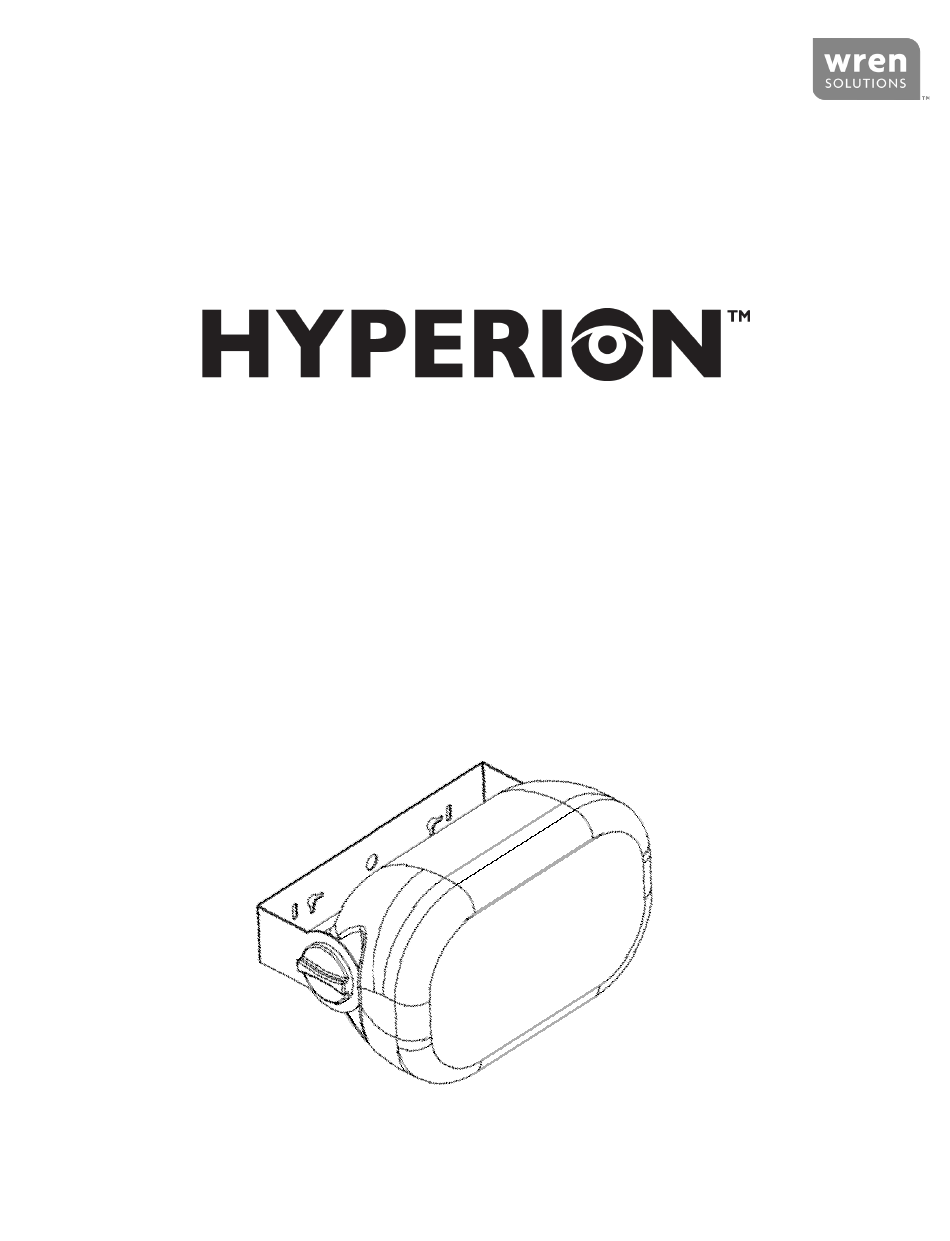

- Page 1 NSTALLATION UIDE YPERION OUNT PEAKER HYP-WMSP20-B HYP-WMSP20-W Hyperion Wall Mount Speaker Installation Guide www.wrensolutions.com 7L619 Rev A 210511...
-
Page 2: Product Support
Wren's Terms and Conditions. NTELLECTUAL ROPERTY IGHTS Wren maintains certain intellectual property rights that may pertain to this product. To see a list of our patents, please refer to the current version of Wren’s Terms, Conditions and Policies. RADEMARK CKNOWLEDGMENTS Wren®. - Page 3 OMPONENT Prior to installation, verify that all hardware is included. If there are missing components, please contact Wren. EQUIRED OOLS AND CCESSORIES Drill Cables (18/2 AWG min.) Wrench #2 Phillips screwdriver NOTE: A DDITIONAL MOUNTING HARDWARE MAY BE REQUIRED E SURE TO USE APROPRIATE FASTENERS AND...
-
Page 4: Mount The Speaker
OUNT THE SPEAKER Attach the mounting bracket at desired location using appropriate hardware. Fasteners and anchors are not provided. NOTE: This speaker can be mounted vertically or horizontally. Vertical Mounting Horizontal Mounting ABLING Run cable from the Hyperion Gateway to the speaker. Cabling Specifications Maximum cabling distance is 300 feet. - Page 5 Terminal ABLE CCESS REPERATION Cover Grommet Install the liquid tight cable gland for outdoor applications or the rubber feed through grommet for indoor applications. Pass the speaker wires through the selected cable gland/ grommet and fasten it to the terminal cover. NOTE: W 18 AWG E RECOMMEND USING...
- Page 6 ATEWAY The gateway supports two, independent audio channels, each with separate connection ports and volume adjustment. Each audio channel can support a maximum of 2 Wren speakers per channel. Attach speaker wires to the Gateway, making sure to note polarity.
