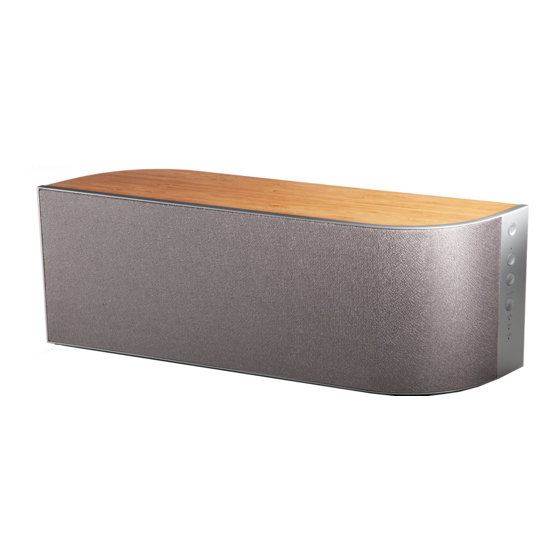

Wren v5ap speaker user manual
Hide thumbs Also See for V5AP:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual
V5AP User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V5AP and is the answer not in the manual?

Questions and answers

Related Manuals for Wren V5AP

Summary of Contents for Wren V5AP

  • Page 1 V5AP User Manual...

  • Page 2: Table Of Contents

    Contact Wren Sound Systems . . . . . . . . . . . . . . . . . .

  • Page 3: Product Registration

    Product Registration Thank you for purchasing a Wren V5AP speaker . Product registration is simple . As a thank you for registering, Wren will extend your warranty by two years, for a total of three years. Additionally, customers who register will receive: •...

  • Page 4: Box Contents

    Box Contents Remote Control (with Battery) USB Dock AC Power Cord Connector Cable Power Supply V5AP Safety Instructions & Warranty V5AP Setup Guide Wren V5AP Speaker V5AP Setup Guide Wren V5AP User Manual...

  • Page 5: Work

    The technology behind AirPlay is complex, but it’s simple to use: Once your Wren V5AP is connected to your network, your screen will display the AirPlay icon whenever you’re listening to an AirPlay compatible music source . Click the icon, select the Wren V5AP and enjoy the sound . Wren V5AP User Manual...

  • Page 6: Compatibility

    For use with Apple AirPlay* * PLEASE NOTE: When using AirPlay, the Wren V5AP must be connected to WiFi with networked access to a Mac or PC running iTunes 10 . 1 or later, or to an iPad, iPhone, or iPod touch running iOS 5 .0 or later .

  • Page 7: Wren V5Ap Controls

    Wren V5AP Controls: Connections Setup Button Used to enter various setup modes 3.5mm Aux Input Connects any audio source to your Wren V5AP via a 3 .5mm audio cable Power Supply Input Connects to the power supply USB/iPod Docking Port Charges iDevices, transfers...

  • Page 8: Speaker Controls

    Wren V5AP Controls: Speaker Controls Power Powers on and off the speaker . White light indicates power is on; amber light indicates volume is muted . Volume Adjustment Indicator Indicates volume is being adjusted . Volume Up Increases the volume .

  • Page 9: Remote

    Wren V5AP Controls: Remote Control Source Selector Power Selects the desired audio Powers the speaker on and off input source Volume Up Play/Pause Increases volume Plays and pauses audio Previous Track Next Track Goes to the previous audio track Goes to the next audio track...

  • Page 10: Before You Begin Setup

    Your iDevice (iPod, iPhone, iPad) is Apple AirPlay compatible . (For a full list of compatible iDevices, visit wrensound.com/support/compatibility) • Your iDevice has received the latest software updates . • Your Wren V5AP speaker is located in an area with ample WiFi signal strength . Wren V5AP User Manual...

  • Page 11: Powering On Your Wren V5

    Powering on Your Wren V5AP Connect AC power cord to Connect power supply to power input power supply. on rear of speaker. The power indicator in the center of the power button will flash white for about 10 seconds, then turn off .
  • Page 12 Connect your iDevice to the Wren V5AP using the included USB dock connector cable. When connection is complete, the WiFi indicator on your Wren V5AP will change to solid white indicating AirPlay is connected to your network and ready to use.

  • Page 13: Computer

    If you do not have an iDevice but you want to use AirPlay with iTunes on a Mac or PC, you will need to use the Web Server method to set up a network connection for your Wren V5AP. Make sure you have saved open work on your computer and have closed all programs first.
  • Page 14 You can enter a name for your speaker in When connection is complete, the the AirPlay Device Name space and click WiFi indicator on your Wren V5AP “Apply.” The default will be “Wren_V5” will change to solid white indicating followed by a unique identifying number.

  • Page 15: Using Airplay

    Using AirPlay on Your iDevice (iPhone, iPad, iPod) Once you have successfully set up your Wren speaker, you are ready to enjoy your music wirelessly. Locate and press the AirPlay icon on your music app to begin playing music. Note that the location of the AirPlay icon will differ depending on the music player you are using.

  • Page 16: Using Your Wren V5

    Using Your Wren V5AP: Power Modes The Wren V5AP has four power modes. Power On A steady white indicator on the power button indicates the unit is powered on and ready to play . Power On – Sound Muted Briefly pressing the power button on the speaker OR the mute button on the remote control will mute the system .

  • Page 17: Input Source

    Using Your Wren V5AP: Input Source Pressing the Source button will toggle between WiFi (AirPlay), AUX IN, and USB inputs . iDevice When AirPlay input is selected: • WiFi indicator will be white indicating that AirPlay is connected and working properly .

  • Page 18: Volume

    Please Note: When in AirPlay mode, the volume control on the AirPlay source device (iPhone, iPad, iPod Touch, or iTunes running on a PC or MAC) will override the volume control on the Wren V5AP and the remote control . Wren V5AP User Manual...

  • Page 19: Troubleshooting Tips

    1 . Verify that your WiFi network is functioning . to connect the 2 . The WiFi signal may be weak or the Wren V5AP may be out of range Wren V5AP to of your WiFi network . Move the Wren V5AP closer to your network my network .

  • Page 20: Firmware Upgrades

    Ensure “wren_v5.fw” is the only file on the USB drive, and that it is located in the drive’s root directory (not in any folder) . 3 . With the power disconnected from the Wren V5AP, insert the USB drive into USB port located on the rear panel of the Wren V5AP .

  • Page 21: Reset To Factory Default

    Reset to Factory Default To reset to factory defaults: Power down your Wren V5AP . 2 . Unplug power cord . 3 . While holding down the Power button, plug in power cord . Continue to hold the Power button for 3-5 seconds, and then release the Power button .

  • Page 22: Care And Maintenance

    Care and Maintenance Place the Wren V5AP on a level surface away from sources of direct sunlight or excessive heat . Clean your Wren V5AP with a soft damp cloth . Do not use furniture polish or other cleaning agents as they may damage the surface of the unit .

  • Page 23: Warranty

    (1) year anniversary consequential or liquidated damages or penalties, even if Wren or any such other party knew or should have known but before the three (3) year anniversary of the date of the possibility of such damages . Notwithstanding of purchase, evidence of registration of the Product must also be presented .

  • Page 24: Consumer Product Safety Guide

    16. Antenna items placed on or against them . • Do not connect an external antenna to the Wren • It is always best to have a clear area from where V5AP .

  • Page 25: Fcc Radiation Exposure Statement

    FCC Radiation Exposure Statement FCC ID: R48-V5AP IC: 7190A-V5AP • Reorient or relocate the receiving antenna . • Increase the separation between the equipment This device complies with Part 15 of the FCC Rules . and receiver . Operation is subject to the following two conditions: •...

  • Page 26: Weee Notice

    . If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer . Wren V5AP User Manual...

  • Page 27: Contact Wren Sound Systems

    Apple performance standards . Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards . Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance . V5AP .UM . V 1 .R0 .11 .27 .12 .US...
