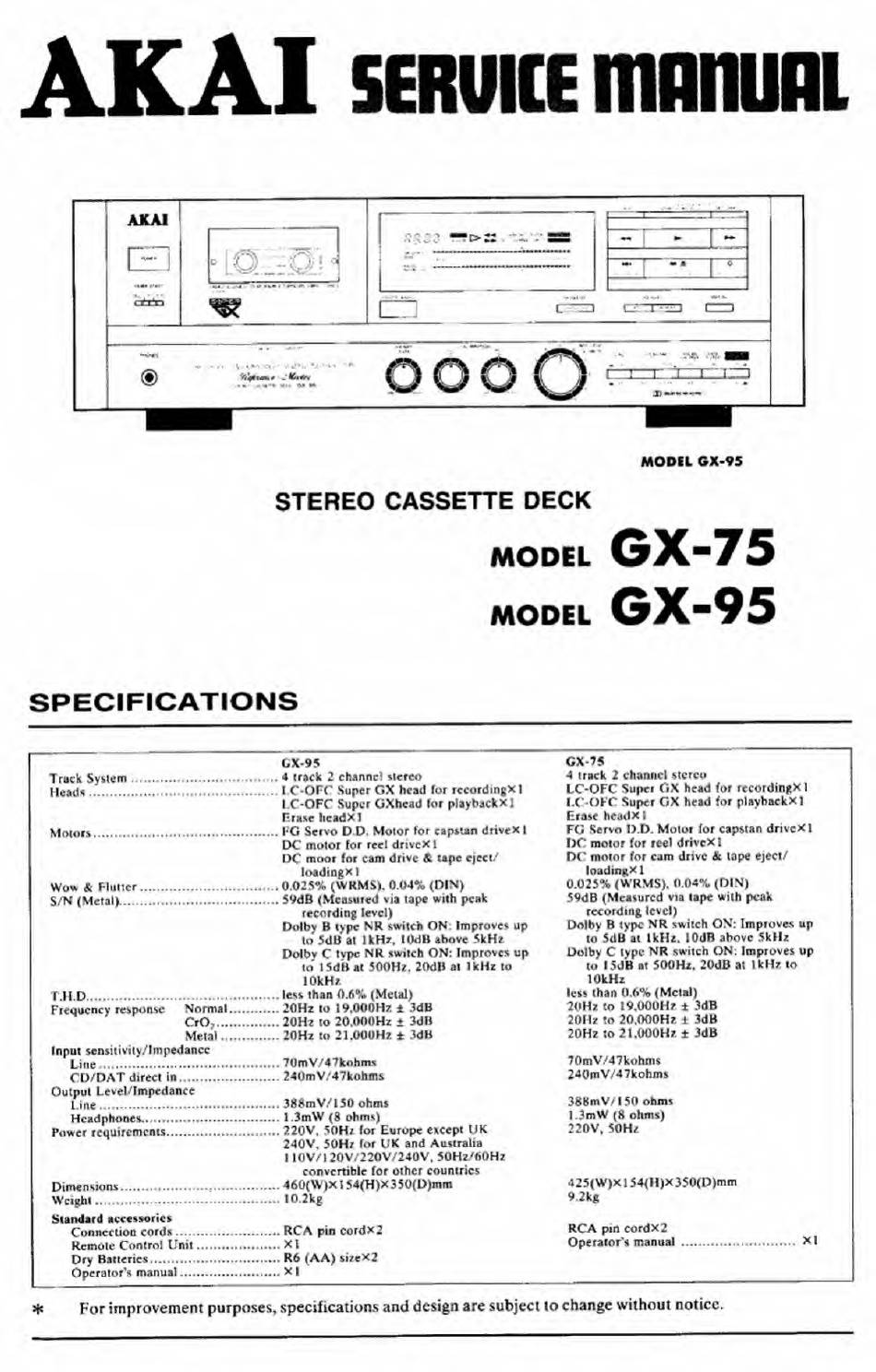

Akai GX-75 Service Manual

MODEL GX-95
STEREO CASSETTE DECK
MODEL
GX-75
MODEL
GX-95
SPECIFICATIONS
GX-95 GX-75
Track System.4 track 2 channel stereo 4 track 2 channel stereo
Heads.LC-OFC Super C.X head for rccordingXl LC-OFC Super OX head for rccordingX I
I.C-OFC Super GXhead for playbackx 1 LC-OFC Super GX head for playbackx 1
Erase hcadxi Erase headx I
Motors.FG Servo D.D. Motor for capstan drivex l FG Servo D.D. Motor for capstan drivcXl
DC motor for reel drivcXl IJC motor for reel drivcXl
DC moor for cam drive & tape eject/ DC motor for cam drive
&
tape eject/
loadingxl loadinRXl
Wow & Flutter.0.025% (WRMS). 0.04% (DIN) 0.025% (WRMS). 0.04% (DIN)
S/N (Metal).59dB (Measured via tape with peak 59dB (Measured via tape with peak
recording level) recording level)
Dolby B tvpc NR switch ON: Improves up Dolby B type NR switch ON: Improves up
to 5dB at 1kHz. lOdB above 5kHz to 5dB at 1kHz. 10dB above Skllz
Dolbv C tvpc NR switch ON: Improves up Dolby C type NR switch ON: Improves up
to ISdB at 500Hz. 20dB at 1kHz to to l5dB at 500Hz. 20dB at 1kHz to
10kHz 10kHz
T.H.D.less than 0.6% (Metal) less than 0.6% (Metal)
Frequency response Normal.20Hz to 19.000Hz
i
3dB 20Hz to 19.000Hz ± 3dB
CrO-.20Hz to 20.000Hz ± 3dB 20Hz to 20.000Hz ± 3dB
Metal.20Hz to 21.000Hz ± 3dB 20Hz to 21,000Hz ± 3dB
Input scnsitivity/Impedancc
Line.70mV/47kohms 70mV/47kohms
CD/DAT direct in. 240mV/47kohms 240mV/47kohms
Output Level/Impcdance
Line.388mV/l50 ohms 388mV/l50 ohms
Headphones.1.3mW (8 ohms) 1.3mW (8 ohms)
Power requirements.220V, 50Hz for Europe except UK 220V, 50Hz
240V. 50Hr for UK and Australia
110V/120V/220V/240V, 50Hz/60Hz
convertible for other countries
Dimensions...460(W)X 154(H)X 350(D)mm 425(W)x 154(H)X350(D)mm
Weight.10.2kg 9.2kg
Standard accessories
Connection cords.RCA pin cordx2 RCA pin cordx_
Remote Control Unit.XI Operator s manual . XI
Dry Batteries.R6 (AA) si/eX2
Operator's manual.XI __
For improvement purposes, specifications and design are subject to change without notice.
