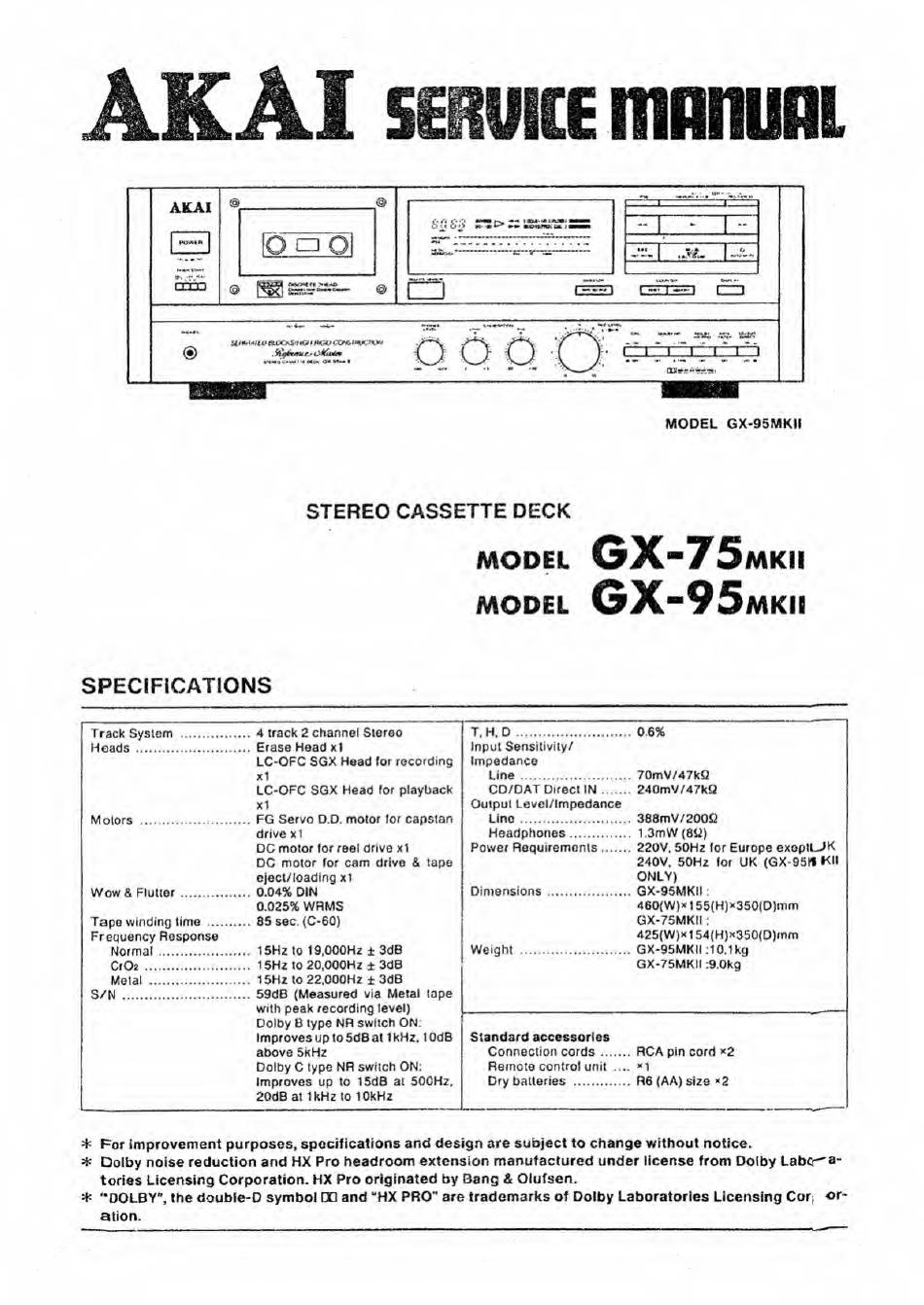

Akai GX-75MKII Service Manual

STEREO CASSETTE DECK
MODEL
GX-75mKII
MODEL
GX-95mkib
SPECIFICATIONS
Track System . ... 4 track 2 channel Stereo
T. H. D. . 0 6%
Heads . ... Erase Head xl
Input Sensitivity/
LC-OFC SGX Head for recording
Impedance
xl
Line. . 70mV/47kQ
LC-OFC SGX Head for playback
CD/DAT Direct IN. 240mV/47kQ
xl
Output Level/Impedance
Motors . ... FG Servo D.D. motor for capstan
Lino. 388mV/200Q
drive xl
Headphones. 1.3mW (8£2)
DC motor for reel drive xl
Power Requirements. 220V, 50Hz for Europe exoptL-IK
DC motor for cam drive & tape
240V. 50Hz for UK (GX-95H Kll
eject/loading xl
ONLY)
Wow & Flutter. ... 0.04% DIN
Dimensions. GX-95MKII:
0.025% WRMS
460(W)x 155(H)x350(D)mm
Tape winding time . ... 85 sec. (C-60)
GX-75MKII:
Frequency Response
425(W)xl54(H)x350(D)mm
Normal .
... 15Hz to 19.000Hz ± 3dB
Weight . GX-95MKII :10.1kg
Cf02 . ... 15Hz to 20,000Hz ± 3dB
GX-75MKII :9.0kg
Metal . ... 15Hz to 22.000Hz ±3dB
S/N . ... 59dB (Measured via Metal tape
with peak recordina level)
Dolby B type NR switch ON:
Improves up to 5dB at 1 kHz. 1 QdB Standard accessories
above 5kHz
Connection cords. RCA pin cord x2
Dolby C type NR switch ON:
Remote control unit .... xl
Improves up to 15dB at 500Hz,
Dry batteries . R6 (AA) size x2
20dB at 1kHz to 10kHz
* For improvement purposes, specifications and design ore subject to change without notice.
* Dolby noise reduction and HX Pro headroom extension manufactured under license from Dolby Labora¬
tories Licensing Corporation. HX Pro originated by Bang & Olufsen.
* "DOLBY", the double-D symbol □□ and "HX PRO" are trademarks of Dolby Laboratories Licensing Cor, or¬
ation.
