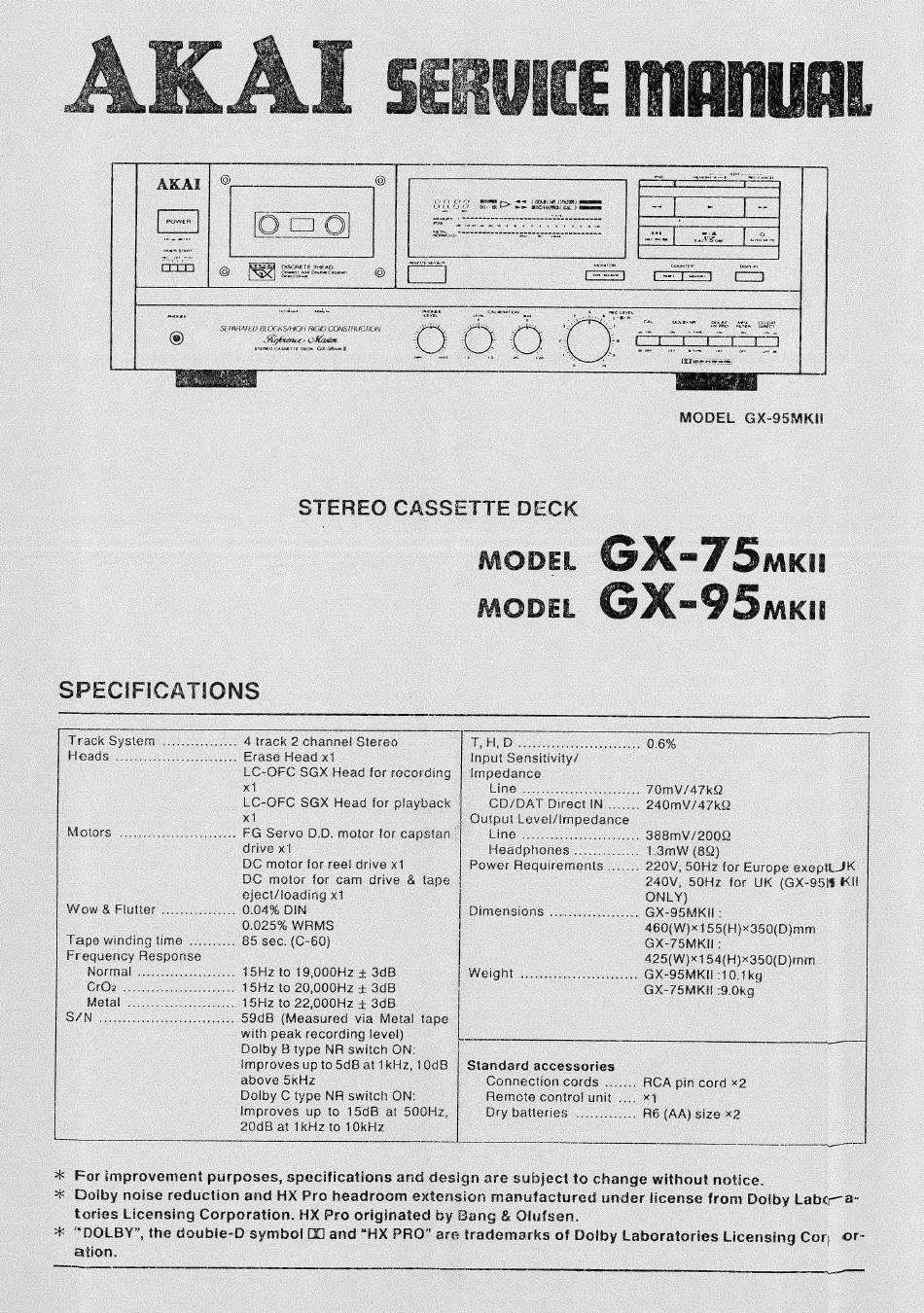

Akai GX-75 MKII Service Manual

1 mooe ot (OGL Cee
wom > we
SEPARATED BL OCKSIAGH RIGID CONSTRUCTION
tg c, Mater
STEREO CASEETIE O€CK GX-DEnacH
» Sonera Ee
MODEL GX-95MKII
STEREO CASSETTE DECK
SPECIFICATIONS
Track System
Heads
Motors
Wow & Flutter
Tape winding time
Frequency Response
Normal
move. GX=7 5x
move. @X=-95mxi
4 track 2 channel Stereo |
Erase Head x1
LC-OFC SGX Head for recording
x1
LC- OFC SGX Head for playback |
x1
FG Servo D.D. motor for capstan ©
drive x1
DC motor for reel drive x1
DC motor for cam drive & tape
eject/loading x1
0.04% DIN
0.025% WRMS
85 sec. (C-60)
15Hz to 19,000Hz + 3dB
15Hz to 20,000Hz + 3dB
15Hz to 22,000Hz + 3dB
$9dB (Measured via Metal tape
with peak recording level)
Dolby B type NR switch ON: |
Improves up to 5dB at 1kHz, 10dB
above 5kHz
Dolby C type NR switch ON:
Improves up to 15dB at 500Hz,
20dB at 1kHz to 10kHz
nD 0.6%
Input Sensitivity/
Impedance
Eine 70MV/47k
CD/DAT Direct IN ....... 240mV/47kQ2
Output Level/Impedance
Ein@ 388mV/2002
Headplones 1.3mW (822)
Power Requirements. ....... 220V, 50Hz for Europe exeptt JK
240V, 50Hz for UK (GX-95\6 KIl
ONLY)
Dimensions ......... GX-95MKII :
460(W)x155(H)x350(D)mm
GX-75MkIl:
425(W)*154(H)x350(D)mm
WeIGht 22 GX-95MKIl :10.1kg
GX-75MKIl :9.0kg
Standard accessories
Connection cords RCA pin cord x2
Remete contro] unit .... x7 :
Dry batteries R6 (AA) size x2
a ee
ation.
Gouna es
