Summary of Contents for Kestrel 7000

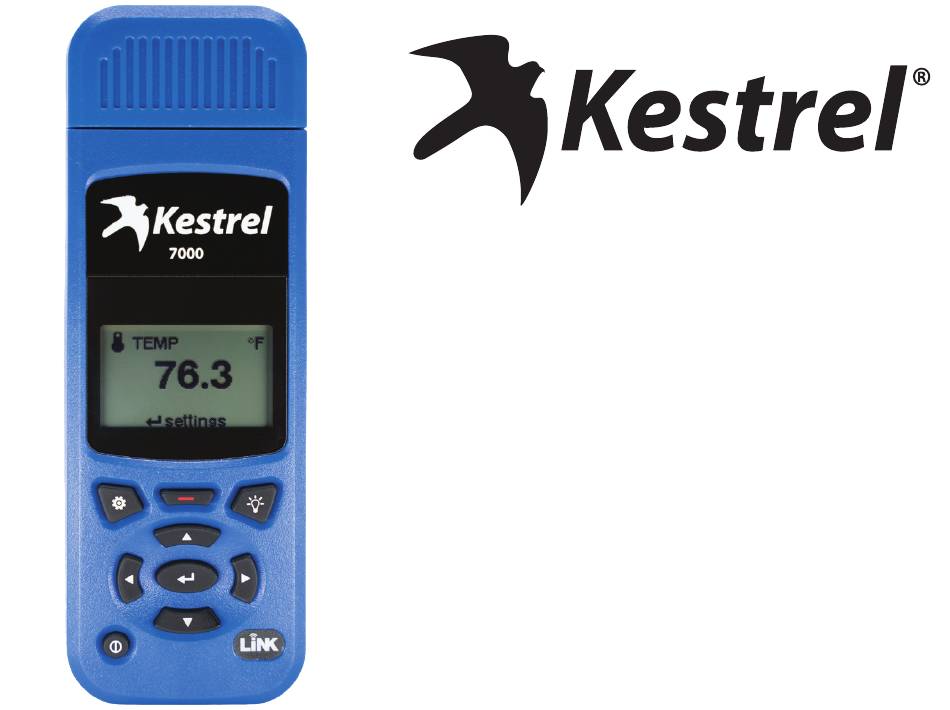

- Page 1 USER GUIDE Kestrel 7000 Environmental Meter www.kestrelinstruments.com...
-
Page 2: Table Of Contents
CONTENTS Measurements and Features ..........3 Getting to Know Your Kestrel ..........5 Buttons ...................6 Kestrel Options Menu ............6 Kestrel Menu Navigation ............7 Mode Screens ................8 Getting Started ..............9 Using Min/Avg/Max ............10 Connecting To Devices Using Link ........10 Creating, Viewing, & Exporting Data Logs .....11 Sensor Replacement ............13... -
Page 3: Measurements And Features
5000 5200 5500 5400 7000 MEASUREMENTS Icon Environmental Professional Weather Environmental Wind Speed | Air Speed • • • • (mph | fpm | Bft | m/s | km/h | kt) • • • • • Temperature (˚F | ˚C) •... - Page 4 Naturally Aspirated Wet Bulb Temp (˚F | ˚C) • optional 5000 5200 5500 5400 7000 FEATURES Environmental Professional Weather Environmental Replaceable Sensor(s) • LiNK Connectivity & Kestrel LiNK Mobile App • Backlit Display switchable white or • • • • • Night-Vision preserving red...
-
Page 5: Getting To Know Your Kestrel
GETTING TO KNOW YOUR KESTREL BACK FRONT SENSOR MODULE REPLACEABLE REPLACEMENT TEMPERATURE/ SCREWS HUMIDITY SENSOR SENSOR MAIN UNIT SERIAL SERIAL NUMBER NUMBER SUNLIGHT AA BATTERY (1) READABLE (Lithium recommended) DISPLAY CAPTURE BATTERY DOOR OPTIONS/EXIT BACKLIGHT SELECT SCROLL/ADJUST LANYARD ATTACHMENT BATTERY DOOR LATCH... -
Page 6: Buttons
Button Name Function accessed from the main Options menu by pressing the POWER Turns Kestrel on and off. button from any Weather Measurement Screen or Press for on, hold for two the main Targeting Screen. seconds to turn off. • BLUETOOTH »... -
Page 7: Kestrel Menu Navigation
KESTREL MENU NAVIGATION TYPES OF MENU ITEMS » Tasks are executed by highlighting the field and pressing Select. » The presence of a submenu is indicated by a “…” following a field. » Highlight the field and press Select to enter a submenu. -
Page 8: Mode Screens
MODE SCREENS MORE MEASUREMENTS Data Point Scroll Bar Measurement Data Point Value Graph of Stored Data Log & Icon Units Data Point Time Stamp Current Measurement Screen Min Ave Max Screen Data Graph Screen Data Points Screen Press SELECT to enter settings Press SELECT to start, stop Press... -
Page 9: Getting Started
4. SET AUTO SHUTDOWN. Scroll to and select Display. 9. SET LANGUAGE. Scroll to and select Lang. Adjust Scroll to Auto Shtdwn and choose a time window to desired language: English, Deutsche, Francais, after which the Kestrel will shut down without any Espanol. button presses. -
Page 10: Using Min/Avg/Max
USING MIN/AVG/MAX CONNECTING TO DEVICES USING LINK Pressing the right scroll button from any Current If your Kestrel is marked LiNK on the bottom front label, Measurement Screen will open the Min/Avg/ it can be connected wirelessly to other LiNK-compatible Max Screen. -
Page 11: Creating, Viewing, & Exporting Data Logs
Off to stop logging when full. » When Auto Store is set to On, the Kestrel unit will automatically begin logging at the rate set in Store Rate. -
Page 12: Manual Data Logging
» Scroll to the Graph Data Screen of the desired » Follow the links at www.kestrelinstruments.com measurement. This can be done by scrolling right to locate Kestrel LiNK in the App or Play store and from the desired Current Measurement Screen or install on your mobile device. -
Page 13: Sensor Replacement
Sensor replacement should be performed in a clean, dry main unit, and gently press area. it into place. 1. Turn off your Kestrel 7000 and remove the battery. Sensor replacement should be performed with the unit completely off and without power. 2. With the T10 key, remove the two screws 6. - Page 14 SENSOR REPLACEMENT (cont.) 7. Replace the battery in the main unit and turn it on. Your Kestrel 7000 will detect the new sensor module. Your new module is already calibrated, and there is no need to manually enter any calibration coefficients into the main unit.
-
Page 15: Year Limited Warranty
5 YEAR LIMITED WARRANTY Your Kestrel instrument is warrantied to be free of defects in materials and workmanship for a period of FIVE YEARS from the date of its first consumer purchase. NK will repair or replace any defective product or part when notified within the warranty period, and will return the product via domestic ground shipping or NK’s choice... - Page 16 Manufactured and Distributed by: NIELSEN-KELLERMAN 21 Creek Circle, Boothwyn, PA 19061 Phone: (610) 447-1555 Fax: (610) 447-1577 www.KestrelInstruments.com info@NKhome.com CONTACT US AT (800) 784-4221 Toll Free North America (610) 447-1555 Email: support@KestrelInstruments.com Facebook.com/KestrelMeters Twitter: @KestrelWeather Instagram: @KestrelWeather Youtube Channel: Kestrel Weather Meters 319112_0_24.07.09...
