Summary of Contents for HAMAR LASER L-703SP

  • Page 2: Warranty

    WARRANTY Hamar Laser Instruments, Inc., warrants each instrument and other articles of equipment manufactured by it to be free from defects in materials and workmanship under normal use and service, its obligation under this warranty being limited to making good at its factory any instrument and other article of...

  • Page 3: Table Of Contents

    Interpreting the Plus and Minus Signs in the Live Displays ............39 L-703SP - How It Works .......................40 Step-by-Step Surface Plate Calibration Procedure ................40 L-703SP - How It Works – Step 2 - Line View ................52 Appendix A – Installing Additional Microsoft Software ..............58...
  • Page 4 Installing Microsoft .NET Framework 4 ..................58 Appendix B – ANSI B89.3.7.2013 Standard Tolerance Table ............59...

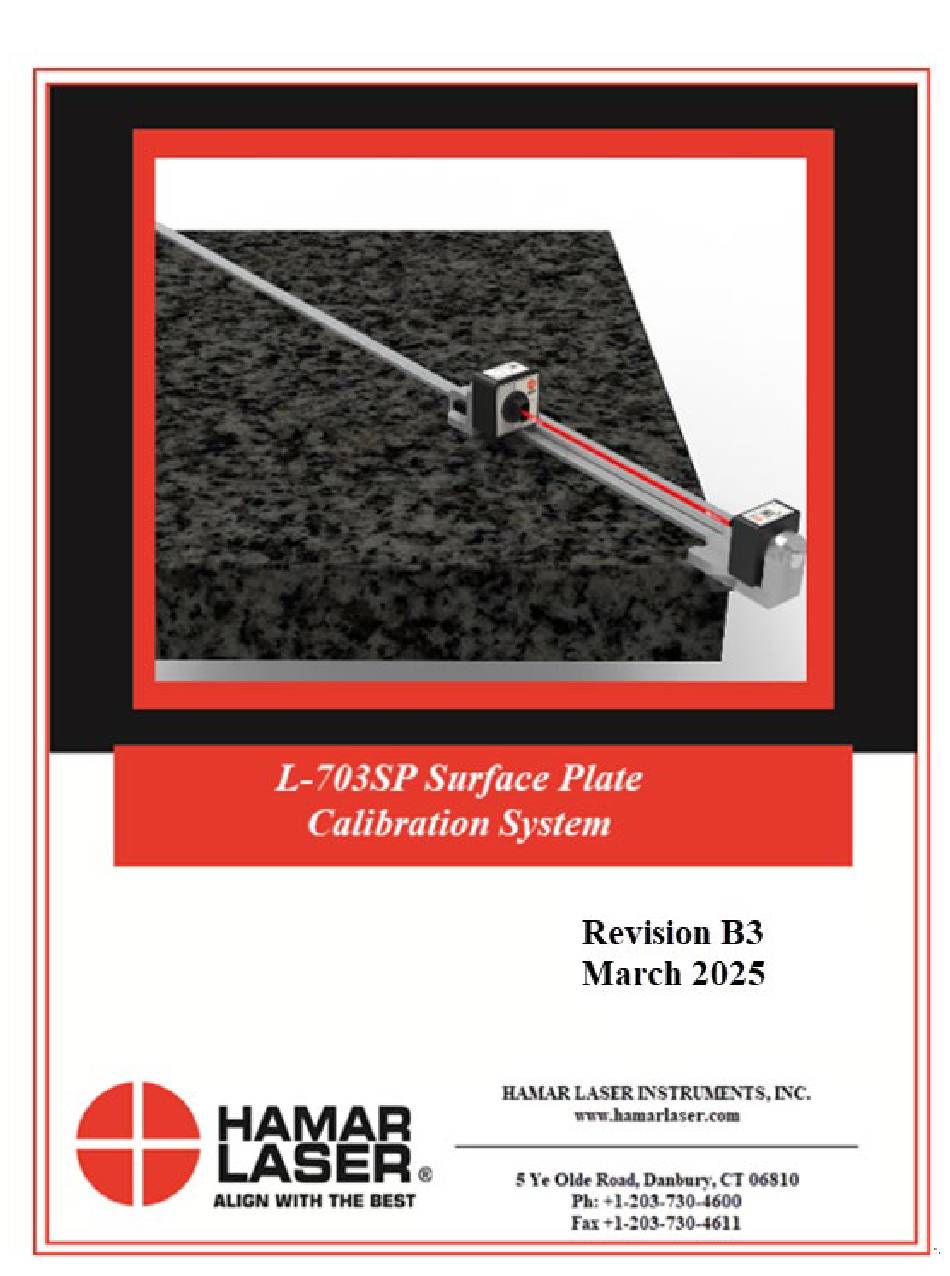

  • Page 5: L-703Sp Surface Plate Calibration System

    L-703SP Surface Plate Calibration System The L-703SP Surface Plate Calibration System has been designed to quickly and very accurately check the calibration of surface plates using the Moody Method, following the ASME B89.3 Standard for Surface Plate Calibration. It uses Plane6 Surface Plate Calibration Software and specially designed fixtures to give a high degree of accuracy when calibrating surface plates.

  • Page 6: L-703Sp Surface Plate Calibration System - Hardware Overview

    L-703SP Surface Plate Calibration System - Hardware Overview This section describes the equipment and operation for calibrating surface plates using Hamar Laser’s L-703SP Surface Plate Calibration Laser System. The system includes the laser, targets, fixtures, and software. L-703S Spindle & Straightness Laser - Features and Setup Operating range of 50 ft.

  • Page 7: L-703S Angular Adjustments

    A/C Connector The L-703S comes with a rechargeable battery. The connector is shown in Figure 3 To connect it, line up the red dot on the A/C adapter plug with the red line on the connector. L-703S Angular Adjustments The L-703S comes with pitch (vertical) and yaw (horizontal) angular adjustments to adjust (tilt) the laser to align it to reference points or a rotation axis.

  • Page 8: L-703S Level Vials

    L-703S Level Vials When using the L-703S in machine tools, we typically will do measurements with the laser at the NORMal position (12:00) and then rotated with the spindle 180 degrees to the INverted position (6:00). There are level vials on the side of the laser to help you know if the laser is directly at 12:00 or 6:00.

  • Page 9: L-703Sp Surface Plate Calibration System - Hardware Overview

    The T-1297 3-Axis Wireless Spindle & Straightness Target Hamar Laser’s T-1297 3-Axis Wireless Spindle & Straightness Target is designed work with our L-703S Spindle & Straightness Laser. With Bluetooth communication and multiple measuring axes, the T-1297 target is a multi-purpose target that can be used for many different applications.
  • Page 10 T-1297 Scanning Laser Mode - Optional For applications other than surface plate calibration, the T-1297 Targets can be converted to Scanning Mode and used with the auto-rotating laser planes in our L-702SP and any L-730/L-740 Series lasers. These lasers automatically rotate to create a laser plane, which can then be measured with the T-1297.

  • Page 11: How To Pair The T-1297 Target's Bluetooth To A Pc

    How to Pair the T-1297 Target’s Bluetooth to a PC For your computer to see the Bluetooth device, you need to turn it on. 1. Tap on Start (the Microsoft Logo) > Settings. 2. Navigate to Devices and go to Bluetooth Or click on the Bluetooth icon in the system tray and click on Add a Bluetooth Device.

  • Page 12: T-1297 Usb Data Backup Communications Cable

    Exit Settings window T-1297 USB Data Backup Communications Cable The L-703SP’s USB charging cable also functions as a data backup communications cable in case something happens to the Bluetooth connection. Here’s how to connect it: Important Note: To use the USB charging cable as a backup, you will need the Silicon Labs USB Driver installed on your computer before connecting the cable.

  • Page 13: L-703Sp Surface Plate Calibration System - Fixture Overview

    Fixture Overview A-703SP-LM Surface-Plate Mounting Fixture To accurately measure the flatness of surface plates, the L-703SP requires a stable mounting fixture to hold the laser and a special flatness- measuring base for the target to achieve the highest accuracy possible.
  • Page 14 Finally, do NOT touch the L-703SP-LM during the measurement of the line. This can cause the laser beam to move and add uncertainty to the measurement. If you touch it, wait 30 seconds for the movement to settle down and then record the...

  • Page 15: A-1297-Sp High Accuracy, Flatness Measuring Base For T-1297 Target

    A-1297-SP High Accuracy, Flatness Measuring Base for T-1297 Target A-1297-SP is used to mount the T-1297 Target (see Figure 11) to measure flatness of the plate for measuring: Flatness measurements of surfaces. • Flatness, straightness & squareness measurements of machine tool axes. •...

  • Page 16: A-703Sp-Se-A/B/C/D Target Straight-Edges And Rulers

    A-703SP-SE-A/B/C/D Target Straight-Edges and Rulers Used with the A-703SP-LM Surface-Plate Mounting Fixture (see Figure 8) as a guide for the T-1297 Target to take flatness data for each line segment. They come in the following sizes: • A-703SP-SE-A Target Straight-Edge and Ruler – 18 in. (457 mm) •...
  • Page 17 Selecting Straightedge Length To select the length of the straightedge, use the table below to see which length to use. It is recommended that you select the straight-edge length that is less than 1.5 times the Grid Line Dimension, which ensures the best stability for the bar. For example, for the 18x18 plate, use the 18 in.

  • Page 18: A-703Sp-Se-Clt Corner Locating Tools

    A-703SP-SE-CLT Corner Locating Tools To set the straight edges at the proper spacing from the edge of the plate, we supply a set of A-703SP-SE-CLT corner locating tools to aid in the setup. They come in 3 sizes: A-703SP-SE-CLT-1.5 Corner & Midpoint Straight-Edge Locating Tool - Set of 2 for 1.5 in. border A-703SP-SE-CLT-2.0 Corner &...

  • Page 19: Preparing For An Alignment

    Do not wipe back and forth. The same applies to the L-703SP Laser Window. If you see a reflection on the lens window on the laser (see Figure 16), which means it is contaminated and needs to be cleaned.
  • Page 20 2. Wear gloves! - It is very important to note that wearing thin gloves to insulate the heat from your hands is an important good practice when handling the L-703SP-LM Laser Fixture. When you hold the L-703SP-LM in your hand, it will warm the metal, causing it to grow thermally, which will happen remarkably fast – in 1 second! This...

  • Page 21: Plane6 Surface Plate Calibration Software - System Requirements

    Plane6 Surface Plate Calibration Software - System Requirements • Physical memory (RAM): 8 GB recommended for Win10 & 11 Processor: Intel Pentium4 or later version or AMD equivalent, 1.3 GHz minimum speed • Available Hard Drive space: 20 GB minimum •...

  • Page 22: Getting Started With Plane6

    Registration Code (see Figure 17). To obtain the Product Registration Code, send the PC ID Code displayed on the screen to Hamar Laser Support (Support@hamarlaser.com). A Hamar representative will issue a Product Registration Code via email to complete the registration process (see Figure 18).

  • Page 23: Creating A New Project File Or Opening An Existing Project File

    Creating a New Project File or Opening an Existing Project File When creating a new project, Plane6 will create a folder with the filename entered here. It will then create a project file in the folder with a time stamp of when it was created. After saving a project, you can open the project file and save a new file for this project, which will save the information entered in Step 1 but will clear the data recorded in Step 2.

  • Page 24: File Structure

    File Location Files are saved in the Documents/Plane6/Projects folder. Each project is saved into a dedicated folder in the Projects folder that you specified in the New File dialog box. File Structure In each Plane6 folder, there are 2 data files. The ***.p6z file contains all the data taken •...

  • Page 25: Plane6 Software - Summary Of Main Screens

    Plane6 Software – Summary of Main Screens Step 1: Set Up Plane6 Enter the horizontal and vertical dimension of the plate and the border width from the edge of the plate to the measuring line. Then select the number of points you want to measure for the horizontal, vertical and diagonal lines.
  • Page 26 Step 2 Data Collection – Line View For situations where the plate has failed calibration and needs to be resurfaced (lapped), a second data-taking method has been developed, called Line View. It is an optional feature and requires an additional license.

  • Page 27: Plane6 Screens - File Menus

    Plane6 Screens - File Menus File Menu New Project – see above Open Existing Project – same as above Save File – saves the project. Save New File for Existing Project –allows you to save a project file of the same project name to the current working directory.

  • Page 28: The Help Menu

    The Help Menu. User Manual - Opens a PDF of the manual. About This Program - Usual info about the program. Navigating Plane6 with the Status Bar Software Steps In the upper right part of all the screens is the Navigation Bar. It lists the number of steps in the software along with arrows to move to the left or the right.

  • Page 29: Plane6 Screens - Preferences

    Plane6 Screens - Preferences Click Preferences to open a window to change Plane6 settings. You can also click on the Preferences button in the lower right side of each screen in Plane6. see Page 28) Note: If you are installing the software yourself, you will need to go to Enter Target Info ( and follow the procedure to enter the target serial number and calibration factors.
  • Page 30 point. You can also choose a decimal in the display. Targets Target settings Averaging – This controls the amount of sampling the software does for both the live data display and for recording each value. If the Averaging value is set to 40, then Plan6 will record 40 values and average them, applying a spike filter to reduce noise in the measurement.
  • Page 31 Defined Targets This is a list of T-1297 Targets (or other similar targets) that have been set up in Plane6. This list will show up in the dropdown menu in Step 2. Targets – Setup Procedure When you buy a new system and laptop from HLI, the target setup is already pre-configured into Plane 6.
  • Page 32 3. Select Target Type – T-1297 Targets 3- Axis Mode To choose the T-1297 targets, select the target number with “3-Axis Mode”. Do not select “Scan Mode”. Note - the Scan Mode will automatically be added as a target type for each T-1297 selected. Scan Mode is needed with the L-702SP or L- 730/740 Series Lasers for a different application.
  • Page 33 7. Target Network ID This is needed for our A-1519/1520 Scanning targets and is not used in this application. 8. Calibration Factors - Vertical and Horizontal Slope Offsets and Focal Length. These are correction factors that are used for another application and are not needed for surface plate calibration.

  • Page 34: Plane6 Screens - Step 1: Dimensions And Tolerances

    Plane6 Screens - Step 1: Dimensions and Tolerances Enter the horizontal and vertical dimension of the plate and the border width from the edge of the plate to the measuring line. Then select the number of points you want to measure for the horizontal, vertical and diagonal lines. Next select the plate grade enter the plate serial number and top and bottom temperature (if measured).
  • Page 35 Moody Center Tolerance: As per Moody Method procedure, this is the maximum allowed deviation between the intersecting diagonal lines after all point adjustments have been made. If this tolerance is exceeded, it suggests that measurement errors were made, and it suggested that the data be retaken.

  • Page 36: Plane6 Screens - Step 2: Data Collection - Plate And Line Views

    A-703LM Laser Fixture and L-703S Laser should be placed at the point where the target icon is located and be pointed in the direction of the arrow (see more information below under L-703SP - How It Works Page 40).
  • Page 37 Save Project – click here to save the data already recorded. Clear All – this clears all the data from all the line segments recorded for the plate. Clear Line XX – this clears all the data from the line segment currently selected. Previous Point –...
  • Page 38 Target – this is the dropdown list of all the targets that have been set up in Preferences to allow you to change the target if using your laptop with a different set of laser/target. This is normally not changed unless you are switching laptops and laser/target kits.
  • Page 39 information shown in the Selected Data Point display corresponds to the selected data point within the Line View Data Grid. You can change the line segment by using the Current Line Selection control, which features a dedicated button for each individual line segment. By clicking on a new line segment, Plane6 will bring into the Data Grid the values it recorded in Plate View for that segment.

  • Page 40: Plane6 Screens - Step 3: Results

    Plane6 Screens - Step 3: Results When all the data is collected, click on Step 3 icon to bring you to Step 3: Results. This shows the Moody Method calculations to get the overall flatness results. The results are summarized in the Results Table. The plate-grade tolerance, chosen from Step 1, is applied to the data and a red X or green checkmark is displayed to indicate if the overall flatness is in or out of tolerance.
  • Page 41 Center-Line Tolerance Check Check to make sure both center-line value tolerance checks are in tolerance. This means it’s a good set of data. However, if the center value check is out of tolerance, then the B89-3-7_2013 Surface-Plate Standard recommends that the data be retaken.

  • Page 42: Plane6 Screens - Step 4: Graph

    Plane6 Screens - Step 4: Graph To see a more comprehensive graph of the flatness results, click on Step 4: Graph. This takes you to a user-adjustable graph where you can rotate the graph, zoom in and out and adjust the graph to study the results. To rotate the graph, use a mouse to click and drag left/right or up/down.

  • Page 43: Interpreting The Plus And Minus Signs In The Live Displays

    Interpreting the Plus and Minus Signs in the Live Displays The signs of the data displays indicate the position (high/low or left/right) of the target is relative to the laser beam. See the interpretation below. Vertical Axis Side View A +V center value indicates the target is higher than the laser beam.

  • Page 44: L-703Sp - How It Works

    L-703SP - How It Works Step-by-Step Surface Plate Calibration Procedure Step 1 – Assemble Laser and Laser Mount Insert the L-703S Laser into the L-703SP-LM Laser Mounting Fixture and tighten the thumb screw very tight and make sure to keep the top of the laser level.
  • Page 45 Step 4a –Place L-703SP-LM + L-703S on top of the straightedge a. Find the correct corner on which to place the...
  • Page 46 b. Place the A-703SP-LM on top of the straightedge, aligning the channel (cutout) on the bottom to the straightedge, making sure to put pressure on the straight edge to prevent it from sliding. Then, holding down the straightedge, slide the laser fixture against the straightedge to make it parallel to the straightedge and line segment.
  • Page 47 Step 5a – Place T-1297 Target & Base on the Plate Place the T-1297 Target and Base on the plate near the laser, gently push it against the straightedge, and line up the Measuring Plane of the base with the zero point on the scale (see image).
  • Page 48 Step 5c – Move the T-1297 back to Near Position and Start Recording Move the T-1297 Target back to the near point and click ABS button (next to the Zero button). Then click Record to record the first data point. When positioning the target, line up the Measuring Plane (front edge of target base mounting surface) with the ruler dimension before hitting Record.
  • Page 49 However, DO NOT TOUCH THE L-703SP- laser fixture since it does not have rubber feet and can be moved easily. Moving the fixture can cause the laser beam to move, causing measurement errors.
  • Page 50 Note - you do not need to re-adjust the laser beam since you are using the same straightedge, which means the alignment of the laser to the straightedge should hold its position, so after positioning it and the L-703SP-LM, you can start recording.
  • Page 51 Step 2. Also pay attention to which end of the line to put the L-703SP-LM Laser Fixture. For line GE, it will be the right side of the line – see below. Find the straightedge that best matches the length of that side of the plate.
  • Page 52 Step 8b - Record Second Outside Edge of Plate Locate the second outside edge recommended by Plane6, usually Line HD and repeat the process in Step 7a Step 9 – Record Mid-Point Line Segments Using the mark made by the Mid-Point Marking Tool (see Step 1), position the Corner Locating Tool on the midpoint of the outside edges and align the mark on the...
  • Page 53 As before, place the A-703SP-LM fixture on the side recommended by Plane6 and place the target in the near position and hit Record. Continue taking data for the whole segment. Step 10 - Record the Rest of the Line Segments Record the rest of the line segments, following the recommended sequence from Plane6.
  • Page 54 values or by clicking on it and seeing the values in the table. 3. Retaking a Data Point - You can also click on a point and retake the data point if you think it is wrong. 4. Manually Picking Data Points - You can turn off Auto Step if you want to move the target icon manually.
  • Page 55 Plane6 will automatically retake the data unless Cancel is clicked. Step 9 – Review Results in Step 3 Results Now click on Step 3 to view the results. The plate grade is shown, the tolerance for that grade and the overall flatness results from the data.

  • Page 56: L-703Sp - How It Works - Step 2 - Line View

    One of the annoying parts of using electronic levels when re-surfacing a surface plate is you have to shoot the entire plate for flatness to see how the lapping process is going. This is a waste of time! With the L-703SP Surface Plate Calibration Systems, you can do quick checks of a single line segment in about 3-5 minutes to see how much the flatness error has been reduced.
  • Page 57 Use the corner/midpoint locating tool to set up the straightedge as shown above on pages 35, 41 or 42. Then, place the L-703SP-LM Laser Fixture on the straightedge, as shown above. Step 4 - Set Up Laser Line Before taking data, it’s a good idea to make sure the laser is still reasonably parallel to the A- 703SP-LM Laser Mount.
  • Page 58 Step 5 - Move Target to Far Point and Adjust Laser’s Pitch/Yaw Move T-1297/A-1297-SP Base to the far end of the straightedge. Adjust the Pitch and Yaw knobs on the laser until you get to around 2,000 µin (50 µm) for the V axis and 5,000 µin (125 µm) for the H axis.
  • Page 59 Step 8 – View Results When you’re done recording the values for AE, you’ll see the raw data (R) in row L1. You will also see the corrected data (C), where the endpoints are zeroed and the max value represents the overall flatness error for the segment.
  • Page 60 Step 11 – Record Values for Other Line Segments By clicking on another line segment in the Current Line Selection box, you can take data for that segment by following the steps above.
  • Page 61 Plane6 Sample Report...

  • Page 62: Appendix A - Installing Additional Microsoft Software

    Appendix A – Installing Additional Microsoft Software Installing Microsoft .NET Framework 4 You must have Microsoft .NET Framework installed before installing the Plane6 software. If you are unsure whether you have Microsoft .NET Framework 4 installed on your computer, open the Control Panel.

  • Page 63: Appendix B - Ansi B89.3.7.2013 Standard Tolerance Table

    Appendix B – ANSI B89.3.7.2013 Standard Tolerance Table Plane6 Software uses the tolerances for the standard plate sizes shown in Figure 29 below from the ANSI B89.3.7.2013 Standard for Granite Surface Plates. For non-standard sizes, we use the formula from the standard: “Flatness tolerance for surface plates, whose sizes are not listed in Table 1, is obtained from the following formula: Overall flatness tolerance (µm) = 1 + 1.6*D Overall flatness tolerance (µin.) = 40 + D...
