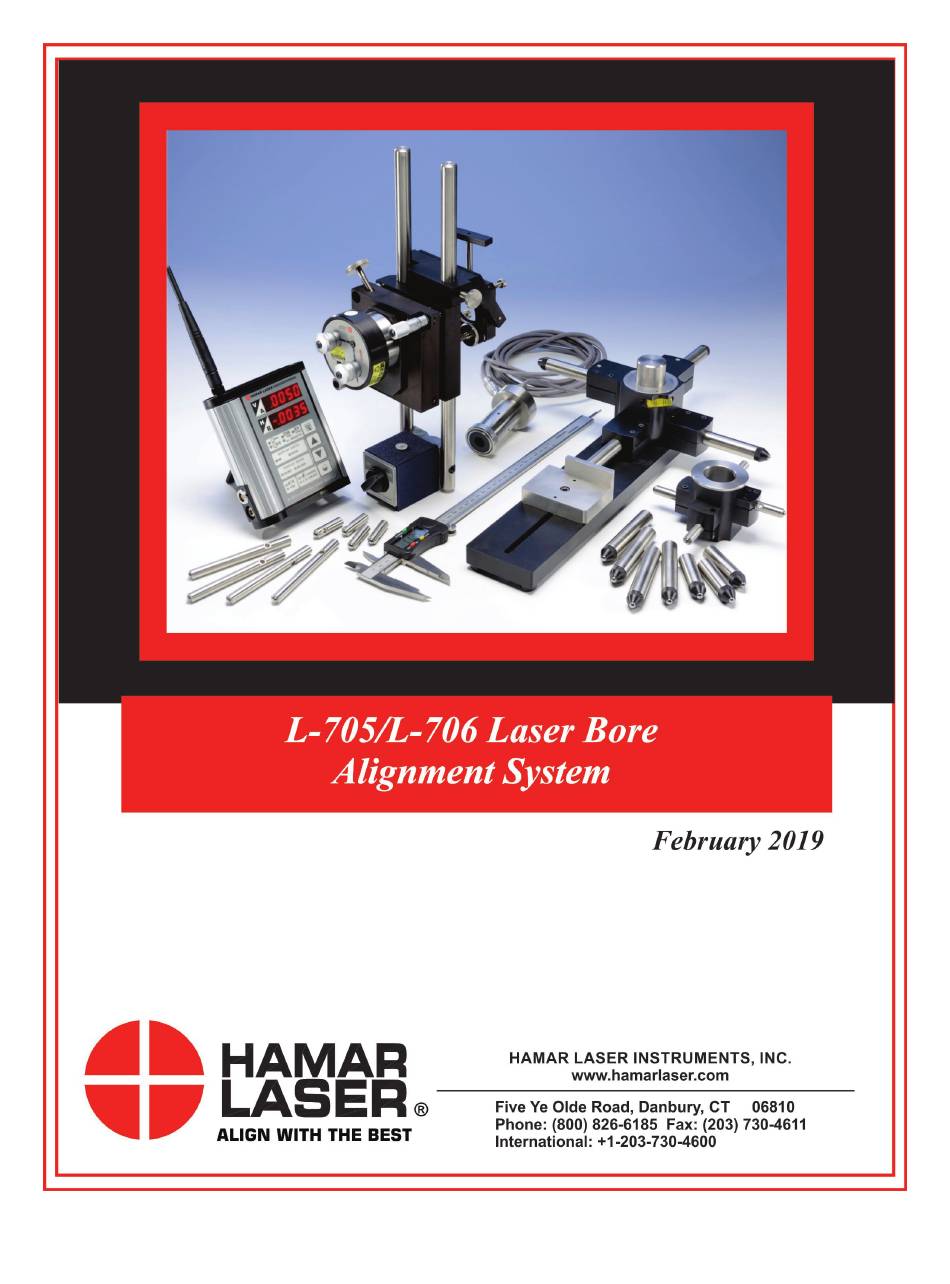

HAMAR LASER L-705 Manual

Laser bore aligment system
Hide thumbs Also See for L-705:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-705 and is the answer not in the manual?

Questions and answers

Related Manuals for HAMAR LASER L-705

Summary of Contents for HAMAR LASER L-705

  • Page 2 WARRANTY Hamar Laser Instruments, Inc., warrants each instrument and other articles of equipment manufactured by it to be free from defects in materials and workmanship under normal use and service, its obligation under this warranty being limited to making good at its factory any instrument and other article of...

  • Page 3: Table Of Contents

    Table of Contents Critical Note on Calibration ......................1 Introducing the L-705/L-706 Laser Bore Alignment System ............2 The Laser Bore Alignment System Components ................4 Model L-705 Laser ........................4 Model L-706 Long Distance Laser ....................4 Adjusting the Laser ......................5 Attaching the Battery Pack ....................5 Replacing the Batteries ......................6...

  • Page 4: Critical Note On Calibration

    Critical Note on Calibration When configuring the R-1307 Readout, it is critical to match the target ID with the target ID identified on the serial number of the target. For example, if the target ID on the target serial number label is 2, then the R-1307 must also be set to the number 2. If the target and readout and not matched, a centering error of up to .002 in.

  • Page 5: Introducing The L-705/L-706 Laser Bore Alignment System

    Designed for high-accuracy bore alignments, the L-705/L-706 Laser Bore Alignment System offers the most accurate, yet easy to use laser alignment systems. With high resolution, capability to measure a wide range of bore diameters, and our patented self-centering bore adapters, this is the best bore alignment system on the market.
  • Page 6 Alignment System Features Fast and simple setup • Built-in horizontal and vertical angular adjustments for quick referencing • • Simple fixturing to mount the laser into the reference bore Visible laser beam straight to .0001 in. in 10 ft. (0.0025 mm in 3 m) or .001 in. in 100 ft. (0.025 mm in 30 m) •...

  • Page 7: The Laser Bore Alignment System Components

    50 ft. Model L-706 Long Distance Laser For long-distance applications that exceed the range of the L-705, the L-706 Laser is equipped Figure 1 – The L-706 Laser with the finer angular adjustments necessary to set the laser beam to the center of the far reference target.

  • Page 8: Adjusting The Laser

    Attaching the Battery Pack The L-705 Laser battery pack is a stand-alone unit that attaches magnetically to an extruder gearbox. The battery pack has a detachable cord with a probe at each end.

  • Page 9: Replacing The Batteries

    Put the cover back on and secure it to the battery pack with the screws. Pulse/Continuous Modes (L-705 and L-706 Lasers) The L-705 and L-706 Lasers are now equipped with a PULSE/CONTinuous switch, which manually switches the laser beam between Pulsed and Fixed Beam Modes. Pulse Mode automatically removes the effects of excess (ambient) background light for the R-1307 readouts, providing a more accurate reading.

  • Page 10: Model A-512 2-Axis Self-Centering Target

    Model A-512 2-Axis Self-Centering Target The A-512 Target unit is comprised of a target cell, a bore adapter, and an insertion handle (see Figure 5). The target is inserted into the bore to sense the position of the laser beam. Laser beam position data is displayed on a readout.

  • Page 11: The A-514 A, B And C Self-Centering Laser And Bore Adapters For The A-512 Target

    The A-514 A, B and C Self-Centering Laser and Bore Adapters for the A-512 Target Note: The A-514 Adapters are self-centering and therefore cannot be used with the A-512 for measuring bore diameters. The A-514 self-centering laser and bore adapters accurately and quickly position the laser and target on the bore centerline.

  • Page 12: Bore Diameter Ranges For The A-514 Bore Adapters

    Bore Diameter Ranges for the A-514 Bore Adapters Bore Diameter Range A-514A Bore Adapter HLI PART LENGTH ‘L’ BORE DIAMETER RANGE NUMBER 51403-1 1.22 (30.99 mm) 3.750 – 4.750 (95.25 – 120.65 mm) 51403-2 1.72 (43.69 mm) 4.750 – 5.750 (120.65 – 146.05 mm) 51403-3 2.22 (56.39 mm) 5.750 –...

  • Page 13: The A-514Gs And A-514Gl Leg-Setting Gage

    The A-514GS and A-514GL Leg-Setting Gage The gages are used to set the A-514 Adapter legs to the correct bore diameter. The gages are available in two sizes, depending on the size of the bore being measured. The A-514GS is used with the small (A-514A) or medium (A-514B) bore adapters.

  • Page 14: Setting The Legs For The A-514Gl (Using Large Bore Adapters)

    Setting the Legs for the A-514GL (Using Large Bore Adapters) The large leg gage can be used for all three bore adapters. When setting the legs for the large bore adapter you must use the fixture extension. Example: (see Figure 8) 1.

  • Page 15: The T-218 2-Axis See-Through Target/T-225L Large Bore Flange Adapter

    The T-218 Target includes a 10x10 mm PSD (position sensing device). It can be used with Hamar Laser’s Bore Alignment Lasers, such as the L-700, L-705, L-706 and L-708 and is compatible with the R-1307 series of readouts, Hamar Laser alignment software and the T-230 Target Stand.

  • Page 16: The Model R-1307 Readouts

    Note: Below is a brief description of The Model R-1307C and Model R- 1307-900/2.4 and R-1307-2.4ZB. For detailed information and instructions for your specific model, please see Hamar Laser’s R-1307 operations manual. Model R-1307C •...

  • Page 17: Model R-1307 Readout -- Control Panel

    Model R-1307 Readout -- Control Panel...

  • Page 18: Model R-1307C Readout -- Control Panel

    Model R-1307C Readout -- Control Panel...

  • Page 19: Configuring The R-1307 Or R-1307C For A Local Target

    Configuring the R-1307 or R-1307C for a Local Target Before connecting and configuring a readout, make sure to mount the3 laser and install the target. Note: Shut off power to the readout before connecting or disconnecting a target from the local port. 1.
  • Page 20 Figure 14 -- Connecting a Local Target to the R-1307...

  • Page 21: The L-111 Laser Stand And L-102 Laser Beam Translator

    The L-111 Laser Stand and L-102 Laser Beam Translator The L-706 Laser can be used for applications up to 110 ft. (33 m). The fine-adjustment micrometers can steer the laser beam in the horizontal and vertical axes to .001 in. (0.03 mm) in 110 ft. (33 m). It can either be mounted in customer-supplied fixturing or used with our L-111 Laser Stand and L-102 Laser Beam Translator to be mounted outside the bore.

  • Page 22: How To Change The L-111 From A Horizontal Surface To A Vertical Surface

    How to change the L-111 from a Horizontal Surface to a Vertical Surface The L-111 has two mounting orientations: one for horizontal surfaces (shown left), and one for vertical surfaces (shown right), such as bore or gearbox flanges. L-111 with L-706 in Vertical Mount Mode L-111 with L-706 in L-111 with L-706 in Horizontal Mount Mode Vertical Mount Mode...
  • Page 23 2. Using a screwdriver, remove the large magnetic base dustcover screw. On top of the magnetic base you will see the four attachment screw holes, however, you will only use three screws to attach the bracket to the magnetic base. This is a kinematic mount that stabilizes the laser base for accurate and stable measurements.

  • Page 24: Bore9 Software

    These results can be plotted, saved, and exported to an Excel spreadsheet. Note: For complete instructions for using the Bore9 Software, refer to Hamar Laser’s Bore9 manual. In Step 1 – Bore Setup, the user enters setup information for •...

  • Page 25: Bore Alignment Using The T-218 Target/T-255 Bore Fixture

    Bore Alignment Using the T-218 Target/T-255 Bore Fixture Laser Buck-In Using the T-218 Target/T-225L Bore Fixture 1. Place the T-218/T-225L Target in the Near Bore in the NORMal position (see Figure 15). 2. Insert the laser into the L-111 Stand with the level on the top, centered from left to right (see Figure 16).
  • Page 26 15. Add the two V readings together and divide by 2 (average the two V values). Add the two H readings together and divide by 2 (average the two H values). These are the V and H Near-Bore target Set Points.
  • Page 27 Taking a measurement for each inner bore 1. Take a reading on the near target with the target in the normal position (see Figure 15). Write down the V and H Readings (NORMal). 2. Invert the target and take another reading (see Figure 17). Write down the V and H Readings (INverted).

  • Page 28: Bore Alignment Using The A-512 Target/A-514 Bore Adapter

    Bore Alignment Using the A-512 Target/A-514 Bore Adapter To perform alignments, the laser is mounted in the L-111 Laser Stand and the L-102 Laser Beam Translator is attached. The L-111 has coarse angular adjustment capabilities and the L-102 can translate (move) the laser beam up/down and left/right without changing the angle.

  • Page 29: Bore Alignment Using The L-111/L-102 And A-512/A-514

    Bore Alignment Using the L-111/L-102 and A-512/A-514 Two Point Buck-In Procedure Step 1: Insert the Target in the Near Bore Measure the nominal bore ID. Use the A- 514G Leg-Setting Gage to set the legs of the A-514 Bore Adapter to the nominal bore ID (see Page 10 for a detailed procedure on how to set the legs).
  • Page 30 Step 4: Laser Rough-in -- Position the laser until it is on target at the Near Bore Loosen the thumb screws on the L-111 stand and slide the assembly up or down until the laser beam is visually near the center of the target (you do not need the R-1307 for this). Tighten the thumb screws. Note: To aid in seeing the laser, tape a small piece of paper over the target window and trace an outline of the target opening.
  • Page 31 Step 8: Move the Target Back to the Near Bore Remove the target from the Far reference bore and reinsert it into the Near Bore. Be sure to place the target in the exact location that it was in previously, with the cable at 6 o’clock.
  • Page 32 Step 9: Translate the Laser to .0000 in. in the Near Bore Using the fine adjustments on the L-102 beam translator, adjust the laser beam until the readout displays .0000 in. (0.00 mm) both vertically and horizontally (see Page 18). Coarse Adjust the L-102 Fine Adjust the L-102 Step 10: Steer the Laser Beam to .0000 in.
  • Page 33 Step 11: Move the Target Back to the Near Bore Remove the target from the Far Bore and reinsert it into the Near Bore. If the readout doesn’t display .0000 in. both vertically and horizontally, repeat Steps 9 and 10 until the readout displays .0000 in. vertically and horizontally in the near and Far Bore.

  • Page 34: Bore Alignment Using The L-111/ L-102/Bore9

    Bore Alignment Using the L-111/ L-102/Bore9 Note: A visual buck-in (determining visually that the laser beam is near the center of the target without using the readout or the beam translator) should be done before attempting to buck-in using the readout and beam translator.
  • Page 35 Step 2: Target Mounting Error a. Insert the A-512 into the A-514 Adapter and insert them into the Near Bore, making sure the adapter's level vial is level. Then adjust the L-102 to zero the display and center the laser into the first reference bore (the graphic below shows how the L-102 moves the height of the laser beam, but not the angle).
  • Page 36 Step 3: Laser Buck-in a. Follow the on-screen instructions to enter distances from the laser to the Near Bore (D1) and from the Near Bore to the Far Bore (D2). Insert the target into the Near Bore and re-adjust the L- 102 to zero the display and center the laser into the bore.
  • Page 37 c. With buck-in offsets applied in the Bore9 software, steer the laser using the Pitch and Yaw knobs (angular adjustment) on the L-706 until the H and V displays are zero. d. Repeat the process to confirm zero at both end bores. The laser is now “bucked in” (concentric) to the centerline of the near and far reference bores.
  • Page 38 Step 5: Results a. Step 5: Results displays a graph of the results and a summary of the alignment. There are several different options to choose from. See the Bore9 Software Manual for details.

  • Page 39: Bore9 Sample Report

    Bore9 Sample Report...

  • Page 40: Appendix A - The Normin Method (Bore And Spindle)

    Appendix A – The NORMIN Method (Bore and Spindle) The NORMIN method was developed by Hamar Laser Instruments as a way of com- pensating for laser or target mounting errors in bore or spindle work. The word is a contraction of “NORMal- INverted,”...
  • Page 41 The readout always shows the displacement between the Target Center and the Laser Beam Center. When the Target Center is not on the True Bore Center, the numbers and the signs on the readout will change when the target is rotated because the Target Center is moved to a different location in relationship to the laser beam.

  • Page 42: Appendix B - Calculating Bore Diameters

    Appendix B – Calculating Bore Diameters Once the measurements have all been taken, a few simple calculations will provide detailed information on the internal diameter of the bore. Due to the design of the target and the NORMIN procedure, it is necessary only to know the reference diameter in order to calculate bore size at each measured point.
  • Page 43 Plotting Measured Data The following chart and calculations are provided to help record, calculate, and plot bore diameter data. The chart can be expanded to record as many measurement points as are required. Formulas for calculating offsets and diameter are provided, as well as a sample plot of readout data (see Figure 25 on Page 41).
  • Page 44 Figure 25 – Sample plot of readout data...

  • Page 45: Appendix C - Remote Buck-In

    Appendix C – Remote Buck-in As the distance between the laser and the near target increases with respect to the distance between the two targets, bucking-in by the close method becomes nearly impossible. A special remote procedure has been developed for these situations. The remote buck-in uses simple geometry to make the laser beam parallel to the centerline of the two targets, and then centers the beam on that line.
  • Page 46 If the calculated Set Point exceeds the linear range of the target, (for example, the A-1519 target has a range of 1.0 in. or 25 mm) the laser unit itself must be moved by the Set Point amount. New measurements must then be retaken for both targets, and a new set calculated. Figure 28 shows how to move the laser depending upon the sign of the calculated Set Point.

  • Page 47: Appendix D - T-218/T-225L Dimensions (Model 3)

    Appendix D – T-218/T-225L Dimensions (Model 3)

  • Page 48: Appendix E - T-225L Leg Dimensions/Instructions

    Appendix E – T-225L Leg Dimensions/Instructions...

  • Page 49: Appendix F - Care And Cleaning Of Target Optics

    Appendix F – Care and Cleaning of Target Optics The proper care and cleaning of optical windows and/or lenses of Hamar Laser’s position-sensing devices (targets) assures optimum performance. Contaminants on an optical surface increase scatter, absorb laser energy, and eventually degrade the accuracy of the position-sensing devices. Because cleaning any precision optic risks damaging the surface, optics should only be cleaned when absolutely necessary.
