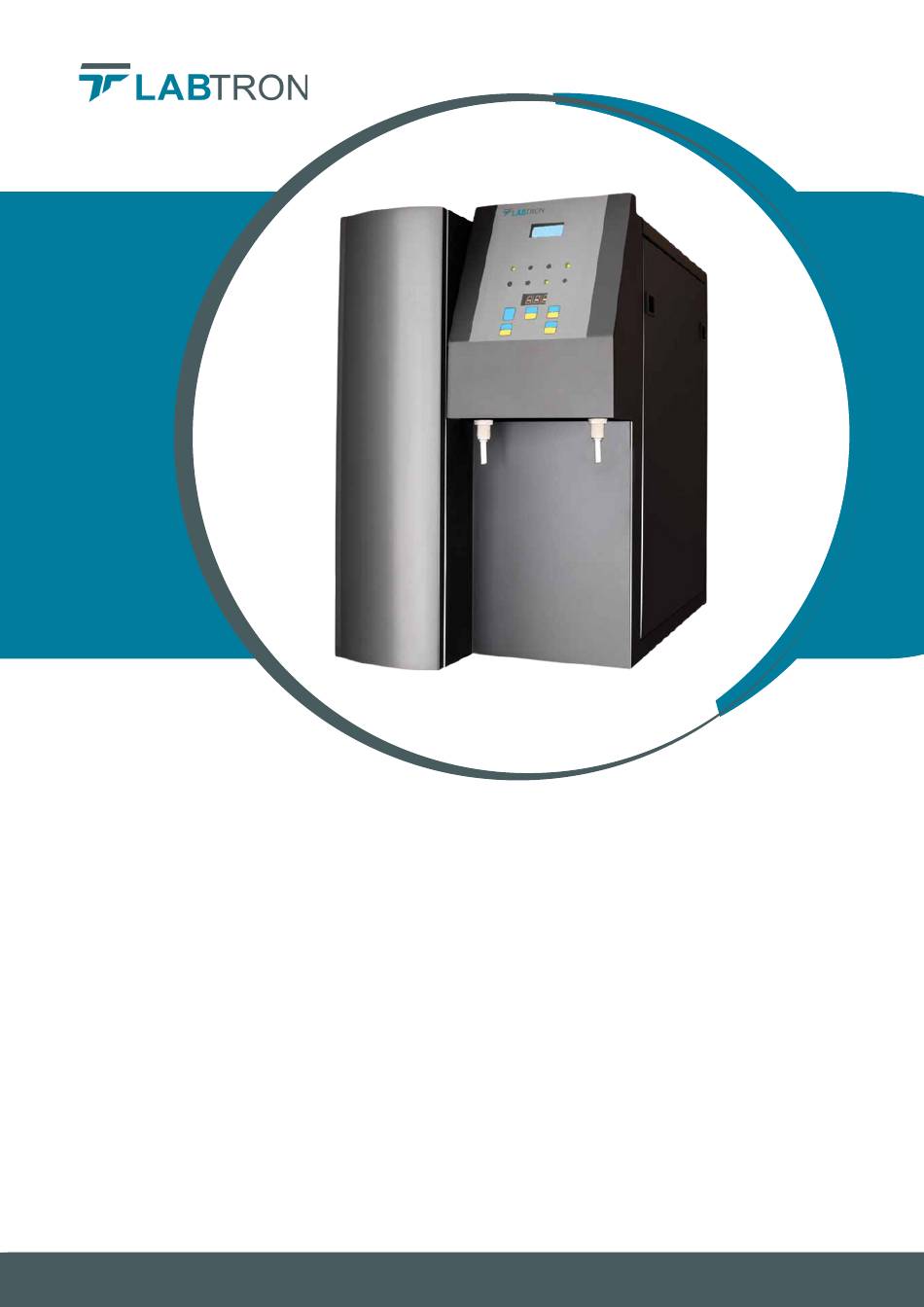

- Page 1 Type I and Type III RO Water Purification System LOTW-A10 www.labtron.com | info@labtron.com...
- Page 2 Type I and Type III RO Water Purification System LOTW-A10 Index Sr.no Title Page no Safety Measures Introduction Features Specifications Applications Instrument Introduction Installation Operations Replacement...
- Page 3 Type I and Type III RO Water Purification System LOTW-A10 1. Safety Measures This manual is designed to assist users in properly using and maintaining the equipment to ensure it remains in optimal working condition and prolongs its service life. Kindly read the instructions carefully before using the equipment, approaching it with a scientific attitude.
- Page 4 Type I and Type III RO Water Purification System LOTW-A10 2. Introduction Type I and Type III RO Water Purification System LOTW-A10 has a 30 L water tank capacity and produces ≥ 10 L of pure water per hour. The dual outlets allow users to extract Type III water from the tank and Type I water from the dispenser.
-
Page 5: Specifications
30 kg 5. Applications Type I and Type III RO Water Purification System LOTW-A10 is ideal for research and industrial use. It provides Type I water for sensitive experiments and Type III water for general lab applications, cleaning, and rinsing. -
Page 6: Instrument Introduction
Type I and Type III RO Water Purification System LOTW-A10 6. Instrument Introduction Figure-1... -
Page 7: Installation
Type I and Type III RO Water Purification System LOTW-A10 7. Installation Working Conditions of Water Purification System 1) Voltage: AC220V/50Hz, with reliable ground connection 2) Max power: 100W 3) Tap water temperature: 5－40℃, TDS: 200ppm 4) Tap water pressure: 0.15-0.3Mpa (if above 0.3 Mpa, Then the user needs to take decompression measures. - Page 8 Type I and Type III RO Water Purification System LOTW-A10 7.2.1 Installation steps Open the package and confirm the goods as shown in Figure 3, Figure 4 and Figure 5. Figure-3 Host (frame) Figure-4 Pure water tank Figure-5 1/4” Kit...
- Page 9 Type I and Type III RO Water Purification System LOTW-A10 7.2.2 Installation and operation method 1) Open the tee joint, connect one end to the tap water pipe, and connect the other end to the original tap water outlet or block it with an end cap.
- Page 10 Type I and Type III RO Water Purification System LOTW-A10 Figure-8 6) Kindly contact the signal wire (above the pure water tank), to the signal socket (rear of the main case) Figure-9 7) After installation, the machine and the site shall be clean and tidy.
- Page 11 Type I and Type III RO Water Purification System LOTW-A10 8. Operations The operation panel of the machine Figure-10 8.2 Standard procedure for operation maintenance of the machine 8.2.1 Functional specifications of buttons 1) Start: Start/Stop the machine. 2) RO FLUSH/SELECT: Manual RO membrane flush can be started and stopped manually.
- Page 12 Type I and Type III RO Water Purification System LOTW-A10 At setting the status, the following buttons can be reused: Name of buttons Functions Notes In standby mode, press the button for 3 seconds to PUREWATER/SET enter the Set After choosing the pressure control mode on the circuit board, select the high and low-pressure control points, High-Hxx, L-Lxx.
- Page 13 Type I and Type III RO Water Purification System LOTW-A10 Manual recycling Timing intake ultrapure water Flicker and display the remaining time Ultrapure Random intake for ultrapure water...
- Page 14 Type I and Type III RO Water Purification System LOTW-A10 9. Replacement Consumables Replacement Procedure Turn off the water inlet valve first and turn off the power when the low-pressure switch alarm is triggered, which can reduce the residual water in the filter and make it convenient to replace the consumables.
- Page 15 Type I and Type III RO Water Purification System LOTW-A10 Figure-11 Figure-12...
- Page 16 Type I and Type III RO Water Purification System LOTW-A10 Replacement and judging method of consumables Replacement Items Quantity Judgment Method Period Replace when the colour of the filter 5μmPP filter 1 piece 2-3 Monthly cartridge becomes deep yellow. If the tap water bleaching powder is...
