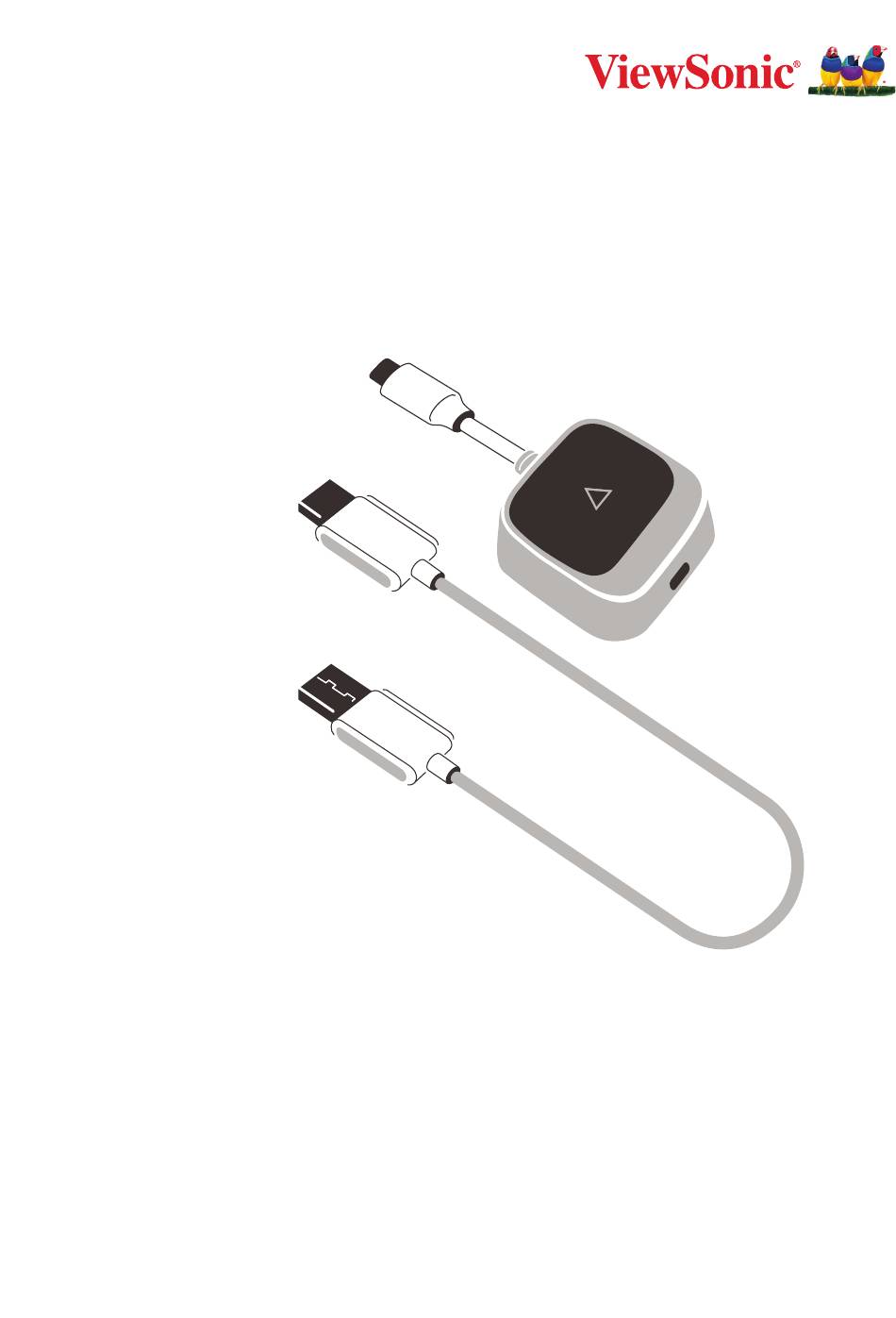

WPD-900

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.

Model No. VS20455

P/N: WPD-900

Table of Contents

Need help?

Do you have a question about the WPD-900 and is the answer not in the manual?

Questions and answers

Summary of Contents for ViewSonic WPD-900

Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
Page 3: Table Of Contents
Contents Introduction ..............4 Package Contents ....................4 Product Overview ....................5 Receiver ........................5 Transmitter ......................5 Making Connections ............ 6 Connecting the Receiver ..................6 Connecting the Transmitter..................7 Casting without a Transmitter ................8 Miracast ........................8 Windows Extend/Cast ..................... 8 Screen Mirroring for iOS ..................8 macOS Extend/Mirroring ..................
Page 4: Introduction
Introduction Package Contents Receiver Transmitter NOTE: If anything is missing or damaged, please contact your local reseller for more information.
Page 5: Product Overview
Product Overview Receiver Number Item Description HDMI Output Version 1.4; connect to a projection device. USB A Input For power input only (5V/0.5A). Reset For pairing and resetting to default settings. Transmitter Number Item Description Display input; connect to the casting device (e.g., laptop, USB C Input mobile phone, tablet).
Page 6: Making Connections
Making Connections Connecting the Receiver HDM I USB A (5V/0.5A) 1. Connect the Receiver’s HDMI Output to an HDMI port of the projector. NOTE: Ensure the projector or monitor is also turned on. 2. Plug the Receiver’s USB A Input into the USB A port of the projector that can provide 5V/0.5A power.
Page 7: Connecting The Transmitter
Connecting the Transmitter USB C 1. Connect the Transmitter’s USB C Input to a USB C port of the casting device (e.g. laptop, mobile phone, tablet). 2. Once connected, please wait for a few seconds for the casting device’s screen to cast automatically.
Page 8: Casting Without A Transmitter
Casting without a Transmitter The WPD-900 receiver supports point-to-point casting for Android, Windows, iOS, and macOS. Connect the receiver to power and the screen, then follow the below steps to cast content. Miracast If your Android devices support Smart View on Samsung, Multi-screen on Huawei, Multi-screen Interaction on OPPO, etc.
Page 9: Macos Extend/Mirroring
Mirroring XXXX-12345678 macOS Extend/Mirroring Click the icon in the top bar on your computer and select to mirror or extend the display to the display device. You can also click Use As Separate Display to extend the screen. 100% Mon 09:30 XXXX-12345678 Mirror Built-in Retina Display Use As Separate Display...
Page 10: Appendix
Appendix Specifications Category Specifications Function Transmitter Receiver Wi-Fi 5 GHz 1T1R 5 GHz/2.4 GHz 1T1R HDCP Support HDCP 1.4 HDCP 1.4 Video support up to 1080p @ 60 Hz up to 1080p @ 60 Hz Audio support 2 channels, PCM 2 channels, PCM Interface Specifications...
Page 11: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 12: Fcc Radiation Exposure Statement
FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 13: Country Code Statement
Country Code Statement For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible. IC Radiation Exposure Statement This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
Page 14: Declaration Of Rohs2 Compliance
The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
Page 15: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...
Page 16: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.
Page 17: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
