VB-WIFI-006
Wi-Fi Module
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS20299
P/N: VB-WIFI-006
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ViewSonic VB-WIFI-006
Summary of Contents for ViewSonic VB-WIFI-006
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
- Page 3 Contents Introduction ..............4 Product Overview ....................4 Front View .......................4 I/O Port ......................4 Initial Setup ..............5 Installing the VB-WIFI-006 Module ................5 Using the Device ............6 Selecting an Input Source ..................6 Appendix ..............8 Specifications ......................8 General ........................8 Antenna ........................
- Page 4 Introduction Product Overview Front View I/O Port USB Type A...

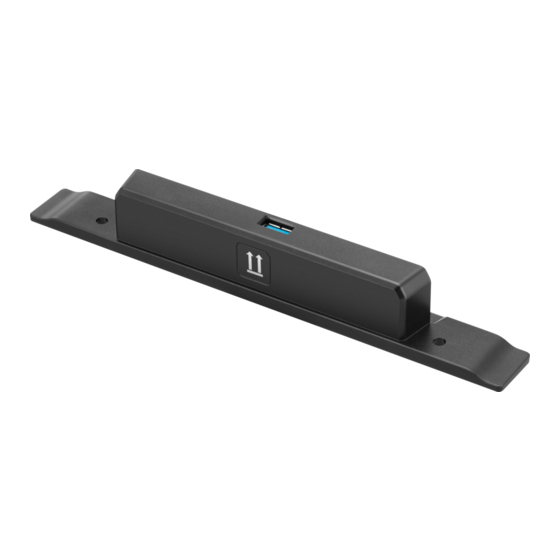

- Page 5 Initial Setup Installing the VB-WIFI-006 Module 1. Unscrew the two screws located on the bottom of the display. 2. Make sure the arrows on the module are facing outwards. 3. Insert the module into the display. 4. Further secure the module with the screws that were removed in Step 1.
- Page 6 Using the Device Selecting an Input Source The Wi-Fi settings can be accessed quickly through the Control Bar at the bottom right corner. 1. Select Wi-Fi icon. NOTE: You can also go to: Settings > Wireless & Network to open the Wi-Fi settings.
- Page 7 3. Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced settings.
- Page 8 Appendix Specifications General Item Specifications Wi-Fi Standard 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, and 802.11ax Frenquency 2.4G, 5G, 6G Hz 11b : DBPSK, DQPSK and CCK, and DSSS : BPSK, QPSK, 16QAM, 64QAM, and OFDM 11a/g 11n : BPSK, QPSK, 16QAM, 64QAM, and OFDM Modulation 11ac : BPSK, QPSK, 16QAM, 64QAM,256QAM, and OFDM : BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, OFDM,...
- Page 9 Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 10 Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Substance...
- Page 11 Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...
- Page 12 Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.
- Page 13 For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ www.viewsonic.com.cn www.viewsonic.com/hk/ 中国 (China) 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...
