VPCF5

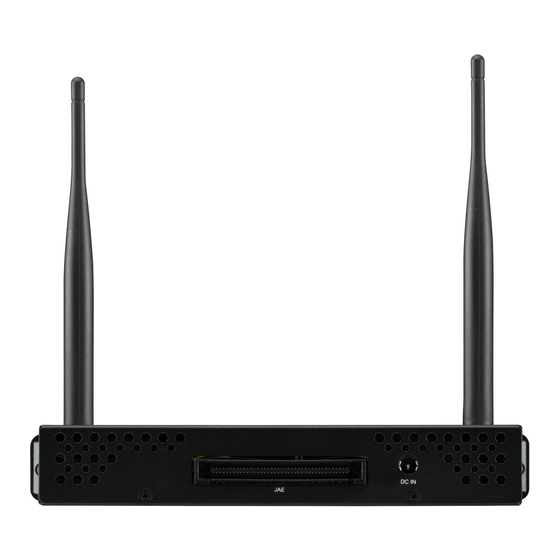

Slot-in PC Module
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19784 | VS19785
P/N: VPCF5-S55-G1 | VPCF5-S33-G1 | VPCF5-W55-G1 | VPCF5-W33-G1
Advertisement
Table of Contents
Related Manuals for ViewSonic VPCF5 Series
Summary of Contents for ViewSonic VPCF5 Series
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Table Of Contents
Contents Introduction ..............4 Product Overview ....................4 Initial Setup ..............5 Installing the VPCF5 ....................5 Making Connections ............ 6 Network Connection....................6 USB Connection ......................6 Using the Device ............7 Selecting an Input Source ..................7 IFP Series ......................... 7 CDE Series........................ 8 Appendix .............. -
Page 4: Introduction
Introduction Product Overview Number Item Description Antenna Wi-Fi antenna interface Status indicator light (Green) Mode Description Status LED Indicator light is off Green indicator light is flashing Power indicator light (Red) Mode Description Power LED Indicator light is off Red indicator light is always on Power Button Turn the slot-in PC ON/OFF LINE-OUT... -
Page 5: Initial Setup
Initial Setup Installing the VPCF5 1. Remove the slot-in PC cover of the display. 2. Using the handle of the VPCF5, carefully insert it into the PC slot of the display. 3. Secure the VPCF5 to the display with the two (2) included screws. NOTE: ... -
Page 6: Making Connections
Making Connections Network Connection To connect to the Internet or a network, connect one end of a RJ45 cable to the LAN port of the VPCF5, then connect the other end to your network. USB Connection USB peripherals such as keyboards, mice, storage devices, etc. can be connected to the VPCF5’s USB ports. -
Page 7: Using The Device
Using the Device Selecting an Input Source IFP Series To select an input source: 1. Press INPUT/ on the remote control, press the setting button on the front panel, or press the Settings icon from the toolbar to display the Input Settings menu. -
Page 8: Cde Series
CDE Series Custom To select an input source: 1. Press INPUT/ on the remote control. 2. Press ▼/▲ on the remote control to select the PC source. 3. Press OK/ENTER on the remote control. 4. Press EPG/BACK/ on the remote control to exit. NOTE: ... -
Page 9: Appendix
Appendix Specifications Category Item Specifications 1 x HDMI 1 x RJ45 (LAN) 1 x USB 2.0 (5V/0.5A) Ports 2 x USB 3.1 (5V/0.9A) USB Type C (Data only, no PD support, 5V/900mA) 1 x Analog audio-in(3.5 mm, mic-in) Dimensions (mm) 200 x 119 x 30 mm Dimensions (in.) 7.87”... -
Page 10: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and Radio Equipment Directive 2014/53/EU. -
Page 11: Para Su Uso En México
The operating frequency bands and the maximum transmitted power limit are listed below: 2412-2472MHz (Wi-Fi 2.4GHz), 5180-5320MHz (Wi-Fi 5GHz), 5500-5700MHz (Wi-Fi 5GHz), Max Output Power : under 20dBm These devices comply with RF specifications when the device is used at 20 cm from your body. -
Page 12: Declaration Of Rohs2 Compliance
Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Actual... -
Page 13: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 14: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association. -
Page 15: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn 香港 (繁體中文) www.viewsonic.com/hk/ Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
