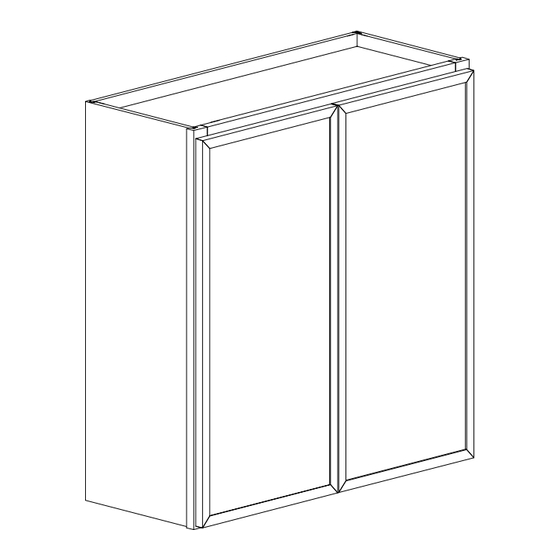

Wall Cabinet
ASSEMBLY INSTRUCTIONS
These assembly instructions are only applicable for all Wall Cabinets with three shelf
WC2442 WC2742 WC3042 WC3342 WC3642
•Assembly is made fast and easy with
Threespine
®
click furniture technology.
•Patent Protected,
www.valinge.se/patents
•Produced under license
from Välinge Innovation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CABINETS TO GO Findley & Myers WC2442
Summary of Contents for CABINETS TO GO Findley & Myers WC2442

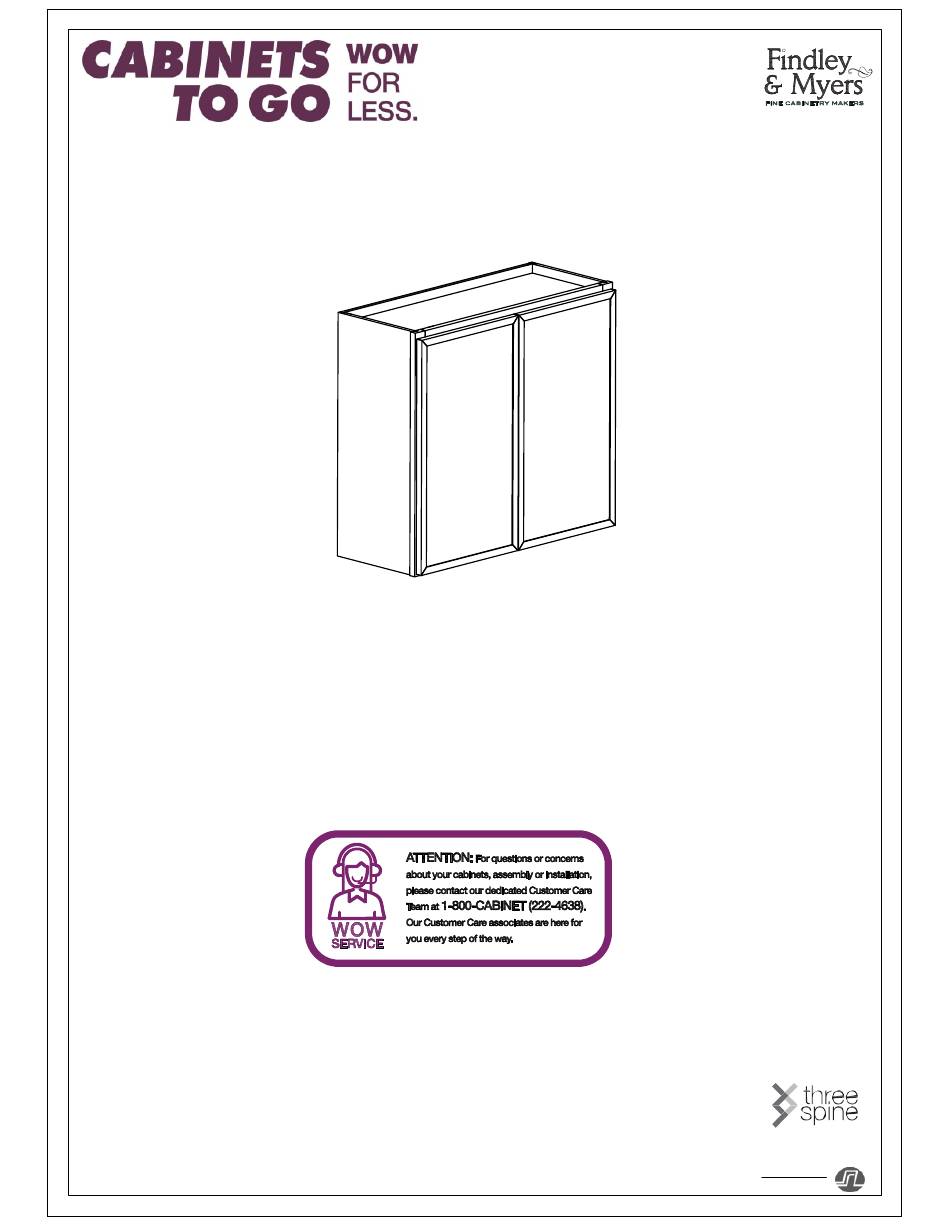

- Page 1 Wall Cabinet ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for all Wall Cabinets with three shelf WC2442 WC2742 WC3042 WC3342 WC3642 •Assembly is made fast and easy with Threespine ® click furniture technology. •Patent Protected, www.valinge.se/patents •Produced under license from Välinge Innovation.
- Page 2 General Instructions: ► Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come.
- Page 3 Instructions: ► Place the side panel (A) face down on a flat soft working surface to ensure that the face is not scratched or damaged. (Figure 1). Figure 1 Install the Back Panel: Insert the back panel (B) into the groove of the side panel (A) and click it into place.
- Page 4 5. Installing the Frame: Insert frame (D) into grooves of side panel (A) & top, bottom panel (C). Press down until they click into place. (Figure 5) Figure 5 6. Assemble 3 hinges into one door by screw driver and 6 screw 7/15" (Figure 6) Figure 6 7.
- Page 5 To install the cabinet to the wall you should use wall mount screws (f) and anchors (e) if installing directly into drywall. aintenance: ► M For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaner containing aceton, chlorine or strong bleach. Also, do not use tool as scrapers, metallic brushes, and other products which canscratch or tarnish surfaces.
