Light Kit
Greensmaster
Model No. 04500
Note:
An additional decal (Part No. 127-6126) and fuse blade (15 A) are included in this kit. These parts are
not used for the eTriFlex machines; you may discard them.
Safety

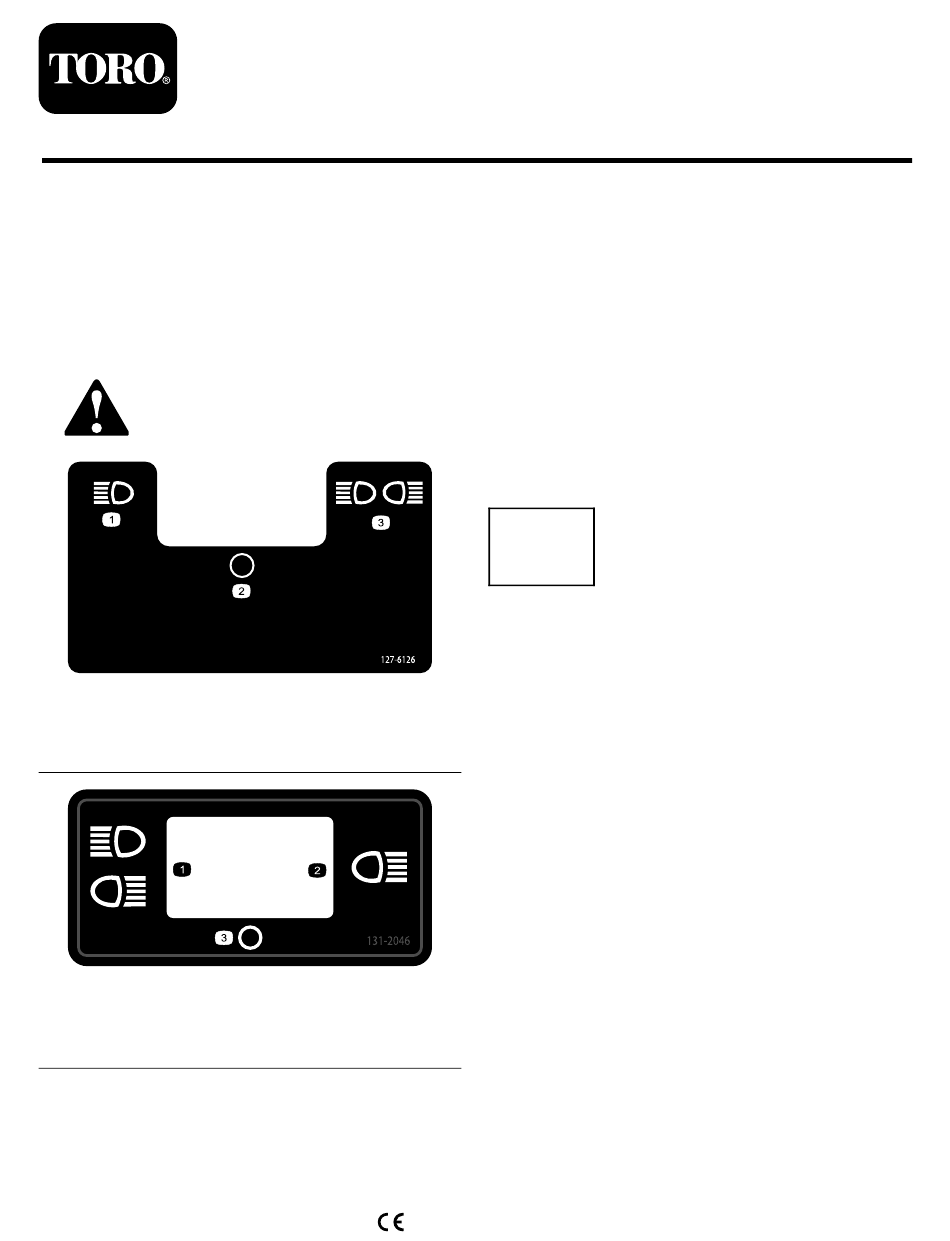

Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
127–6126
1. Headlights
2. Off
131-2046
1. Double lights
2. Single light
© 2021—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
eTriFlex 3360 or 3370 Traction Unit
decal127-6126
3. Headlights and rear lights
decal131-2046
3. Off
Register at www.Toro.com.
Installation
1
Preparing the Machine
No Parts Required
Procedure
1.
Park the machine on a level surface.
2.
Engage the parking brake.
3.
Lower the cutting units.
4.
Shut off the machine and remove the key.
5.
Disconnect the main-power connectors; refer to
your machine Operator's Manual.
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Form No. 3429-423 Rev C
Installation Instructions
*3429-423*
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toro 04500
Summary of Contents for Toro 04500
- Page 1 Light Kit Greensmaster ® eTriFlex 3360 or 3370 Traction Unit Model No. 04500 Installation Instructions Note: An additional decal (Part No. 127-6126) and fuse blade (15 A) are included in this kit. These parts are not used for the eTriFlex machines; you may discard them.
- Page 2 Use the bolt, washer, and nut included with each headlight assembly to Install the headlights as shown in Figure Installing the Lights Parts needed for this procedure: Installing the Wire Harness Light assembly Left bracket and Switch Right bracket U-bolt Parts needed for this procedure: Nut (3/8 inch) Wire harness...
- Page 3 Route the remaining wire-harness leg up through the bottom of the seat plate and following the machine wire harness towards the console (Figure In the console, connect the wire-harness connector labeled T with ARNESS the machine-wire-harness connector labeled PTIONAL ORKLIGHT Installing the Switch and Decal Remove the plug from the console (Figure...
- Page 4 Operation Connect the wire-harness connector labeled to the switch (Figure 4) and IGHT WITCH install the switch. Operating the Lights Observe the correct orientation of the switch as shown in Figure Note: To adjust the lights, loosen the mounting hardware, aim the lights as desired, and tighten the hardware.
