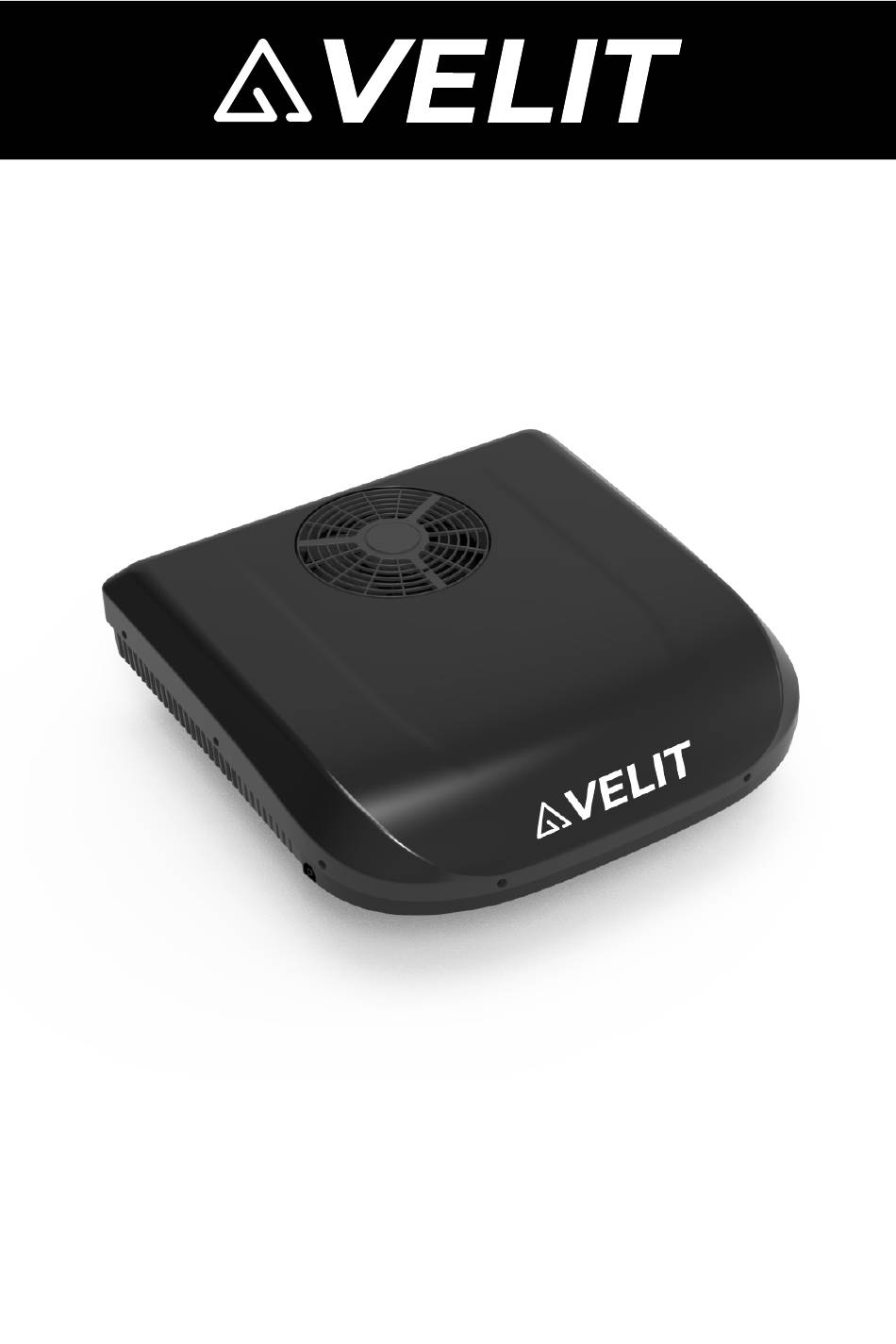

- Page 1 Rooftop DC Air Conditioner Model：3000R Instruction Manual...
- Page 2 The latest electronic version of this document is available for download at the product page. We wish you enjoy your Velit air conditioner. For any product questions or issues, you can reach out to us at support@velitcamping.com or use the online chat box at velitcamping.com.
-
Page 3: Important Safety Information
Keep electrical devices out of reach of children and do not allow them to operate the device without supervision. Only use accessories authorized by Velit. Do NOT use this unit in or near flammable environment. Do NOT let children use the unit without supervision. -
Page 4: Specifications
2.SPECIFICATIONS... -
Page 5: Mounting Bracket
3 Motorized Air Distribution Box (Optional) Outside Duct Power Cable Control Panel Wiring Harness Mounting bracket Inside Duct Air Distribution Box Control Panel... - Page 6 1. Disconnect Power Sources 2. Ensure all power supplies to the vehicle, including the battery, generator and shore power, are disconnected before starting the installation. 3.Roof Opening Requirements: a. The unit fits an existing 14 ¼" x 14 ¼" roof opening. b.
- Page 7 6.Place the sealing gasket over the opening with the adhesive side sticks to the roof. If necessary, trim the sealing gasket to match the contour of the roof ribs for a precise fit. 7.Stick support foam blocks around the perimeter of the AC unit to provide additional support.
- Page 8 8. Install the outside duct onto the AC unit with eight M4*13 self-tapping screws 9. Connect the inside duct to the air distribution box(ADB) frame with eight M4*16 self-tapping screws...
- Page 9 10. Insert four M8 threaded rods into the holes marked #10 on the AC unit. 11. Tighten the non anti-slip bolts all the way down to secure the threaded rods 12. Carefully place the AC unit over the roof opening 13.
- Page 10 15. Connect the AC unit to the power supply and route the control panel wiring through the ADB frame. 16. Attach the ADB frame to the mounting bracket using four M5*16 screws.
- Page 11 17. Secure the ADB cover to the ADB frame with six M5 self-tapping screws...
- Page 12 18. Attach the intake grill to the ADB, ensuring it is securely in place. 19.Connect the wiring to the control panel and mount the control panel onto the intake grill.
-
Page 13: Operation
4 OPERATION 4.1 Modes Mode changes only the compressor speed, Fan speed can be adjusted separately. Qutput from low to high: Sleep： ECO： Cooling： TURBO： 4.2 Control Panel 1. Power ON/OFF: Short press to turn on unit Long press 2s to turn off Short press to turn off/on display while the unit is running 2. -
Page 15: Under/Over-Voltage Protection
Long press the Mode Switch to edit low voltage protection, Press Fan Speed + to increase cut-off voltage. Press Fan Speed - to decrease cut-off voltage, Press Temperature + to increase recover voltage. Press Temperature -to decrease recover voltage. 4.7 Remote Controll App Search for velit in App sotre / Google Play... -
Page 16: Error Codes And Troubleshooting
5.Troubleshooting Error Codes and Troubleshooting Code Cause Troubleshooting Use a flathead screwdriver to pry open the display panel. Ensure Ambient temperature sensor the white 2-pin connector is seated properly. Replace the sensor or (White 2 pin connector) the display panel if needed. Evaporator temperature Use a flathead screwdriver to pry open the display panel.
