Art. 2321S
Art. 2321S
Power supply
AC INPUT: 230V
DC OUTPUT: 35V
0
230V
A

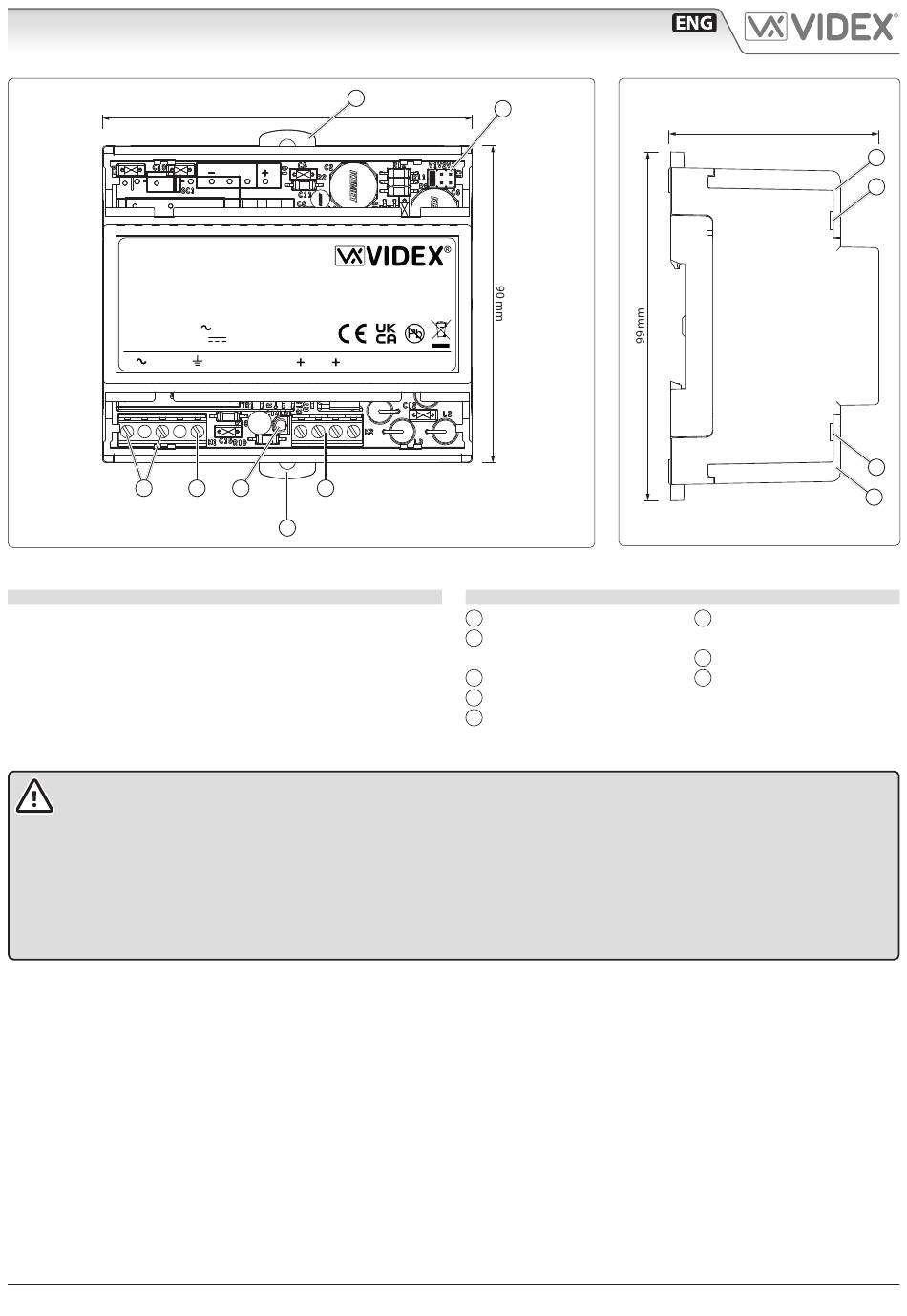

Fig. 1 Top
DESCRIPTION
Audio/video power supply for VX2300 system, 1 entrance and
maximum 20 devices.
Power supply 230 Vac ~ 50/60 Hz, output voltage 35Vdc/0.4A.
3 level voltage output adjustment (35Vdc, 36Vdc and 37Vdc).
Power ON LED to indicate power supply status.
Wall or DIN rail mountable (6 modules).
Dimensions: 105x90x59.5 mm.
WARNING!
CONNECTION TO MAINS
The system must be installed only by a qualified eletrician and in accordance with national rules in force and installation
diagrams (if provided).
In particular we recommend that:
• The system is connected to the mains through an all-pole circuit breaker which has a contact separation of at least 3mm
in each pole and shall connect all poles simultaneously
• The all-pole circuit breaker shall be placed for ease of access and the switch shall remain readily operable.
Only for indoor use in dry places. Do not exceed the maximum power load indicated.
Art. 2321S - Installation instructions
Audio/video power supply
E
105 mm
50/60 Hz 0.15 A
0.4 A
BUS
B
C
D
E
F
Made in Italy
LEGEND
Mains input terminal
A
Ground connection
B
terminal
Power ON LED
C
BUS connection terminals
D
Fixing clip
E
- 1 -
59.5 mm
Fig. 2 Side
Voltage output
F
adjustment jumper
Terminal covers
G
Terminal cover clips
H
66251305 - V 1.1 - 28/02/25
G
H
H
G
