Packard Bell airFrame M34000-J1 User Manual

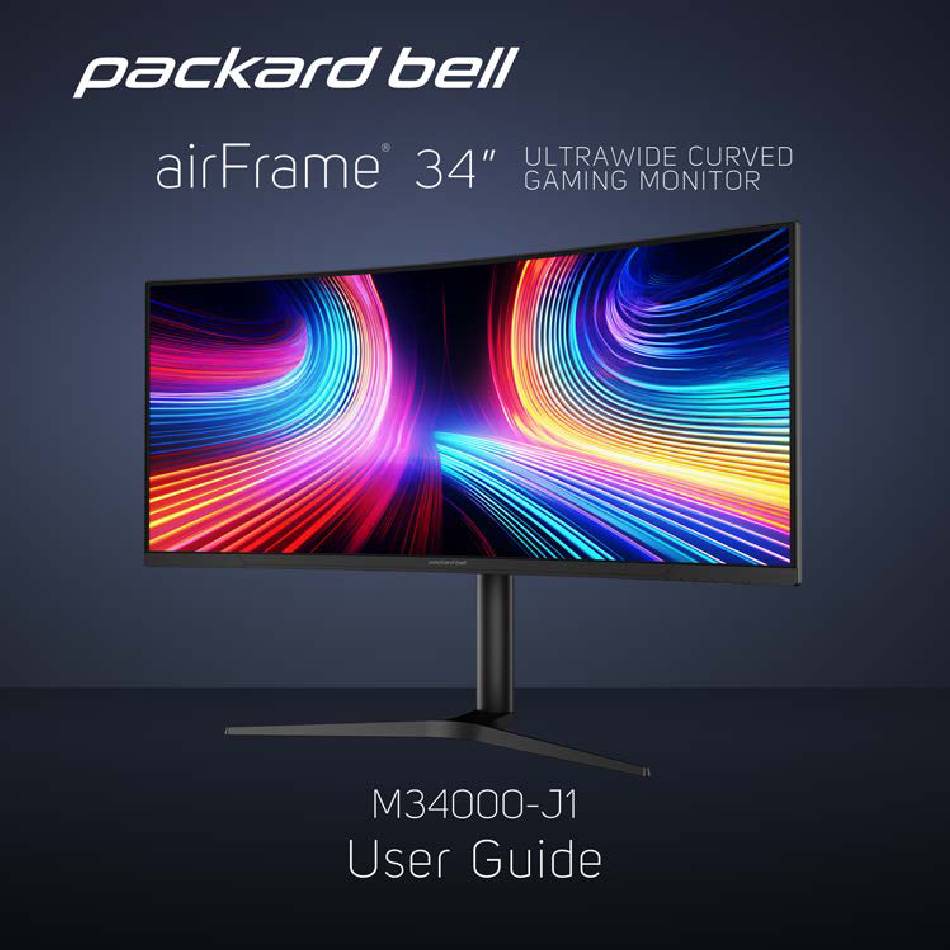

Packard Bell airFrame M34000-J1 User Manual

34" ultrawide curved gaming monitor
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the airFrame M34000-J1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Packard Bell airFrame M34000-J1

Summary of Contents for Packard Bell airFrame M34000-J1

  • Page 2 In the Box 34” Monitor Stand Arm Stand Base 34” ULTRAWIDE CURVED GAMING MONITOR M34000-J1 User Guide HDMI Cable DP Cable Power Adapter User Guide...
  • Page 3 Buttons, Ports & Hardware Monitor (front view) Power Main Menu / Select Exit / Previous Brightness Increase / Scroll Up Brightness Decrease / Scroll Down NOTE: To customize the monitor’s settings, press the “M” button.
  • Page 4 Monitor (bottom view) 3.5mm HDMI Ports Power Port Audio Out DP Port USB Type-A Port...

  • Page 5: Assembling The Monitor

    Assembling the Monitor 1. Remove the screw from the stand arm. 2. Connect the stand base to the stand arm, then insert and tighten the screw as shown below. Stand Arm Stand Base Screw...
  • Page 6 3. Insert and snap in the assembled stand to the monitor and make sure it is securely connected and locked into the monitor. Monitor Insert and snap in the assembled stand to the monitor You hear a click sound when the stand is securely locked into the monitor.

  • Page 7: Using The Monitor

    Using the Monitor Connect the power adapter to the monitor's power port and a wall outlet as shown below. Monitor (bottom view) Power Port Wall Outlet Power Adapter...
  • Page 8 Monitor (bottom view) HDMI Port HDMI Port HDMI Port DP Port HDMI Cable NOTE: To reach the maximum refresh rate of 165Hz, please use the DP port and included DP cable. Check if your hardware supports DP connection.
  • Page 9 Specifications & Legal Information Speci cations: – Display Size: 34” Ultra-Wide – Contrast (Typical): 4000:1 – Resolution: 3440 x 1440 – Viewing Angle: 178˚ – Aspect Ratio: Widescreen 21:9 – Curvature: 1800R – Brightness (Typical): 300 cd/m – Ports: HDMI (v2.0) x2, DP (v1.4), USB (Type A), 3.5mm Audio Out –...

  • Page 10: Limited Warranty

    Limited Warranty 1 Year Limited Warranty Territory: United States LIMITED WARRANTY TO ORIGINAL CONSUMER This product as supplied and distributed new by an authorized retailer is warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows: To obtain warranty service: •...
